Debuting to the world at the 2021 Fort Lauderdale International Boat Show, the 35R, is the culmination of the renowned Revolution series designed by Evan Marshall and Arrabito Naval Architects.

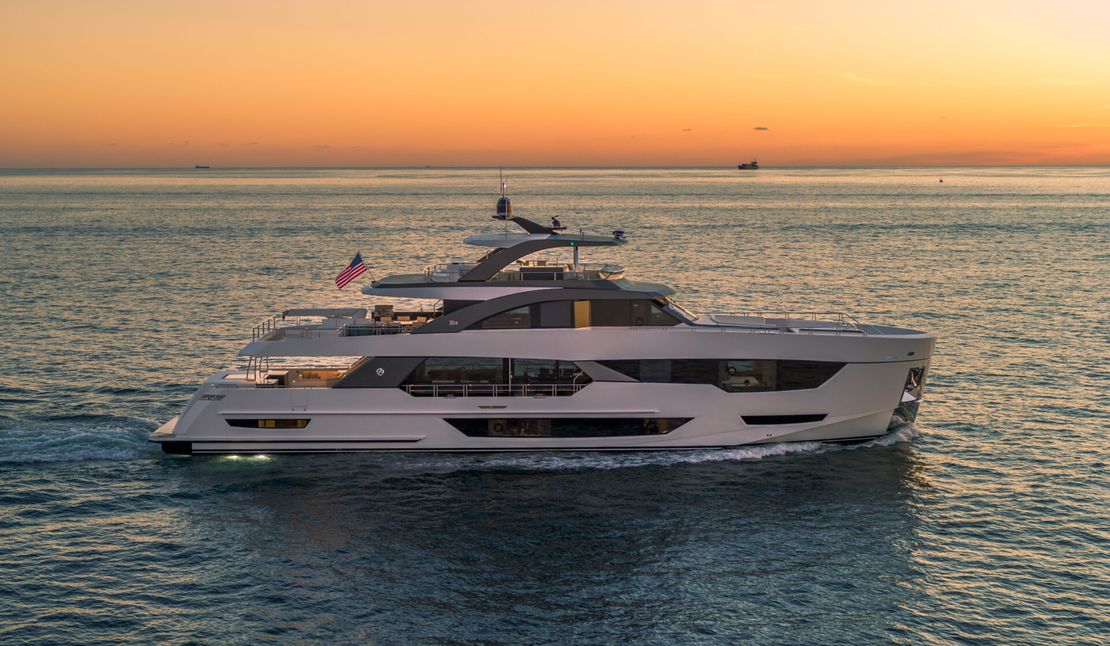

The Ocean Alexander 35R motoryacht is more than the embodiment of style and performance. With gross tonnage just under 300, the livable space and well-established layout are remarkable.
Unwavering safety. Luxurious spaces. Breathtaking views. It’s an engineering masterpiece that glides into a slip with ease. Prepare to blow everyone away at the dock with her sleek new design. The full-width main deck expands living space without compromising the incredible performance and efficiency we’re known for.
It’s your 116’ escape from it all and your entry into exquisite freedom. It’s a lifestyle that offers the epitome of pampered privacy. In a word…it’s Revolutionary.
LAYOUT & VESSEL DIAGRAMS
Highlighted Details & Specifications
Construction
- General:
- The Yacht is constructed in high-density closed-cell structural foam. High density foam allows for high temperature advantages in thermal and acoustic insulation.
- Longitudinal and lateral fiberglass foam-core stringers.
- Fiberglass with infusion lamination manufacturing technology, increases strength by 20% and
- reduces weight by 18% compared to hand-layup.
- Reinforced collision bulkhead.
- Cross-knit carbon fiber in high stress areas to increase structural integrity and torsional strength.
- Water-tight bulkheads with sound proofing for engine room.
- Ocean Alexander employs various techniques to reduce sound and vibration. Some of these
- techniques include multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible isolation mounts for controlling sound and noise transmission.
- Painted exterior surfaces with professional grade epoxy-based primers and Alexseal polyurethane paint resulting in the highest gloss retention compared with gelcoat or other paint brands.
- All exterior hardware to be 316 stainless steel or per manufacturer requirements.
- Aluminum components meet marine grade 5086 or 6061 specification.
- Engine foundation: Main engine stringer will be constructed from stainless steel plates custom
- formed to encapsulate over engine structural stringers. Allows for industry leading support, and
- isolation.
- Frameless windows.
- Hull / Bottom:
- Interior structural components all bonded to hull.
- Three coats of “self-polishing” antifouling bottom paint shall be applied on three anti-blister epoxy
- barrier coats, “Seahawk” paint or equal.
- Rub rail w/ 316 stainless-steel striking plate.
- Bronze through-hull fittings.
- Show more
Mechanical
- Main Engines:
- MAN® V12 1900 HP engine “MAN Gold Standard” includes: 60-month warranty on main components: crankcase, crankshaft, connection rods, flywheel.
- Stainless-steel engine beds and stainless-steel removable rails on side of engines.
- Automated Delta-T® intake/exhaust fans with variable frequency drives shall be mounted to
- facilitate the intake and/or exhaust of air through the machinery spaces and providing a high air exchange rate. Air intake & exhaust ducts shall have fire dampers installed with manual and automatic triggering that shall be tied into the machinery shut down circuits.
- Delta-T® moisture eliminators shall be installed at front of intake and exhaust ducts.
- Delta-T® fans for engine exhaust located on superstructure vs. hull side. Maximizes water protection and salt spray intrusion into engine space, extending life of engine room components.
- Ocean Alexander employs aerospace grade “autoclave” to make “hard coat” exhaust. Further, AL- 6XN alloy is used (also used in Saturn V rocket nozzle) for spray ring in exhaust system to lower heat transmission) Ocean Alexander is unique in utilizing Military standards that ensures optimum and sustained performance in its exhaust system.
- Engine raw water-cooling using cupronickel 90/10 which offers superior corrosion resistance and inherent bio-antifouling.
- Shafting / Propellers / Steering:
- Ocean Alexander designed oversized shafts, rudder, and other drive train systems typically one- class larger than the competition. This results in superior handling and longevity in the Ocean Alexander drive-train system.
- High performance, computer designed and machined Nibral propellers.
- Twin Disc® hydraulic steering system.
- Stainless-steel rudders w/integrated zinc plates.
- Windlass / Mooring:
- Dual (2) hydraulic vertical anchor windlasses w/ remote foot switches.
- Dual (2) 350 lbs. high-holding power anchors. The anchor’s chain consists of 250’ on each side,
- made of 12.5mm, attached to the anchors with stainless-steel high-tensile swivels.
- Hands-free anchor chain wash system. Automatic operation for freshwater cleaning of chain during
- anchor operation.
- Two 1700W, 24VDC motor capstans on aft deck, with control switches.
- Air Conditioning:
- Dometic® chilled water system air conditioning system, rated for “Extreme Tropical Climates” (with reverse cycle heat for operation down to 40°F water temp).
- Refrigerant type is accepted worldwide under the Montreal Protocols.
- Dedicated engine room air conditioning.
- Ocean Alexander Clean Air System incorporates Nano-mesh UV sterilization technology to remove up to 99.9% of bacteria, fungi, mold, virus, fumes and odors. System has no moving parts, is completely silent and ozone free. Ensures fresher, cleaner, and healthier air onboard.
- Other Notable Features:
- Heavy-duty commercial grade pantograph windshield wiper & washer with intermittent function.
- BuellTM heavy-duty, 3-trumpet horn.
- Fireboy (or equivalent) engine room fire extinguisher system with engine-shutdown feature.
- Dedicated stainless-steel work bench with vice, Snap-on tool chest, and storage.
- Washer and dryer in work shop.
- Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free.
- Show more
Plumbing
- Fresh Water System:
- 316 stainless-steel water tank with sight gauge, tested to RINA standard.
- HeadhunterTM fresh-water system.
- Freshwater wash down at bow, stern, and upper deck.
- Two dockside water inlet connections.
- One (1) 100-gallon hot water heater with high density insulation and dual high efficiency heating elements that speed heating by 50%.
- Fuel System:
- Marine grade aluminum fuel tanks with sight gauges and high- & low-level alarms, welded and pressure test to RINA standard. RINA Pleasure Yachts 2021 _Pt. B Ch.1 Sec.4.
- Stainless-steel fuel piping system.
- Fuel transfer pump.
- Fuel tank vent breather with breathing capacity fulfils RINA requirements. Provided with an easily cleaned stainless steel (AISI 316) gauze, which functions as a flame arrester
- Show more
Electrical
- AC/DC System:
- OctoPlexTM NEMA 2000 electrical safety/security control system. Based on aerospace technology for remote activation, control and status reporting of all AC and DC breakers. Monitors all power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication. Brown-out capabilities provides sensors for main doors, tank level, bilge, and battery monitoring of current, voltage and temperature.
- This security/safety automatic monitoring and alert capabilities include using Apple iPad or Android for remote access to operate, view, and arm OctoPlexTM data and navigation system with remote notification accessibility.
- Shore power connections: Two CM-8 100Amp cable master with 120’ cables with Iso-boost which manages voltage drops due to shore power by boosting output voltage, thus keeping electrical system stable.
- Lightning protection system. Lightning arrestor pole installed on mast with dedicated ground cable to grounding plate attached to underwater hull surface. Minimizes potential lightning strike damage to yacht electrical and critical systems.
- Navigation Package:
- Garmin 8700 Series Black Box with (3) 24” touch screens.
- Garmin GRID remote input device installed on helm chair.
- Garmin 25KW Open Array Radar.
- Garmin Autopilot GHC.
- Garmin VHF and Card Reader.
- Garmin Blackbox depth sounder.
- Garmin AIS with NMEA GPS.
- Garmin Marine Camera (2 in engine room and 1 aft deck).
- KVH® TracVision® UHD7 satellite TV antenna.
- Ritchie Compass 5".
- iPad with built-in Garmin App for navigational control/viewing via iPad.
- Show more
Accommodations/Interior & Exterior Details
- Interior / Exterior:
- Yacht quality Italian door hardware.
- Windows with dramatic architectural details allowing for 28% greater visibility and incoming natural light.
- Hardtop with dedicated custom stainless-steel ladder to navigational electronics.
- Elliptical 316 stainless-steel handrails & stanchions.
- White non-skid decks.
- 316 stainless-steel cleats.
- One fiberglass flagpole at stern.
- Side boarding gates in cockpit.
- Flush-mounted deck lights.
- Sun pads at bow and Sky Deck
- Stone-topped wet bar with sink, refrigerator, and icemaker on aft main deck, aft bridge deck, and sky deck.
- Ten-person dining table with chairs on aft bridge deck.
- Two custom L-shape settees at sky deck. Port-side settee built with tilting back rest that articulates to face forward or aft.
- Elka shower rod with flush connection at swim step.
- Single manual helm seat at steering station.

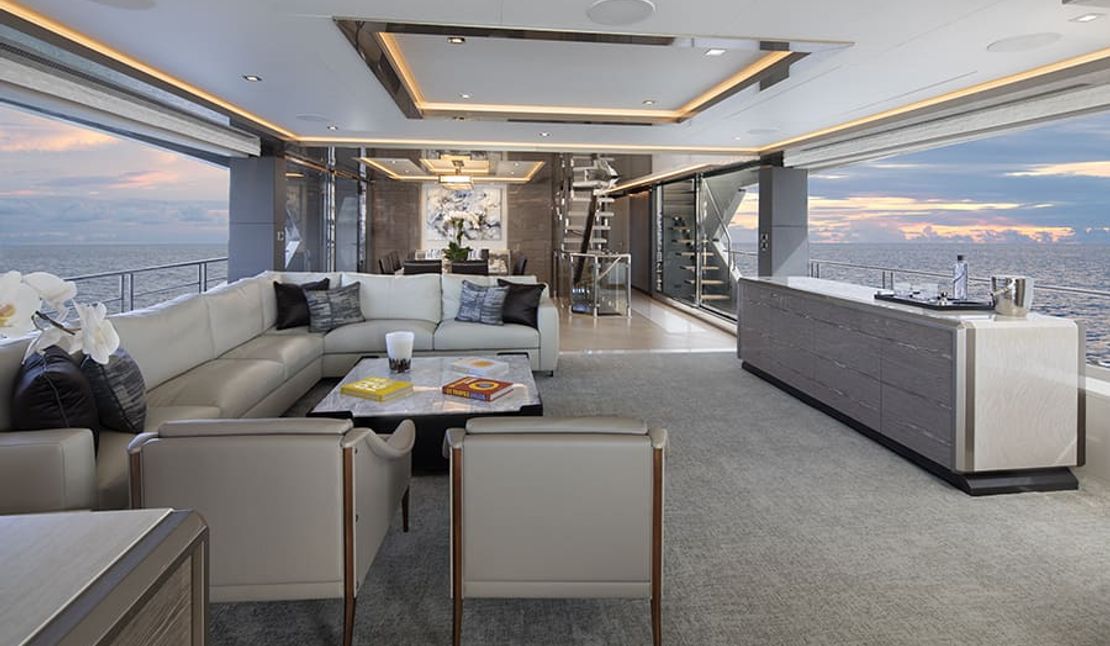

- Salon:
- Custom-designed furniture and sofa.
- Custom-designed window mullion with ceiling treatment.
- Custom-designed salon table.
- Decorative ceiling treatment.
- Stone countertop at wet-bar and cabinets.
- Cabinet including wet bar, fridge, and ice maker.
- Dining Room:
- Room divider cabinet fitted out for storage.
- Adjustable shelf tracks and dividers installed for china, glass, and silver storage.
- Ten-person dining table secured with chairs.
- Day head with sink and cabinet.
- Galley:
- Lacquered paneled cabinetry with positive-latch doors.
- Galley storage cabinetry w/hidden hinges.
- Stone countertops.
- Blanco® stainless steel kitchen sink.
- Vent a Hood®, wall mount range hood.
- Wolf® 36” induction cook top.
- Wolf® 30” electric oven.
- Sub-Zero® 36” refrigerator.
- Sub-Zero® 30” freezer.
- Whirlpool® trash compactor.
- Wolf® microwave with trim kit.
- Miele® dishwasher.
- Whirlpool® garbage disposal.
- Scotsman Brilliance® gourmet clear ice maker. Crystal-clean, odorless ice with unique ice cube shape won’t clump or dilute drinks.
- Skylounge:
- Custom-designed furniture and sofa.
- Full height manual glass sliding door on aft bulkhead as per plans.
- Custom settee couch.
- Dayhead.
- Drawer refrigerator/ice maker under counter.
- Pilothouse:
- Wood and padded leather control console with steering, engine controls and electronic instruments.
- Ship’s alarm panel for smoke, bilge, and tank monitoring.
- Red light for nighttime running.
- Navigation area/ship’s office with file drawers.
- Forward windows with four windshield wipers with freshwater nozzles.
- Port and starboard doors to exterior bridge deck, flush in house side.
- Radio desk & chair.
- Full-height storage locker.
- Master Stateroom:
- King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement).
- Two nightstands with stone countertops.
- Vanity table.
- Cushioned settee.
- Walk-in closet on each side of stateroom (one featuring hidden safe for valuables)
- Custom large shower, fitted with tempered glass enclosure with securing device, door will be stainless steel hinge.
- Jacuzzi tub forward.
- Two vanities and wood base cabinets, lockers, and drawer below with satin finish, w/mirrors above and stone top.
- VIP & Guest Staterooms:
- Queen-size berth with innerspring mattress and storage beneath, (2 twin berths for guest staterooms).
- Headboard finished in upholstered fabric per interior designer's spec.
- Nightstands with drawers.
- Dressing mirror.
- Vanity/dressing table.
- Hanging locker with lighting.
- Privacy locksets.
- VIP & Guest Stateroom Ensuite:
- Vanity with vessel sink having cabinet below and mirror above.
- Head flooring selected stone.
- Shower and floor surround to be faced in stone per selected option, fitted with tempered glass enclosure with securing device.
- Heads:
- Custom-made seamless fiberglass stall shower w/ one-piece glass door. Reduce mildew by providing a clean, easily disinfecting wipe-down surface.
- Air extraction in each head by low noise extraction fans.
- TecmaTM Marine toilet system throughout.
- Stone countertops and back splash in heads with bone china sink.
- Beach Club:
- L-shaped settee.
- Cabinet including wet bar, refrigerator, and ice maker.
- Dedicated air conditioning.
- Sliding door entrance.
- Fitness Center/Storage Room:
- 13’ x 7’ room with private head and shower.
- 40” TV mounted on wall.
- Custom towel racks and storage shelves.
- Fitness equipment supplied by owner.
- Window on starboard side provides great visibility and natural light.
- Crew Quarters:
- Kitchenette (sink, microwave, cooktop, and refrigerator).
- Storage locker in each crew stateroom.
- Settee with table and storage beneath seating.
- Three crew staterooms: captain and two high-low bunk staterooms.
- Captain quarters includes desk and N2KView linked Apple iPad for systems diagnostics/alerts/ settings.
- Commercial-grade washer & dryer.
- Crew quarters with private head and shower.
- Turn Key:
- Safety first aid kit.
- Fenders, lines, flare kit, throw ring, fire extinguishers, bell.
- Wheel Puller for ship propellers.
- 1 x 16-person life raft.
- Bed linens for Master (King 2x), VIP (Queen 4x) Guest (Single 8x) with pillows cases.
- Bath robe and bath towel set (bath towel/hand towel/wash cloth) – 2 sets per stateroom.
- Dinner china including dinner/salad/dessert plates, soup bowls, tea cup and saucers, casserole
- dish, salt & pepper shakers.
- Flatware including steak knife, dinner knife, fork, spoon and dessert/teaspoon, salad forks, serving
- spoons & fork.
- Table placemats, napkins, water/white/red/champagne wine glasses.
- Galley cookware/pans.
- Toaster, electric mixer, measuring cup, rubber/metal/ plastic spatulas, mixing bowls, chef knives, cutting boards, coffee machine, iron.
