Description & Details
The Tiara Sport LS is the reinterpretation of luxury sport yachting, a fusion of sophistication with the demands of day yachting. Walk-around capabilities lead you to multiple social zones or right to the water for your favorite activity. An outdoor galley provides space to entertain guests. You’ll find luxury lounging via convertible sun pad, elegant cabin and aft cockpit areas. Below deck, find accommodations where you can easily overnight in the well appointed cabin.
Traditional, nautical accents combined with modern elements and upholstery details elevate the overall sport form of the LS product. The elevated upholstery includes all new bases, stitching, color accents and materials that highlight and complement the athleticism, design and use of the product.

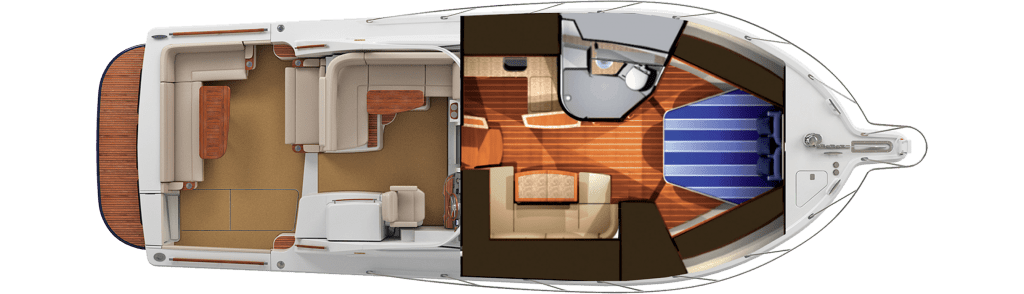

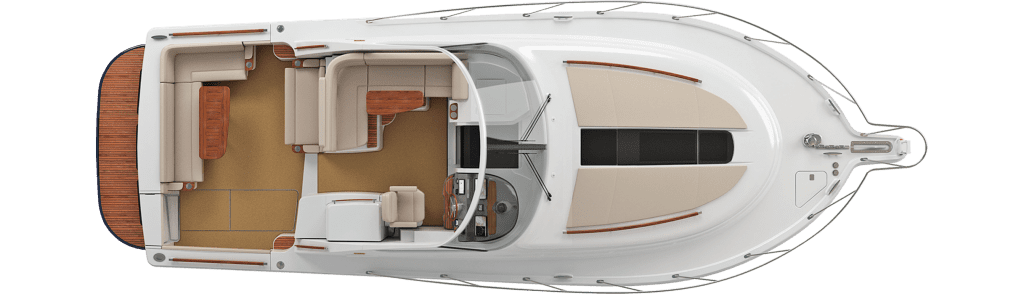

LAYOUT & VESSEL DIAGRAMS
Highlighted Details & Specifications
HULL AND DECK FEATURES
- Tiara Yachts' transferable limited warranty: Five (5) years on hull and deck; Two (2) years on accessories.
- Hand Laminated Hull with Gelcoat Outer Layer, Balsa Cored Hullsides, Engineered Fabrics and Premium Resin
- Hand Laminated Deck with Gelcoat Outer Layer, Balsa Cored Walking Surfaces, Engineering Fabrics and Premium Resin
- Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
- 5 Ply Resin Infused Composite Transom
- System with Patented Transom
- Reinforcement Grid
- Bronze Seacocks on all Underwater ThruHull Fittings
- Stainless Clad Stalon Fittings on all aboveWaterline Thru-Hulls
- Molded One Piece Deck and Cockpit Liner with Tiara Custom Diamond Pattern NonSkid
- 316L SS Opening Port Light with Screen on Console to Starboard
- High Density White PVC Rubrail with Solid 316L SS Insert, Molded Rubrail Corners, 316L SS Transom Cap and Hand Laminated Quarter Fenders
- 10” Stud Mounted Cleats (2) on Stern and 10” Pop Up Cleats at Midship and Bow (4)
- Self-Draining Cockpit
- Show more
HARDTOP FEATURES
- Molded Fiberglass Hardtop with Integrated Visor
- Custom Windshield System with Tempered Curved Windshield, Tempered Side Glass and Fiberglass Frame
- LED Navigation Lighting
- Hardtop Skylight with Fixed Tempered Glass Port and Starboard, and Flush Mount Tempered Glass Bomar Hatch on Center
- Four (4) LED Overhead Lights
- Multi-Color LED Dramatic Lighting with Remote Control
- Show more
FOREDECK FEATURES
- 1 1/4” Welded 316L SS Low Profile Foredeck Bow Rail
- Flush Mounted Integral Anchor Locker with Fiberglass Lid and Overboard Drain
- Integrally Molded Thru-Stem Anchor System
- Horizontal Anchor Windlass with Switch at Helm and Remote Switch at Anchor Locker
- 22lb 316L SS Plow Style Anchor, G-4 Chain, 200’ of 1/2” x 8 Plait Rode and Self-Righting Swivel
- 316L SS Through Stem Anchor Roller with 8” Mooring Cleat, Safety Lanyard and Aluminum Backing Plates
- Wrap Around Forward Bow Seating with Moveable Armrests, Integrated Drink Holders, USB Charging Ports, Storage Below and Weather Cover
- Under Gunnel Storage for 10" Fenders (2)
- Show more
TRANSOM FEATURES
- 316L SS Framed Dual Entry Transom Doors
- Integrated Transom Platform Extensions Outboard of Engines
- Telescopic Boarding Ladder Mounted in Port Hull Platform Extension
- Recessed Transom Shower with Hot / Cold Mixing Valve and Pull Out Sprayer; Note: Hot water only available when Water Heater Option is Equipped
- Molded Non-Skid Step in Splashwell for Athwartship Access and Integrated Rigging
AFT COCKPIT FEATURES
- Manual Rotating U-Lounge with Teak Table, Cup Holders (4), Storage Below, Flush Mounted Teak Decking and Weather Cover
- Multi-Color LED Dramatic Lighting with Remote Control
- Cockpit Machinery Access Hatch
MID COCKPIT FEATURES
- Molded Fiberglass Aft Tilting Helm Console with Instrumentation Visor, Electronics Mounting Surface, Fold Out Fiberglass Foot Rest Platform, Dual USB Charging Outlet, 13.5" Steering Wheel, Push Button Switches and Safety Kill Switch with Lanyard
- Teleflex Tilt Sport Helm
- 316L SS Cup Holders for Helm and Aft Facing Seats
- Flush Mounted Teak Decking At Helm
- Port Fold-Down Footrest for Port Companion Seat
- Molded Acrylic Cabin Access Door with Locking Latch
- Centerline Helm Seat With Electrically Actuated Fore & Aft Adjustment and Flip Up Bolster and Weather Cover
- Dedicated Storage Box Beneath Helm Seats
- Port and Starboard Companion Seats with Flip Up Bolster
- Port Entry and Egress Platform with Safety Handrail for Raised Dock Access
- Port and Starboard Aft Facing Seats with Drink Holders (2) and Storage Below
- Mid Cockpit Galley: Corian® Countertop, SS Sink with Fresh Water Faucet and Corain® Cutting Board, Removable Trash Can with Corian Lid, 316L SS Grab Rail, 120V/12V Dual Voltage 2.6 cu. ft. Vitrofrigo® Drawer Unit Refrigerator, Storage Drawer Below Countertop, 120V Outlet with GFI Protection
- Storage Cubby Forward
- Port Cedar Backed Hanging Locker
- Microwave
- Marine Air Systems® 6,000 BTU Air Conditioning System for Cabin and Head
- 28" LCD TV with Blu-Ray DVD Player and Entertainment Center Storage
- Trash Can
- Show more
INTERIOR GROUP
- Architectural Teak and QTR Beechwood Gray Wood
- Solid Teak Cabin Steps and Floor
- 120V Outlets in Cabin (2) and Head (1)
- 12V LED Lighting in Cabin (7) and Head (4)
- Three (3) Throw Pillows and Two (2) Shams
Interior Cabin
- Full Fiberglass Cabin Deck Liner with Sound Dampening Insulation
- Full Fiberglass Hull Liner with Sound Dampening Insulation
- Full Berth with Headboard
- Storage Drawers(3) Below Berth
- Storage Cubby Forward
- Port Cedar Backed Hanging Locker
- Microwave
- Marine Air Systems 6,000 BTU Air Conditioning System for Cabin and Day Head
- 29" LCD Tv with Samsun Blu-Ray DVD Player and Entertainment Center Storage
- Trash Can
- Show more
HEAD FEATURES
- Full Fiberglass Private Head Compartment with Non-Skid Floor
- Fiberglass Stall Shower with Curtain and Sump Pump
- Full Frame Door
- Corian® Countertop with Ceramic Sink and Hot/Cold Faucet
- VacuFlush® Toilet
- Lighted Upper Vanity with Mirror
- Lower Vanity Cabinet with Drawer Storage
- Exhaust Fan
- Air Conditioning Vent (Controls in Interior Cabin)
- Show more
INSTRUMENTATION, SAFETY & EQUIPMENT
- Tiara Custom 12V DC & 120V AC Electrical System with Master Distribution Panel in Interior Cabin
- Two (2) 120V AC 30 Amp 50' Dockside Power Cords
- Cable TV inlet/outlets with 65' Dockside Cord
- Onan® 5 kW Diesel Generator with Sound Shield & Helm Indicator
- TV & AM/FM Radio Antennas
- 12V Multiple Battery Bank System with Three (3) Engine Batteries and Three (3) House Batteries
- Electrical Bonding System
- Zinc Sacrificial Anodes
- Two (2) Isolation Transformers
- Tiara Sport Glass Cockpit Integrated
- Electronics Package: One (1) Garmin® 16" GPSMAP Display, One (1) 600 Watt Transducer, One (1) Yamaha® CL7 Touchscreen Command Link Plus Display, Ritchie SuperSport SS2000 Compass
- Lenco Electric Trim Tabs with Control Pad,
- Indicator Lights and Auto-Retract
- Mechanical Space with Lighting
- Three (3) Automatic/Manual Electric Bilge
- Pumps with Monitors at Helm; One Forward, One Midship, and One Aft.
- Tiara Sport Premium Stereo System: Fusion 3 Zone Stereo System, Two (2) Fusion Stereo Remotes: One (1) in Bow One (1) in Interior, JL Audio Digital Amplification, Two (2) 4" JL Audio Interior Speakers, Eight (8) JL Audio Exterior Speakers: Two (2) 6.5" Coaxials in U-Lounge, Two (2) 7.7" Components in Hardtop, Two (2) 6.5" Coaxials in Bow, Two (2) 8" Subwoofers, One (1) Rotomolded HDPE Fuel Tank with
- In-Line Fuel Vent Filters, and Fuel Shut Off Valves
- One (1) Diesel Tank with Digital Level Indicator
- Two (2) Fresh Water Tanks, Plumbed Together with Digital Level Indicator
- Fresh Water Pressure System with Five (5) GPM Pump
- One (1) Holding Tank with Deck Discharge, Holding Tank Vent Filter and Total Capacity of 27 Gallons
- Dual Fresh Water Tank / Holding Tank Monitor
- FE-227 Agent Automatic/Manual Fire Extinguisher System for Mechanical Space
- Two (2) Handheld Fire Extinguishers
- Smoke and Carbon Monoxide Detectors in Interior Cabin
- 3.0 HP 12V Bow Thruster
- Electric Dual Trumpet Horn
- Six (6) 5/8" x 30' Black Dock Lines
- Dedicated Storage for Dock Lines & 10" Fenders
- Eight (8) Tiara Life Vests (Dometic Boats Only)
- USCG Safety & Medical Kit
- USCG/International LED Navigation Lighting
- NMMA Certified Using ABYC Standards
- International Certification Options Available
- Show more
INCLUDED UPGRADES
- TRIPLE YAM F350 W COMM LINK
- YAMAHA HELM MASTER
- WASHDOWN-FRESH WATER ANCH LOCKER
- 6 GALLON WATER HEATER
- MACERATOR (WASTE SYSTEM)
- LENCO AUTO TRIM SYSTEM
- UNDERWATER LIGHTS
- AFT COCKPIT SUN SHADE-ELEC RETRACTABLE
- TV MOUNTING SYSTEM, COCKPIT
- ELECTRIC GRILL- COCKPIT
- GARMINI 48' DIGITAL RADAR
- GRAMIN AUTOPILOT- HELM MASTER
- GARMIN VHF300
- ENGINE PAINT- WHITE & HULL COLOR
- HULL COLOR: PAINT AXAITA EFFECT
- BOOTLINE COLOR:CRYSTAL WHITE EFFECT
- BOTTOM PAINT: WHITE-ANTIFOUL 2 COATS
- COCKPIT UPH: PURE GRAIN WHITE W/ ORANGE
- INTERIOR FABRIC: GREY
- CORIAN-HEAD: VENERO WHITE
- CORIAN-EXTERIOR: EARTH
- PORT AND STBD AFT HARDTOP GRAB RAILS
- Show more
