Description & Details
For people who want to cruise further afield, without giving up the comfort and elegance of Azimut yachts, but whose real destination is the carefree frivolity of the journey itself. Magellano is always gentle and safe in navigation and has a limited fuel consumption thanks to the innovative Dual Mode hull and its wide range of cruising speeds. The interior spaces were designed for long stays on board, with welcoming living areas and spacious cabins
LAYOUT & VESSEL DIAGRAMS
Highlighted Details & Specifications
Hardtop
- 2 manually operated sliding windows (WE- BASTO 80 x 80cm full opening) above the steering and dinette areas
- 2 fixed windows in the central part of the saloon
- Upon request, all the windows (2+2) can be fitted with a system of blinds to partially or fully block out the light.
- Fiberglass light mast, housing: navigation lights, VHF aerial, dual electric horn, flag pole and riding light
- Show more
Hull
- External surface finished with paint
- The raised profile on the sides is de- signed to prevent the fenders from being scratched. If optional painting is applied, there is an additional stainless steel pro- file to offer further surface protection
- Bow thruster installation
- The bottom of the hull is coated with anti-fouling paint
- Show more
Bow, Walk Arounds, and Deckhouse
- Bow
- Anchor chain locker and divisions for housing 4 fenders (diam. 25cm)
- Delta® 20kg galvanized steel anchor
- Galvanized steel anchor chain, diam. 10mm, L = 75m
- Stainless steel bow roller and bow shield
- 1400W winch with mooring casing and wired control
- 2 stainless steel cleats, L. 350 mm
- 2 stainless steel bow chocks-hawses
- Forward sunbed area with non-slip finish, partially recessed to house the sunbed cushions
- 2 handrails at the sides of the sunbed area
- Plexiglas cup holder near the sunbed area
- Walk arounds
- 2 stainless steel amidships cleats on the gunwale
- Teak gunwale
- Stainless steel pulpit, 73cm high
- 1 fresh water refill plug on the end of the bow, on the walk around
- 1 black water suction plug, on the walk around
- Floor surface in fiberglass with a non-slip surface
- Deckhouse
- Windows in tempered glass, glued to the superstructure
- Deckhouse with front sunguard for better protection against sunlight and heat.Also useful in bad weather conditions, both when under way and when moored
- Side windows in Europa gray. Front windows in a neutral shade
- 1 horizontal sliding window (manually operated) with watertight “flush” clo- sure, located near the steering system
- 1 horizontal sliding window (manually operated) with watertight “flush” clo- sure, located on port side of the saloon
- 3 windscreen wipers with washer
- Red/green navigation lights
- Show more
Cockpit and Platform
- Cockpit
- Stainless steel/Plexiglas access gate leading to the stern platform from the cockpit
- Saloon door in stainless steel with 2 sliding doors
- "L"-shaped cockpit bench seating 4, with cushions; lockers underneath
- Seat/locker module (150 liters) on for- ward starboard side of the cockpit, with handrails
- Closable item-holder in cockpit
- Engine room access door from cockpit
- Water drainage on the walk arounds, and 2 side scuppers in cockpit (self-draining)
- 2 water drainage scuppers with grating on cockpit floor
- 2 stainless steel chocks in cockpit
- 2 refueling plugs in cockpit
- Electric switch panel (main and emergency) in starboard locker
- LED lights on cockpit ceiling
- Platform
- 3 T-head chocks on the stern end of the deck
- LED lights in stern platform area
- Manual telescopic swimming ladder
- Manual shower head with hot and cold water, near the stern platform
- PVC rub-rail with stainless steel profile on edge of stern platform
- High stern platform for housing a tender up to 2.5m long and weighing 160kg.
- Show more
Wheelhouse
- Single helm seat with foldaway footrest and 90° rotation, installed on a support adjustable in height and distance.
- Stainless steel grabrails
- Steering wheel
- Front part of the dashboard with painted or covered anti-glare finish
- Adjustable vent for air conditioning (if installed)
- The wheelhouse includes: control levers for Cummins ETS engines / marine gears, with engine speed syn, chronization function, CUMMINS VesselView® display for viewing engine/navigation/generator parameters (RPM indicator, battery voltmeters, fuel consumption, diesel level, various alarms, pressure and temperature of engines and marine gears, engine load %, GPS connection for calculating residual autonomy, ETA)., Raymarine Bronze Package navigation instruments, engine starting keys, Magnetic compass, bilge controls, parallel controls, alarm mute controls, steering area light controls, red spotlight control for night-time navigation, windscreen wiper and washer controls, navigation light and riding light controls, bow winch controls, horn controls, auxiliary / spare controls, trim tab position indicator and controls, 12V socket, alarm panel
- NB
- Electronic navigation instruments: see relevant paragraph
- Show more
Saloon, Dinette, Galley
- Dinette
- 1 “C”-shaped sofa with 4 seats, located in the fore port area
- Foldaway dinette table in wood with stainless steel support and handrail
- Longitudinal cabinet with drawers and shelves on starboard side
- Manual Venetian blinds on side windows
- Saloon door curtain in fabric
- Galley
- Located on port side of the entrance
- 130-liter refrigerator in a cabinet on the starboard side of the saloon entrance
- Worktop in thick laminate, with removable covers on the sink and storage compartment
- Hot/cold mixer tap
- Cabinet beneath the top, with shelves, storage area and rubbish bin
- Ceramic glass 3-hob range and silicone pot holder
- 20-liter microwave oven @ 220V-60Hz
- 1 wall unit
- Galley flooring in attractive PVC laminate of good thickness and resistance
- Show more
Owner's Cabin
- Owner’s Cabin
- Located fore of the cabins area
- Direct access to head
- Double bed
- Bedside table shelves with storage compartment
- Bed surround profile in wood
- Headboard mirrors
- Side shelves
- 2 openable oval portlights in black aluminum, inserted in large fixed windows
- Hatchway on ceiling, with foldaway mosquito net and blind
- Wardrobe with hanger bars and mirror, on port side
- Wardrobe with shelves, on starboard side
- Compartment and drawer under the bed
- Carpeted floor
- 2 sockets 110V AC
- Halogen lighting on ceiling and LED spotlight for reading
- Venetian blinds
- Show more

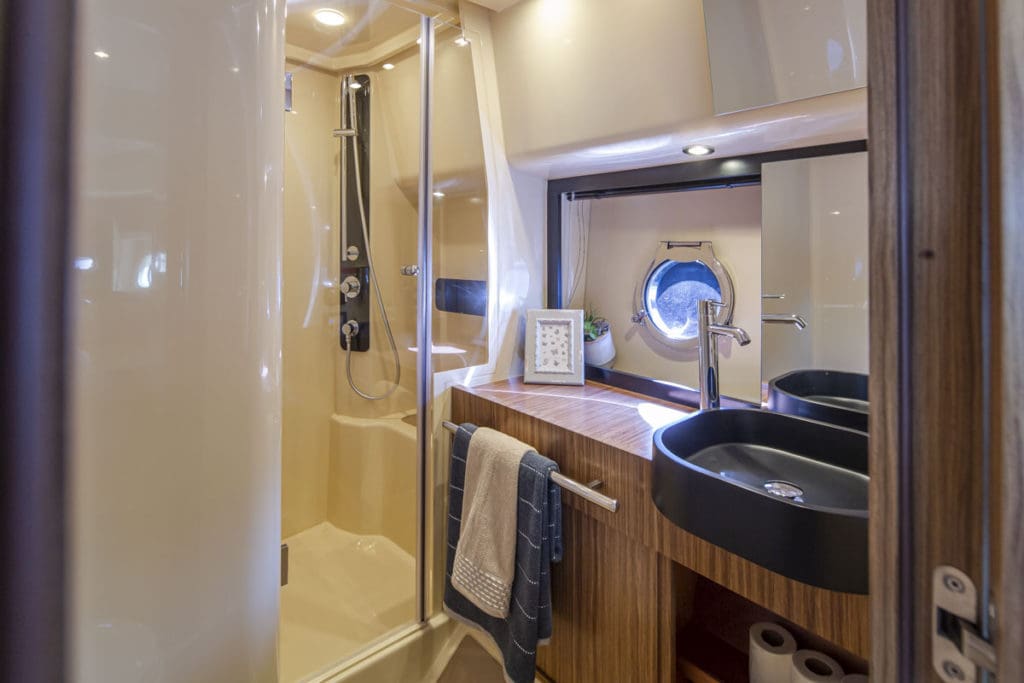

Owner's Head
- Located on port side, with direct access from the cabin
- Top in wood
- Hot/cold mixer tap
- Mirrors
- Cabinet with sliding doors under the washbasin.
- Openable hatch on ceiling for natural ventilation, 30x30cm
- Washbasin
- Fiberglass floor
- Halogen lighting on ceiling
- Separate shower compartment with
- Plexiglas door
- Shower support with height adjustment and hot/cold mixer tap
- Seat and shelf inside the shower compartment
- Shower compartment lighting
- Openable round portlight on hull, diam. 250mm
- Venetian blinds
- High gray water level alarm
- TECMA toilet
- Tecma toilet control panel (drainage/no drainage, with visual alarm for full tank)
- 1 110V AC socket
- accessory set consisting of: 1 toilet brush, 2 hooks, 1 toilet roll holder, 1 towel-holder bar, 1 toothbrush holder
- Show more
Guest Cabin and Head
- Guest Cabin
- Located on the left-aft side of the cabins area
- 2 single beds, side-by-side
- Covered headboards
- Bedside table between the 2 beds, with drop front
- 1 openable oval portlight in black aluminum, inserted in a large fixed window
- Wardrobe with hanger bar and mirror
- Cabinet with shelves in the center of the boat
- Carpeted floor
- Overhead halogen spotlights and LED reading lights
- 1 110V AC socket
- Venetian blinds
- Guest head
- Located on starboard side, with access from the corridor
- Top in wood
- Hot/cold mixer tap
- Mirrors
- Cabinet with sliding doors under the washbasin
- Openable hatch on ceiling for natural ventilation, 30x30cm
- Washbasin
- Fiberglass floor
- Separate shower compartment with Plexiglas door
- Shower support with height adjustment and hot/cold mixer tap
- Shower compartment lighting
- Openable round portlight on bulwark, diam. 250mm
- Venetian blinds
- High gray water level alarm
- TECMA toilet
- Tecma toilet control panel (drainage/no drainage, with visual alarm for full tank)
- Halogen lighting on ceiling
- 1 110V AC socket
- accessory set consisting of: 1 toilet brush, 2 hooks, 1 toilet roll holder, 1 towel-holder bar, 1 toothbrush holder
- Show more
Bedroom Cabin (OPT configuration)
- Bedroom cabin (OPT configuration)
- Located on stern starboard side of cabins area
- 1 single bed, longitudinal
- Compartment containing electric control panels and systems
- Storage compartments under the bed
- 1 openable oval portlight in black aluminum, inserted in a large fixed window
- 1 socket 110V AC
- Wardrobe compartment with hanger bar
- Carpeted floor
- Halogen spotlights
- Venetian blind
- Shelving on the hull - 4 shelves
- This cabin is also provided with an additional removable seat on the dinette table, for the 5th crew member.
- Show more
Electric System
- Main characteristics
- Shore-powered power supply
- Onboard voltages: 230V-50Hz, AC -24VDC, 12VDC
- Electric control panels with switches in the engine room, saloon and third cabin
- AC-DC control panel in saloon, with instruments showing voltage, electrical consumption, and source selectors.
- Button for temporary emergency activation of service/start battery sets
- Optical and acoustic alarm indicating reversed polarity (only available on 4- phase 115-230V systems)
- 30mA differential power circuit breaker to protect the input line
- Galvanic current insulation
- zinc anodes
- Generator
- 13.5 kW
- For more details, refer to the specific OPT list
- Shore power sockets
- 1 shore power socket 50A- 250V AC on the platform, with 15-meter shore cable
- Batteries
- Set of four 24V 90Ah AGM batteries, for services
- Set of two 24V 90Ah AGM batteries, for engine start-up
- Set of two 24V 90Ah AGM batteries, for engine start-up
- Battery cut-out operated by remote con- trol switch (relay) in engine room
- Electronic battery charger 220V AC/50A- 24V DC for recharging battery sets in the engine room
- Lights and sockets
- Main lighting system with halogen lights (internal) and LEDs (external)
- 110V socket in engine room Electronic navigation instruments
- For STD equipment, see “flybridge dash- board equipment” and “internal dash- board equipment” paragraphs
- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
- NB
- Show more
Bilge System
- 2 centrifugal electric pumps 24V with automatic and manual controls, in the engine room and under the cabins area
- Bilge pump operating alarms with warnings on internal dashboard and on the flybridge
- 1 manual pump, activated under the corridor floor, with crossover valve and 2 suction points below the cabins area
- 1 manual pump, activated in the cockpit, with crossover valve and 2 suction points in the engine room
Fire Extinguishing System
- FM200 extinguisher gas cylinder, with mechanical handle activation, in the engine room
- Emergency engine stop controls in cock- pit
Fuel and Water System
- Fuel System
- 2 tanks in 5754 aluminum alloy, 220 gallons each, in the engine room
- Tank interconnection with check valves
- Single electronic level sensor on star- board tank, connected to the Cummins
- Vessel view display
- Visual level gage on port tank
- Diesel check solenoid valves for engines and generator (with ignition switched on) with manual bypass
- Refueling plugs at the sides of the cockpit
- Single Racor 500 separator/settling filters
- Fresh water system
- 158 Gallon tank in polyethylene
- Pressure pump
- System sectioning via valves and manifolds
- Toilet flushing with fresh water
- 10 gallon water heater with electrical resistance and heat exchanger from engine cooling circuit, with thermostat mixer valve, for greater autonomy.
- Water level gage with indicator light showing reserve, on electric panel in saloon
- Water level sensor with auxiliary contact for stopping the pressure pump in the absence of water
- Hot and cold water lines in heads, galley and cockpit
- Black water system
- 2 TECMA EasyFit toilets with macerator built into the base
- 130-liter collection tank in polyethylene
- 2 TECMA control panels with operating status indicator, 2-level gage (3/4 and full), and system drainage interlock when the tank is full.
- Tank drainage via suction opening on deck
- Outboard discharge via specific line, with electric pump on tank outlet (can only be used where local legislation permits it)
- Gray water system
- 13 gallon temporary collection tank for shower/washbasin drainage, in polyethylene
- Tank drainage with automatic controls or via the switch on the main electric panel
- Galley sink drainage directly into the sea
- Tank level sensor with double contact in stainless steel, for automatic pump activation and high tank level indication
- Warning lights for high gray water level, in the heads and on the dashboard alarm panel
- Shower drainage pipes with drain-tap and removable filter to facilitate cleaning
- Show more
Engine Gas Exhaust System
- Gas exhaust from engines with cooling water injection, with thermally insulated stainless steel manifolds and structural mufflers in fiberglass.
- Submerged gas exhaust outlets and minimum bypass on hull sides
- Acoustic and visual alarm for high exhaust gas temperature on dashboard alarm panel
Engine Room (Other)
- Access from engine room via cockpit door and ladder.
- Access to engine room for routine and extraordinary maintenance via hatches in saloon floor
- Soundproofing and sound-absorbing paneling
- Engine room lighting with 1 fixed fluorescent lamp and 1 portable lamp
- Filters and check valves on seawater line for engine cooling
- Thru-hull fittings for propeller shaft with mechanical ring seal in graphite, PSS type
- Engine room ventilation
- Natural ventilation via openings on the bulwarks, with external stainless-steel grids and anti-mist traps (that block direct water spray and vaporised water from outside)
- 1 air extractor 24V (with ignition switched on)
- Show more
Air Conditioning System (OPT)
- WORLD SPEC water system version
- 1 compressor in engine room (total 40,000 BTU)
- 1 seawater pump with relevant seawater intake in engine room
- Distribution:
- Main deck: 2x16,000BTU with output adjustable from the wheelhouse
- Owner's cabin: 9,000BTU
- Guest cabin: 6,000BTU with flow diverter towards the third cabin when the latter is configured as a cupboard/storage
- Third cabin: 4,500BTU when configured as a bedroom; Additional water heater connected to the air conditioning system and fresh water heater, to convert the cooling system into a heating system
- Show more
Equipment
- 1 boathook
- 4 dock lines, 10m long, diam. 18mm
- 6 dock lines, 3m long, diam. 8mm
- 6 white fenders
- 6 fender-covers bearing the Azimut name
- 2 sets of saloon door keys
- Owner's manual + Bag with instruction manuals and warranty certificates for the components installed
- Show more
Included Upgrades
- Advance Package
- Awning for aft cockpit
- Cockpit table with foldable top
- Cooking pans
- Flagpole
- Hi-lo table on fly convertible in sunbed area
- Mosquito nets for portholes
- 2 cockpit chairs
- 4 sets of towels with Azimut logo
- Painted hull URBINO LAND MET
- Raymarine Gold Package
- Refrigerator and freezer 195 ltrs
- Refridgerator on flybridge
- Safe in master cabin
- Set of dishware, glassware and cutlery for 6
- Set of linens
- Set of spare anodes
- Steplights for interior and exterior
- Stern sided flooding light on GRP mast
- Storage bag for lower deck bilge
- Sunbathing cushions on bow
- Teak deck on swim platform
- Telescopic gangway
- Third cabin fitting
- US Package
- Wet bar on fly with barbecue, sink, fridge, and working top
- Wooden Floor in salon, dinette and helm station
- Show more
Disclaimer
- Exclusions:
- All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.
- Disclaimer:
- The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
- Show more
Additional Photos & Video
ADDITIONAL OPPORTUNITIES
Seattle, WA
- $255,000
36' 2005 Tiara
"Double Expresso" is a two-owner, mint condition Tiara classic. She has been extremely well taken care of and is moored in a covered slip. All of her …
Seattle, WA
49' 2020 Tiara
This vessel has been owned and operated by and experienced yachtsman and fully maintained by professionals. Her beautiful lines and shimmering hull will delight …
San Diego, CA
- $99,900
23' 2022 Crownline
LIKE NEW CROWNLINE E235 XS W/ SUZUKI 300HP & TRAILER & IRON HULL (Cradle) INCLUDED! This custom built E235 is the perfect choice for active families …
San Diego, CA
- $359,000
35' 2018 Sea Ray
Immaculate condition with very low hours, this beautiful 2018 Sea Ray Sundancer 350 Coupe is rare and hard to find, especially in this condition! …
