50′ 2018 Azimut 50 Fly

  • NEWPORT BEACH, CA
  • AZIMUT
  • SOLD
50′ 2018 Azimut 50 Fly
50′ 2018 Azimut 50 Fly
50′ 2018 Azimut 50 Fly
50′ 2018 Azimut 50 Fly
50′ 2018 Azimut 50 Fly

Description & Details

Elegance, space, agility, and light flooding through large windows. The yachts of the Flybridge Collection break down all visual barriers, allowing you to truly contemplate the sea, right before your eyes. The Aziumut Yachts collection boasts the widest product range in the world, with models measuring from 42′ to 88 feet. The yachts offer a unique experience of wind and lights, lulled by the comfort of welcoming environments and the finest Italian materials for a true sense of wellbeing.

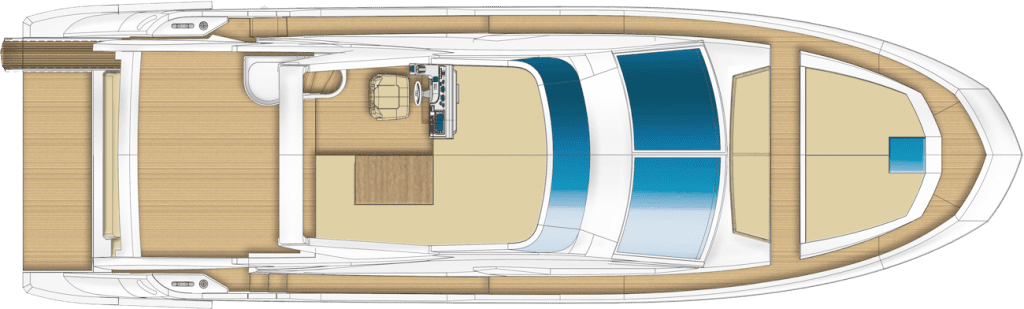

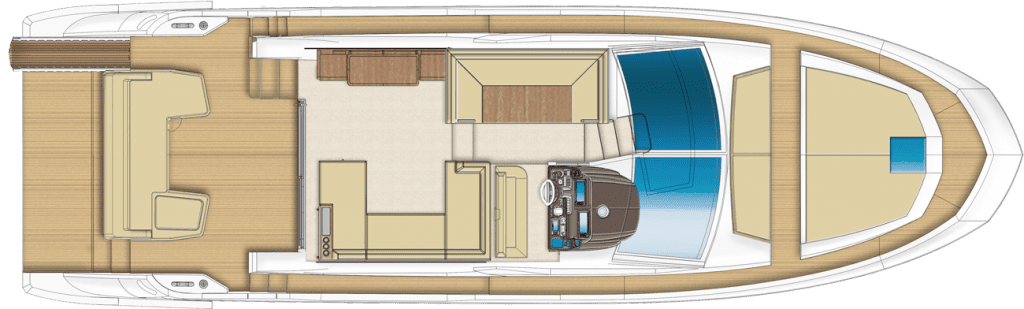

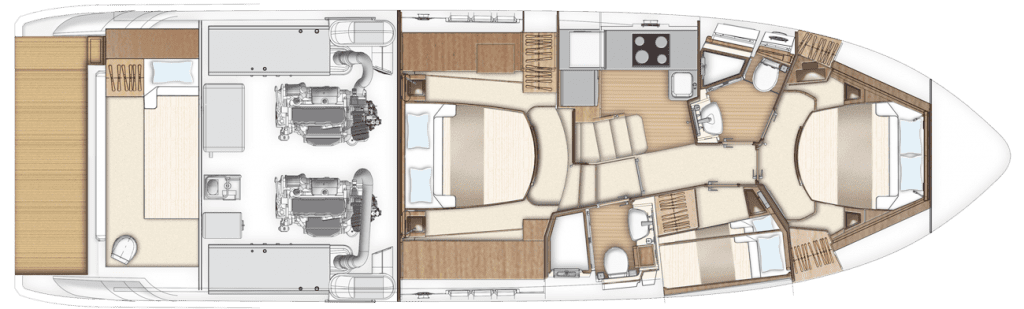

LAYOUT & VESSEL DIAGRAMS

50′ 2018 Azimut 50 Fly
50′ 2018 Azimut 50 Fly
50′ 2018 Azimut 50 Fly

Highlighted Details & Specifications

Hull
  • Planning with spray rails to increase lift and reduce roll
  • Deadrise at stern: 12°
  • Deadrise amidship: 21°
  • GRP external step flooring
  • Non-Slip floor
  • Access door: watertight in aluminum and Plexiglas
  • Smoked Plexiglas flybridge screen with stainless steel and aluminum frame
  • GRP rollbar
  • Handrail: NMMA compliant stainless steel (tube 30 x1.5) (stern flybridge handrail, flybridge access protection handrail, flybridge life-rail, mobile flybridge handrail)
  • Fore sunbed area
  • Helm seat for 1 person
  • Adjustable steering wheel
  • C-shaped sofa connected to sunbed area
  • Teak table with central stainless steel leg
  • 1 bow locker (in front of dashboard)
  • 1 Locker under bench, starboard side
  • Manual depth searchlight
  • Stainless steel light mast
  • Flybridge dashboard consisting of: 1 Engine display; BRONZE series electronic navigation instruments, Engine start-up controls, Bow anchor winch controls, Horn controls, 12V socket, Chain meter counter
  • Scuppers with stainless steel grids
  • “50” Logos, placed externally on the rollbar glass, one on each side
  • Azimut logos, placed externally on the tails of the GRP superstructure, one on each side
  • Show more
Steering System
  • Rudders: made of stainless steel
Flybridge
  • Accessible from the outside, cockpit stairs, portside
  • GRP cockpit stairs with 6 steps
BOW
  • Anchor chain and fender locker with water drainage
  • DELTA 25kg galvanized steel anchor
  • 75m Long high strength 10 mm gaged chain
  • 2000 W Winch
  • 2 stainless steel cleats L. 300mm oval tube
  • Sunbed area with non-slip finish
  • Chain washing pump
  • Non-slip floor
  • Scuppers with stainless steel grids
  • Forward facing sofa with 6 seats, including cushions for seats and backrest
  • Show more
WALK AROUNDS
  • Refueling: 2 ‘Diesel’ refueling plugs diam. 88mm with cover
  • Fresh water filling: 1 ‘water’ refill plug diam. 85mm
  • Black water outlet: 1 ‘waste’ outlet water plug diam. 75mm without cover
  • 2 stainless steel cleats L 300mm oval tube (intermediate)
  • Non-slip floor
  • Side handrail
  • Rub-rail: in stainless steel and high resistance PVC. Knurled section= (39.8×7.8)
  • Pulpit
  • Show more
COCKPIT
  • Double cockpit access via stainless steel and Plexiglas gate
  • 2 stainless steel cleats, H.110mm L.350mm
  • 2 handrails (RH and LH) on the side of the deckhouse
  • Mooring station: dim. 1230×210
  • Aft stainless steel left/right chock
  • Vertical stainless steel double door with tempered glass
  • 4-seater C-shaped cockpit bench(in GRP integrated in the deck, width 2.47m)
  • Cockpit bench cuhsions
  • 1 locker under cockpit bench, LH side
  • 1 port deckhouse column locker
  • Lockers below cleats (one on each side)
  • RH locker with battery cut-out
  • Engine room access via door in cockpit floor
  • Crew Cabin access via hatch in cockpit bench
  • Non-slip floor (excluding walk around access steps)
  • Flybridge access stairs handrail
  • 2 louspeakers
  • Lighting: spotlights in cockpit ceiling panel
  • Hot and cold water shower head
  • Scuppers with stainless steel grids
  • Show more
PLATFORM
  • Hydraulic platform
  • Stern platform lights
  • Non-slip floor
  • Swimming ladder
  • Installable Tender: working dimensions of platform: 3.5 x1.13m, system max. net capacity (symmetrical):700 kg (excluding platform), Max. permitted capacity (asymmetrical): 380kg (including platform), hypothetical platform tender: 3.2×1.5m

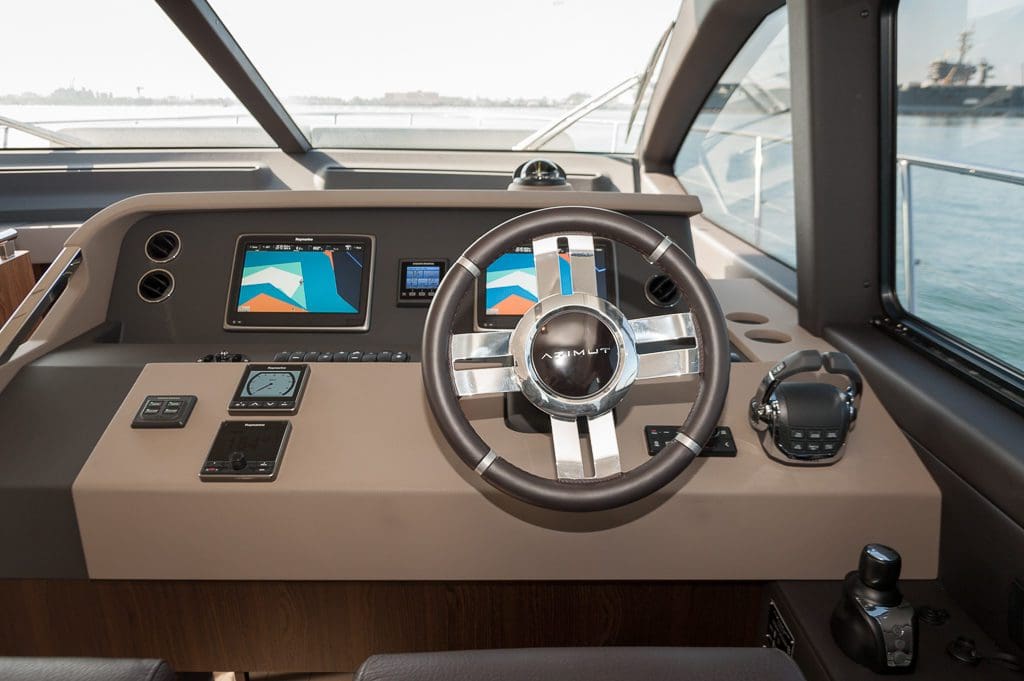

Wheelhouse
  • Single helm seat
  • Manually operated window
  • Leather adjustable steering wheel with stainless steel spokes
  • Dashboard consisting of: BRONZE series electronic navigation instruments, Communication systems (VHF) Electronic remote controls CRUISE COMMAND, Magnetic compass, Trim tab switches, Trim tab indicators, Horn, navigation lights, wiper switches, Activation of bilge pumps, Emptying of black and gray water tanks, Engine room ventilation, 12V socket, Shore power socket indicator light, Chain washing pump switch, Fuel tank, black water, gray water, and fresh water level gage on Raymarine display (constant display)
  • Engine control instruments: Multifunction display for controlling the Volvo Penta Engines, engine start-up buttons, alarm indicator lights

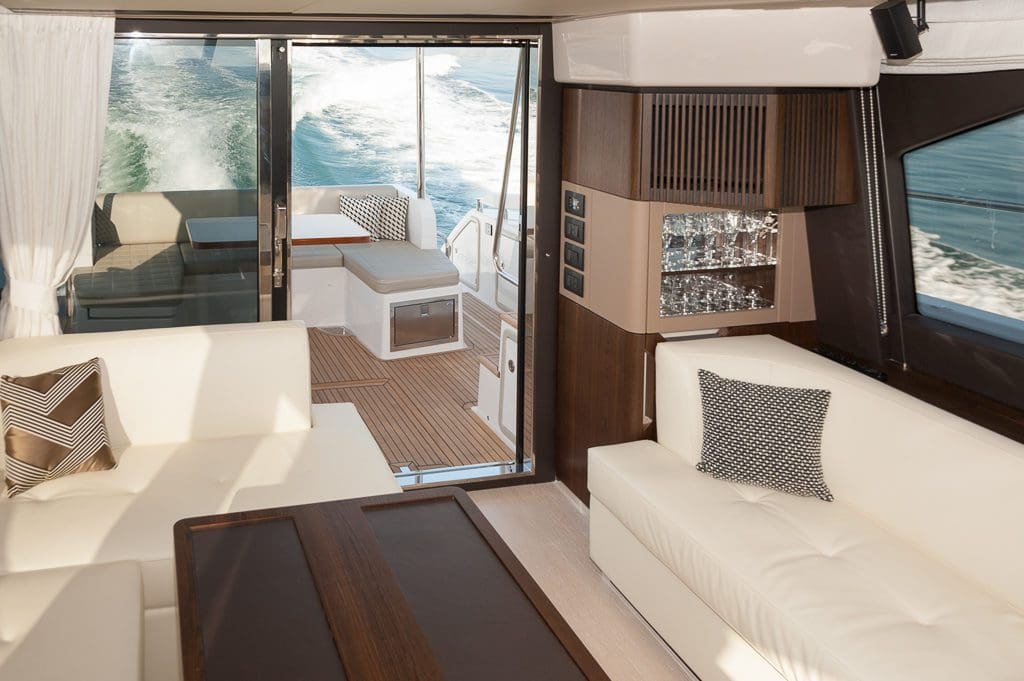

SALOON
  • Pickled oak cupbaords
  • Carpeted floor
  • Cupboard on portside
  • 1 4-seater C-shaped sofa on starboard side
  • Provision for TV system with aerial
  • Ceiling and wall upholstery: 2-tone fabric (ivory and brown, Nextel)
  • Roman blinds for stern windows and sliding blind for saloon door
  • 2 louspeakers
  • Show more
DINETTE
  • Dining area on left with rectangular foldable table
  • Carpeted floor
  • Below deck access ladder with carpeted steps
Galley
  • Below deck to the left of stairs
  • Galley top and floor in laminate
  • Ceramic glass range with 4 plates
  • Overhead extraction hood with active carbon filters
  • Microwave oven + grill
  • 1 stainless steel sink
  • Refrigerator +220- liter upright freezer
  • Openable portlight
  • Show more
Corridor
  • Carpeted below deck access
  • Spotlights
  • Fabric bulwark upholstery
  • Corridor grabrails
Owner’s Cabin
  • Located midship
  • Double bed placed in the center astern with headboard
  • 2 bedside tables
  • Vanity unit with mirror
  • Cabinets with door and shelves on both sides
  • Wardrobe with hanger bar on port side
  • Wardrobe with shelves in front of bed
  • Spotlights
  • 2 openable portlights
  • 3+3 rectangular hull windows
  • Direct access to the head from the corridor leading to the owner’s cabin with internal stairs
  • 1 mirror in wardrobe
  • Metal Venetian blinds
  • Fabric wall upholstery and wood paneling
  • Fabric ceiling panels + some areas in Nextel
  • Provision for TV system
  • 220V sockets
  • Air conditioning system control panel (if A/C installed)
  • Show more
Owner’s Head
  • Located forward of the owner’s cabin, on starboard side
  • Access from owner’s cabin
  • GRP top and cognac (brown) colored Vetro Freddo Washbasin
  • TECMA toilet
  • Chromed mixer taps
  • Separate shower enclosure; flat shower door
  • Chromed shower rail
  • Wall unit with 1 openable door next to washbasin top and under- cabinet with shelves
  • Spotlights
  • 1 openable portlight
  • Metal Venetian blinds
  • Non-slip GRP flooring in shower
  • Sockets
  • Head accessories
  • Head air extractor: Forced extraction (from the shower ceiling panel)
  • Show more
Starboard Side Guest Cabin
  • 2 fixed bunk bed
  • 1 bedside table next to beds
  • 1 wardrobe with coat rack and shelves
  • Lockers under bed
  • Fabric ceiling panel + some areas in NExtel
  • Fabric bulwark upholstery
  • Openable round portlight
  • Metal Venetian blinds
  • Carpeted floor
  • Spotlights
  • Access to head leading to corridor
  • Sockets
  • Air conditioning system control panel (If A/C installed)
  • Show more
Guest VIP Head
  • Positioned abaft of the VIP cabin, on port side
  • Washbasin with GRP top
  • Direct access from the VIP cabin or from the corridor
  • GRP top and cognac (brown) colored Vetro Freddo Washbasin
  • Chromed mixer tap
  • TECMA toilet
  • Separate shower enclosure with glass door
  • Chromed shower rail
  • Spotlights
  • Under basin cabinet with shelves
  • Metal Ventian blinds
  • Non-slip GRP flooring in shower
  • Head air extractor: forced extraction (from the shower ceiling panel)
  • Head accessories
  • Openable round portlight
  • Socket
  • Show more
VIP Cabin
  • Located towards the bow, it is accessed via a central corridor
  • Foldaway double bed with large locker underneath
  • Wooden headboard
  • 2 openable wall unit with 2 storage areas (each side) over the windows
  • 1 wardrobe on the starboard stern wall with hanger bar
  • 1 wardrobe on the port stern wall with shelves
  • Fabric ceiling panels + some areas in Nextel
  • Spotlights
  • Emergency exit in ceiling through concealed rectangular hatchway leading to for sunbed area
  • Direct access to guest head
  • Mirror inside wardrobe
  • 2 openable round portlights inserted in windows
  • Metal Venetian blinds
  • Fabric-upholstered bulwarks
  • Fabric-upholstered headlining
  • Carpeted floor
  • Air conditioning system control panel (If A/C installed)
  • 220V sockets
  • Show more
CREW CABIN
  • Located at stern
  • Access from cockpit bench
  • single bed with under-bed compartments
  • 1 wall unit
  • 1 wardrobe
  • 1 head cabinet
  • Fabric bulwark upholstery
  • GRP ceiling + upholstered panels
  • Bulwark shelves, 1 at the foot of the bed, 1 over the rudder hold
  • Openable round portlight with 250mm. di. over cockpit bench
  • GRP non-slip floor
  • Spotlights
  • Fabric blind
  • Show more
CREW HEAD
  • TECMA toiet
  • White resin washbasin
  • Chrome mixer with extractable shower head
  • Shower area with waterproof curtain
  • Wall unit with mirror
  • Under sink door
  • Power socket
  • Head accessories
  • Show more
MAIN CHARACTERISTICS
  • Shore-powered power supply
  • Onboard voltages: 230V-50HzAC; 24V DC from battery set; 12V DC for VHF equipment and cigarette lighter socket
  • The main boards are in the wheelhouse, engine room and crew area
  • The power circuit breakers that protect the instrument panel, engine controls, navigation instruments and shore power socket and generator selector switches are located in the wheelhouse
  • Other power circuit breakers that protect the various 24V DC and 220V AC utilities are located under the wheelhouse and are protected by a cover
  • Additional circuit breakers are located on the main panels in engine room to protect the various 24V DC utilities and the 230V AC utilities in the crew area
  • Junction boxes are installed in all areas
  • Show more
GALVANIC CURRENT INSULATION
  • Zinc anodes
SHORE POWER SOCKETS
  • 1 50A socket astern
  • 1 for air conditioning (OPT)
BATTERIES
  • Services: 6AGM type batteries, 270Ah 24V DC
  • Engines: 4 AGM type batteries, 180 Ah 24V DC
  • Generator: 1 AGM type battery, 70 Ah 12V
  • 24V battery charger: 24/60 3 out-60A-10A-10°
  • 12V battery charger: 12/15 2Out-15°
LIGHTS AND SOCKETS
  • AC sockets: 230V for main utility power supply, EU type
  • DC sockets: cigarette lighter type (wheelhouse)
  • 24V lighting (halogen for outside and LED for inside)
  • 24V watertight external lights
Bilge System
  • 3 24V electric pumps (crew cabin, engine room , owner’s cabin) automatically operated by means of level switch + wheelhouse controls
  • 2 manual emergency pumps; 1 owner’s cabin and 1 inside cockpits starboard locker
  • 1 Supersub Smart 650 24 V electric bilge pump, 24 I/min
  • Level alarms in wheelhouse
  • Rapid engine room emptying connected to port engine seawater system
Fire Extinguishing System
  • Handle in cockpit starboard side and emergency push button on emergency panel
  • 1 12kg homologated cylinder with nozzles above the engines
  • Fuel delivery shut-off to engines and generators
Fuel System
  • 2 aluminum tanks i engine room with a capacity of 1100 I and a total capcity of 2200 I
  • Electronic fuel level indicator on starboard tank
  • Optical fuel gage on port tank
  • Single settling filters for engines
  • 1 filter for generator
  • 2 refueling plugs on walk arounds
  • 2 vents on bulwar
  • Remote diesel shut-off(engine and generator) via 24V solenoid valve
  • Pipe connecting the two tanks to adjust the fuel level
  • Fuel drawing tap on starboard tank
  • Show more
Fresh Water System
  • 590 I polyethylene tank located under the bed in owner’s cabin
  • Water refilling on starboard walk around
  • Level sensor with electronic gage in wheelhouse
  • 1 tank vent on starboard bulwark
  • 1 water pressure pump with electronic control
  • 1 water heater, 40I
  • Stern shore power socket on port side
  • Hot/cold water line: heads, galley, cockpit, bathing platform shower, Cold water only in flybridge washbasin, Cold water only in engine room
  • Fresh water toilet flushing
  • System that can be isolated by ACORN manifold
  • Toilet fresh water supply
  • Show more
Black Water System
  • 175 O polyethylene tank located under the floor in the galley/corridor
  • Level sensor with gage in wheel house
  • 1 tank vent on starboard bulwark with anti-odor filter
  • Manual pump operating switch with control switch in the wheelshouse
  • 1 Macerator pump, 341/min
  • Suction point from starboard walk around
  • Outboard discharge
  • TECMA toilet (with macerator pump). All toilets discharge into a tank
  • Show more
Grey Water System
  • 175 I polyethylene tank located under accommodation corridor
  • Tank Vent on port bulwark
  • Level sensor with gage in wheelhouse
  • Water discharge directly into the sea by means of a pump
  • Man/Auto pump operating switch with control switch in the wheelhouse
  • Three-way valve in galley for deciding whether to discharge into the sea or in the tank
  • 1 pump 261I/min
  • Collection tray with built-in pump with outboard discharge, under crew tray
  • Show more
Seawater System
  • Engine Cooling System: includes 2 2″ seawater intakes with filter and valve (1 per engine)
  • Generator cooling system: includes 1 1″ seawater intake with filter and valve
  • Air conditioning cooling system: 1 1″ seawater intake with filter and valve
  • Chain washing pump: 1 1/2″ seawater intake with filter and valve
Ventilation/ Extraction
  • Head Ventilation: forced extraction by way of 24V extractors
  • Engine Room: Natural air intake through air duct with water separator (1 each side); Forced ventilation: 2 24V extractors (1 each side)
Other Systems
  • Steering system: hydraulic power steering with 2 round profile rudders
  • Trim tab systemL consisting of 2 AISI 316 blades, operated by a hydraulic cylinder, 24 V electro-hydraulic control unit
Equipment
  • 1 Telescopic boat hook
  • 5 anchor lines
  • 18m fender lines
  • 1 anchor chain stopper
  • 6 fenders
  • 6 black fender covers
  • 1 Oener’s Manual
  • 1 Azimut document holder
  • 1 white book, 2014 edition, English
  • 1 Azimut yachts welcome kit box
  • 1 Yachtique booklet
  • 1 Azimut warranty service booklet
  • 1 bottle of “Monsordo Magnum”
  • 3 Float Key-rings
  • 1 bag (with logo for storing the manuals
  • 1 remote control holder (with logo)
  • 1 routine maintenance kit for steel
  • 1 pin wrench for locking stainless steel pins
  • Show more
List of Options
  • (2) Volvo D11 670 HP
  • Additional Seakeeper Central Station on Fly
  • Cockpit chair
  • Cockpit table
  • Co-pilot seat in main helm
  • Crew cabin with Air Conditioning
  • Dimmers in Galley and Fly
  • Dimmers in Salon and Lower Deck
  • Extra Socket
  • Flagpole
  • Flybridge Furniture with Sink, Refrigerator, and BBQ
  • Foldable backrest for bow lounging sofa
  • Glendenning cable master 20mt
  • Hard top
  • Icemaker in Cockpit
  • LED lighting- Interior and Exterior
  • Painted Hull- Miami Silver
  • Raymarine Gold Package – Includes: Four Raymarine 125 Touchscreen Displays, 2 p70R Auto Pilot Controls, 2 i70 Multi Function Displays, 2 station Ray marine Ray 260 VHF Radio, Open array HD 4kw 48″Color Radar Antenna; ONAN 17kw Generator
  • Refrigerator drawer type in cockpit
  • SAT TV system TRACVISION TV6
  • Seakeeper Stabilizer
  • Set of Linen ( Guest and Master Cabins )
  • Set of linen- Crew Cabin
  • Set of linen- Sofa Bed in Salon
  • Stainless Steel set of Pots and Pans
  • Teak Deck on Swim Platform
  • Teak on Cockpit deck
  • Two decoration light sconces in salon
  • Two floodlights installed on aft flybridge
  • Washer and Dryer combo unit
  • Woden floor in Salon & Dinette
  • Advanced pack: Additional Control searchlight at lower helm, Chain counter control at main helm, Decor, Double Racor filters for main engines, Easy Docking Maneuvering joystick for engine and thrusters (Xenta), External covers package (mesh cover for wind and wind screen), Miele appliances (Microwave combo and cooktop), Spare conduits connecting engine room/ wheelhouse/radar arch, Sunbathing cushions on bow, Water maker predisposition
  • Spare set of zincs
  • Set of pottery
  • Lounge Furniture on aft fly
  • Stitching on sofa sette
  • Add’l refrigerator in stoorage area
  • Sofa bed in Salon + hi-lo table
  • Decoder SAT for direct TV
  • Audio/Video Package
  • Decor upgrade
  • Show more
DOWNLOAD BROCHURE

Additional Photos & Video

50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly 50′ 2018 Azimut 50 Fly

ADDITIONAL OPPORTUNITIES

PRE-OWNED 49' 2020 Tiara
Seattle, WA

49' 2020 Tiara

This vessel has been owned and operated by and experienced yachtsman and fully maintained by professionals. Her beautiful lines and shimmering hull will delight …

PRE-OWNED 35' 2018 Sea Ray
San Diego, CA - $359,000

35' 2018 Sea Ray

Immaculate condition with very low hours, this beautiful 2018 Sea Ray Sundancer 350 Coupe is rare and hard to find, especially in this condition! …

PRE-OWNED 54' 1995 Mediterranean
San Diego, CA - $300,000

54' 1995 Mediterranean

A remarkable fishing vessel with a range of impressive features. The cockpit controls, bow thruster, bow and cockpit live bait tanks, outriggers, and …

PRE-OWNED 45' 2015 Palm Beach
Newport Beach, CA - $1,300,000

45' 2015 Palm Beach

A simply magnificent vessel, whose Palm Beach heritage is respected and sought after world wide, offering the smoothest ride on the water and extremel …

Ready to make your yacht dreams a reality?

CONTACT US TODAY
