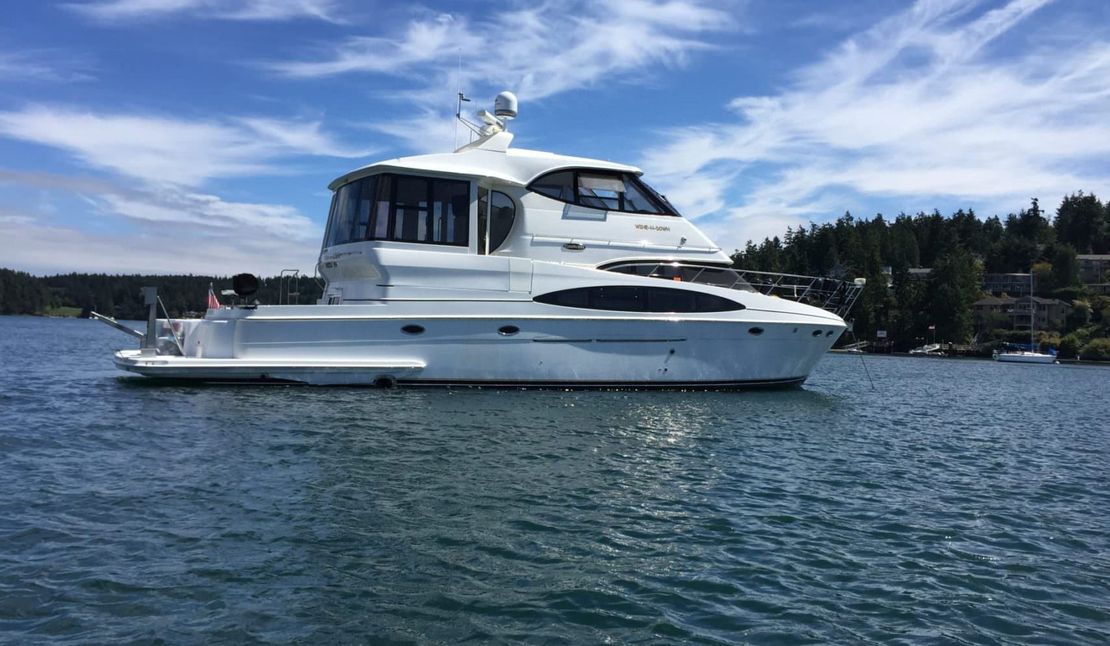

564 Cockpit Motor Yacht

  • SEATTLE, WA
  • PRE-OWNED
PRE-OWNED 564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
564 Cockpit Motor Yacht
LOA 59' 2"
BEAM 15' 4"
ENGINE HOURS 710
YEAR BUILT 2004
PRICE $375,000

Description & Details

Protect your health and escape on this beautiful yacht! Functions as a boat, as well as a home on the water! So much living space, you will wish you had done this years ago! Come see her in Anacortes today!

Highlighted Details & Specifications

Construction
  • Structural engine mountings longitudinal stringer span mounting with reinforced, gusseted, welded perpendicular steel plates
  • Fabricated aluminum floor frames with stainless steel stanchions
  • Hand-laid, molded fiberglass components featuring composite laminate hull sides, decks,and cabin tops
  • Molded fiberglass stringer system
  • Cherry wood bulkheads, cabinetry, and trim throughout cabin, with high-gloss finish
  • Solid fiber glass hull bottoms with Knytex substrates and Vinylester barrier coat
  • Tinted, tempered safety glass frame less window systems Unitized deck, cockpit, and cabin top construction with integral aluminum truss reinforcement in cabin top structure
  • Bridge Hardtop - with full front windshield and single wiper
  • New Carpet
  • Show more
Mechanical
  • Air conditioning- 4-zone, 58,000 BTU; with reverse cycle heat; dedicated shore power connector
  • Bow thruster
  • Cutlass bearings-synthetic rubber composite
  • Dripless shaftlogs
  • Exhaust mufflers-engines, generator
  • Fresh water cooling-engines
  • Fuel tanks-welded, baffled 5052 aluminum
  • Hydraulic steering
  • Propellers -manufacturer-certified
  • Propeller shafts-aquamet
  • Rudders-421 manganese bronze
  • Seawater strainers
  • Struts-421 manganese bronze
  • Trim tabs - stainless steel, hydraulic
  • Engine monitor panels fro Volvo
  • Engine oil Change system
  • Stern thrusters
  • Synchronizer
  • Show more
Electrical
  • AC/DC distribution panels with magnetic circuit breakers and integral generator and bilge blower controls; AC and DC voltmeters; AC ammeter
  • Batteries (9)-deep cycle, marine (12V)
  • Battery chargers(3)-electronic, AC-DC converters
  • External connectors-CATV, telephone
  • Generator-15.5kW, diesel (313 hrs)
  • Ground Fault Circuit Interrupt (GFCI) protection-all 110V outlets
  • Inverter
  • Shore power connectors -50 amp
  • Shore power cords (2)-50ft.
  • Wiring system-tinned copper strand wire, harnessed, color-coded, labeled, meets or exceeds ABYC standards
  • Cable Master for Shore Power
  • Show more
Water and Waste Systems
  • Fresh water system-pressurized (12V), with large-capacity filter
  • Fresh water storage tanks(3)- polyethylene
  • Fresh water tank level monitor
  • Hand shower-freshwater, hot and cold, on transom
  • Shore water connection with pressure-reduction valve
  • Shower sump pumps - automatic/manual operation
  • Wash down-fresh water, bow and transom
  • Waste holding tanks, with filtered vents and dockside pump outs
  • Waste tank level monitors
  • Water and waste lines constructed of molecularly cross-linked polyethylene
  • Water heater-20 gallons (110V)
  • Show more
Safety and Navigation
  • Anodes - zinc, sacrificial
  • Battery master disconnect switches
  • Battery restraint boxes
  • Bilge alarm-highwater
  • Bilge blowers(12V)
  • Bilge pumps (4)- 2000 gph each, automatic/manual operation
  • Brass valves for all underwater thru-hulls
  • CO detectors in salon and state- rooms
  • Compass-illuminated, dual-read
  • Engine alarms-temperature and oil pressure
  • Fire suppression system-auto-matic, FE241
  • Galvanic isolator/zinc saver
  • Horns-dual, air/ electric (12V), trumpet
  • Internal bonding system
  • Isolation transformers on the internal shore power lines
  • Molded nonskid surfaces on all decks - diamond pattern
  • Navigation lights
  • Spotlight
  • Windlass package-with 60lb. anchor and 200 ft.of 3/8” chain
  • Show more
Command Bridge
  • 110V outlet- GFCI protected
  • Grab rails, stainless steel, on out board bulk heads
  • Lights, halogen, courtesy, recessed
  • Lounge-double-wide, starboard side, with storage beneath, accommodates 4 adults
  • Self-draining walk surface Storage lockers(3)
  • Wet bar-self-draining designer counter top with integral sink, preparation surface, bottle storage beneath
  • Show more

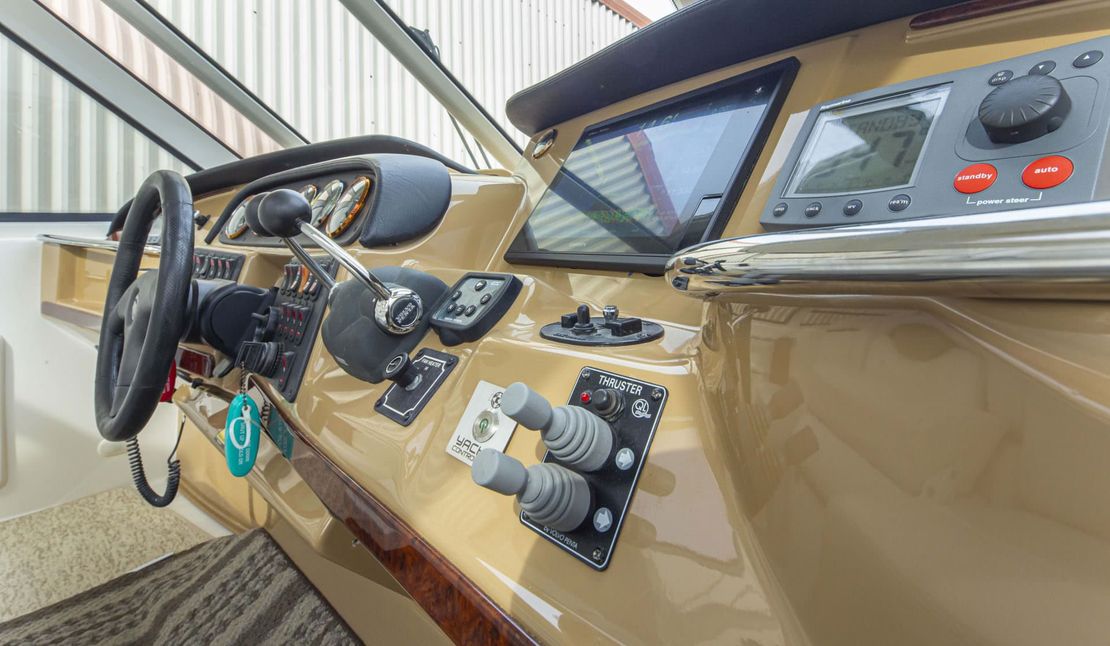

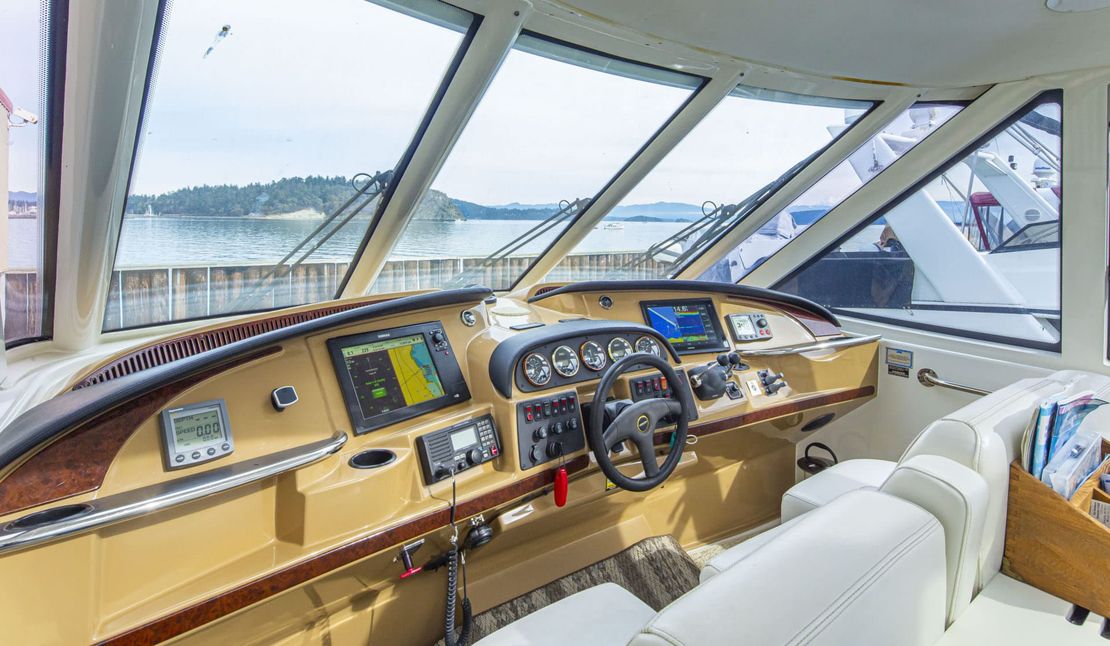

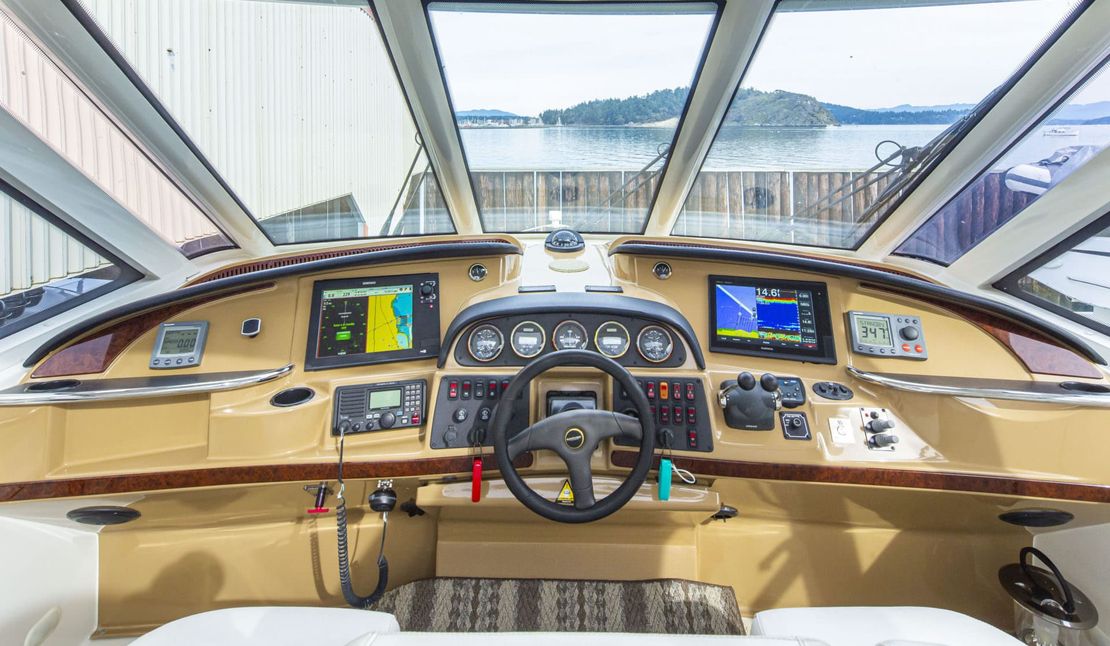

Helm and Instrumentation
  • Access panel - provides access to wiring in helm console
  • Accessory space-for installing navigation equipment
  • Adapter -12V
  • Beverage holders (3)-recessed, self-draining
  • Dash-fiberglass with padded upholstery and faux burled walnut accents
  • DC distribution panel-bridge12V systems
  • Grab rails (2)-stainless steel,on either end of helm
  • Helm seat-triple-wide, adjustable, high-quality marine-grade upholstery, embroidery stitching
  • Lights halogen, courtesy, recessed, with exterior-mounted switch
  • Stereo speakers pre-wired
  • Telephone connector
  • Gauges - synchronizer, rudder angle (multi-gauge); digital tachometer with hour meter (1 per engine); oil pressure, engine temperature, engine battery voltage, fuel level (multi-gauge,1 per engine)
  • Rocker switch controls
  • Tilt steering wheel
  • Video monitor system-color LCD display, waterproof, with one camera each on the transom and in the engine room
  • Windshield-tinted, wrap-around, aluminum frame, with defogger
  • Show more

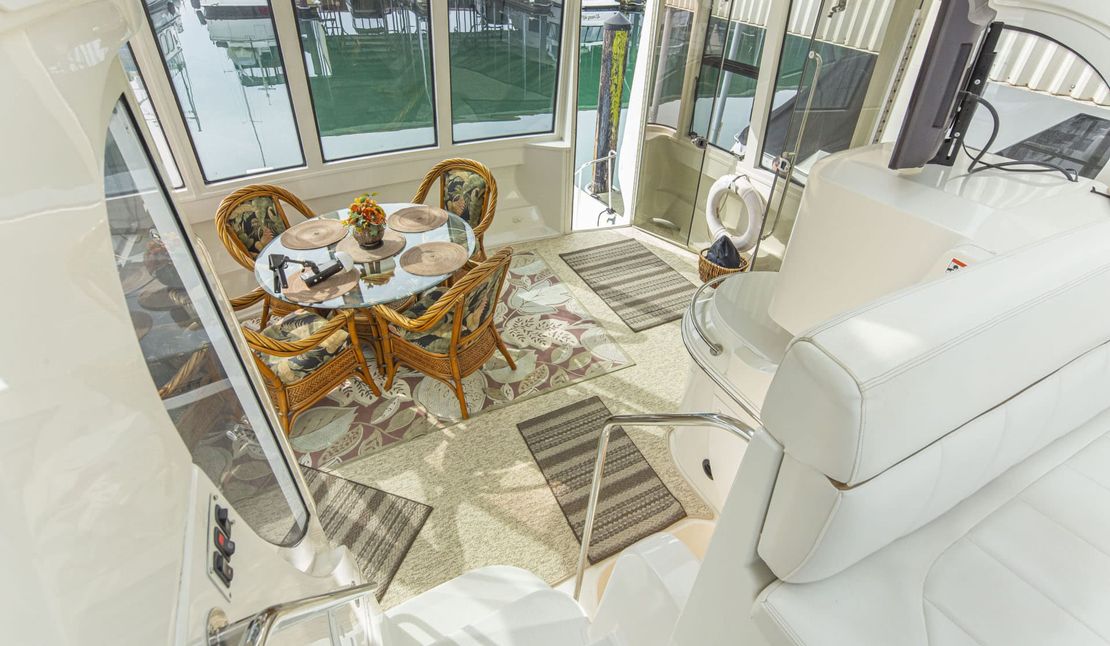

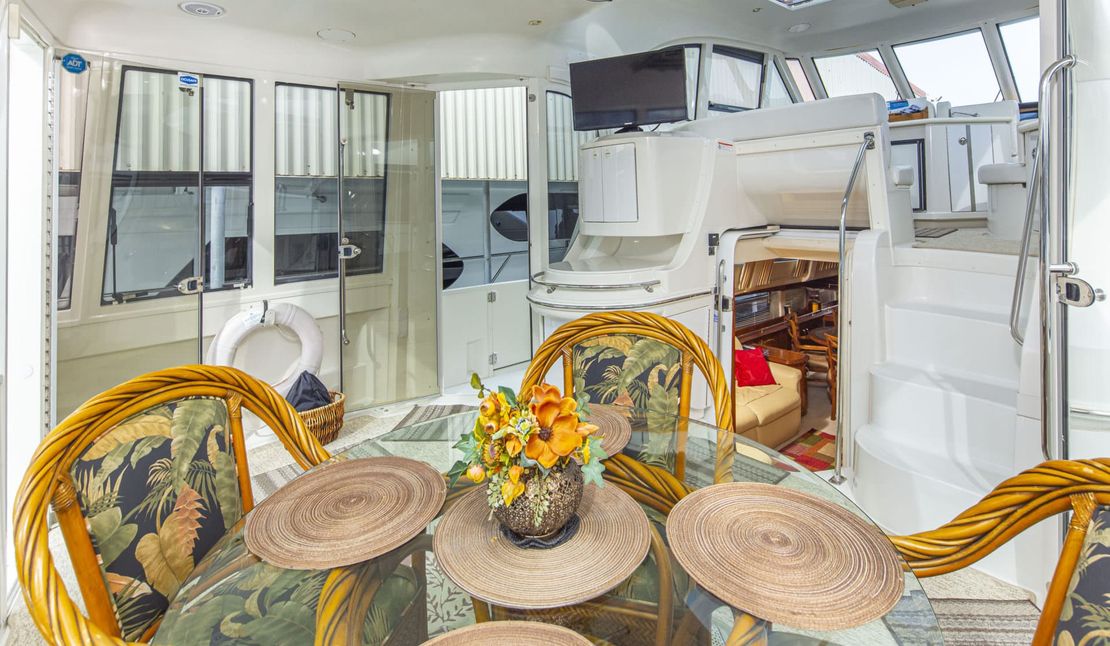

Aft Deck
  • 110V outlet- GFCI protected
  • Command bridge stairway-integral to deck with stainless steel hand rail on each side
  • Electronics arch- custom aluminum with acrylic polyurethane surface coating and UV protection
  • Electronics arch access plates(5) -corrosion resistant polymer attached with non corroding screws and waterproof sealant
  • Full fiberglass enclosure with glass windows
  • Grab rail- stainless steel, above storage locker
  • Hard top over entire aft deck
  • Lights halogen, courtesy, recessed, with exterior-mounted switch
  • Lights halogen, overhead, recessed, with exterior-mounted switch
  • Self-draining walk surface
  • Stereo speakers
  • Storage locker-double doors, shelves
  • Transom door-clear acrylic in aluminum frame, secures open and closed
  • Wing doors clear acrylic in aluminum frame, secure open and closed, provide access to the side decks
  • Hard Sides and back with vented side windows
  • Show more
Side Decks
  • Bow rail-1.25”O.D.,lineal-buffed, welded stainless steel, with additional intermediate rails
  • Bow rail stanchions-double-welded (inside and outside), stainless steel, anchored to aluminum backing plates laminated into deck
  • Cleats 10” spring, stainless steel, bolted through aluminum backing plate
  • Deck toe rail
  • Grab rail stainless steel, over cabin windows, runs length of cabin and above windshield
  • Rail doors aluminum, port and starboard, stainless steel hardware Rub rail molding-heavy-duty, stainless steel insert
  • Show more
Fore Deck
  • Bow locker-in-deck, self-draining, for anchor chain locker access
  • Cleats 12” stainless steel, bolted through aluminum backing plate
  • Cleat-12”stainless steel for anchor line, bolted through aluminum backing plate
  • Over-the-stem anchor roller
  • Sun pad
Cockpit
  • 54 ft 2 (approx.), integral to hull and deck, self-draining
  • Aft deck stairway-integral to deck with 2 stainless steel handrails
  • Boarding access from port or starboard dock, with stain less steel handrails
  • Cleats 12” stainless steel, bolted through aluminum backing plate, inboard-mounted with stainless steel hawse pipes
  • Direct access to master stateroom
  • Hatch-guttered, watertight, provides access to aft bilge
  • Lights courtesy, recessed, with exterior-mounted switch
  • Storage locker
  • Transom door-aluminum, secures closed, stainless steel hardware, with stainless steel grab rail across top
  • Show more

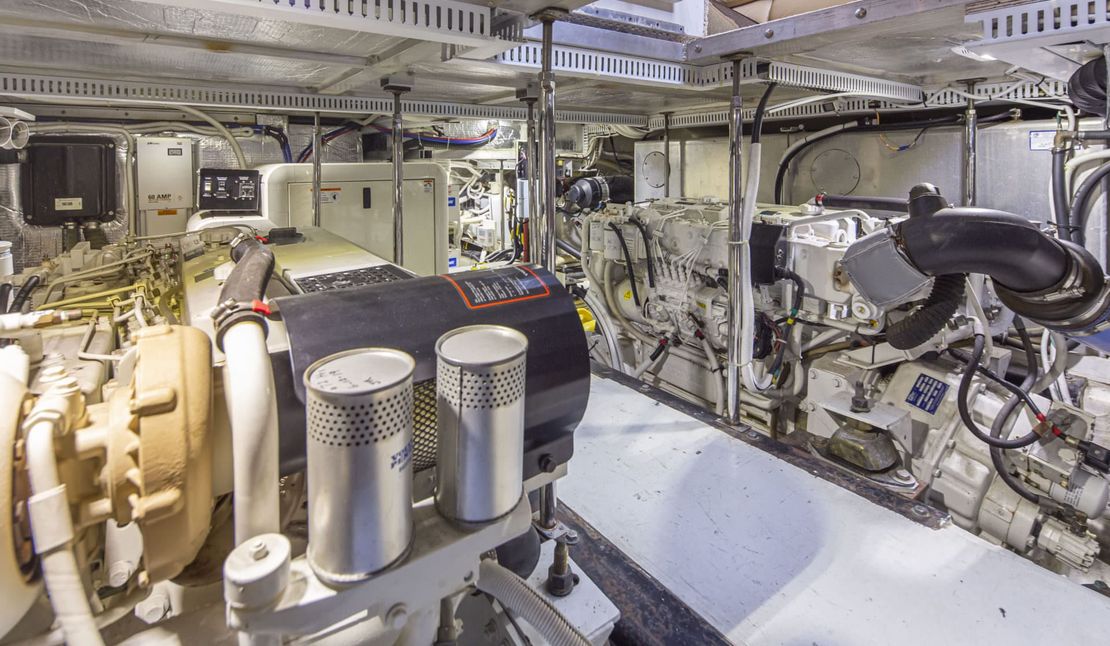

Engine Room
  • Access ladder - stainless steel, nonskid rung surface
  • Bilges coated with white gelcoat
  • Bulk heads laminated to hull sides and stringers
  • Catwalk-diamond plate aluminum
  • Insulation-acoustical and thermal, vinyl vapor barrier
  • Lights fluorescent, overhead, control mounted in salon
  • Show more
Boarding Platform
  • Boarding ladder-telescoping, conceals in boarding platform
  • Cleats 12” stainless steel, bolted through aluminum backing plate
  • Grab rail is stainless steel,mounted on deck above boarding ladder
  • Hand rail - stainless steel, across transom
  • Hatch-covers shore power cord and shore water hose
  • Service locker-contains shore power, shore water, freshwater wash down, TV, telephone connectors; vertically opening hatch
  • Storage lockers transom
  • Show more

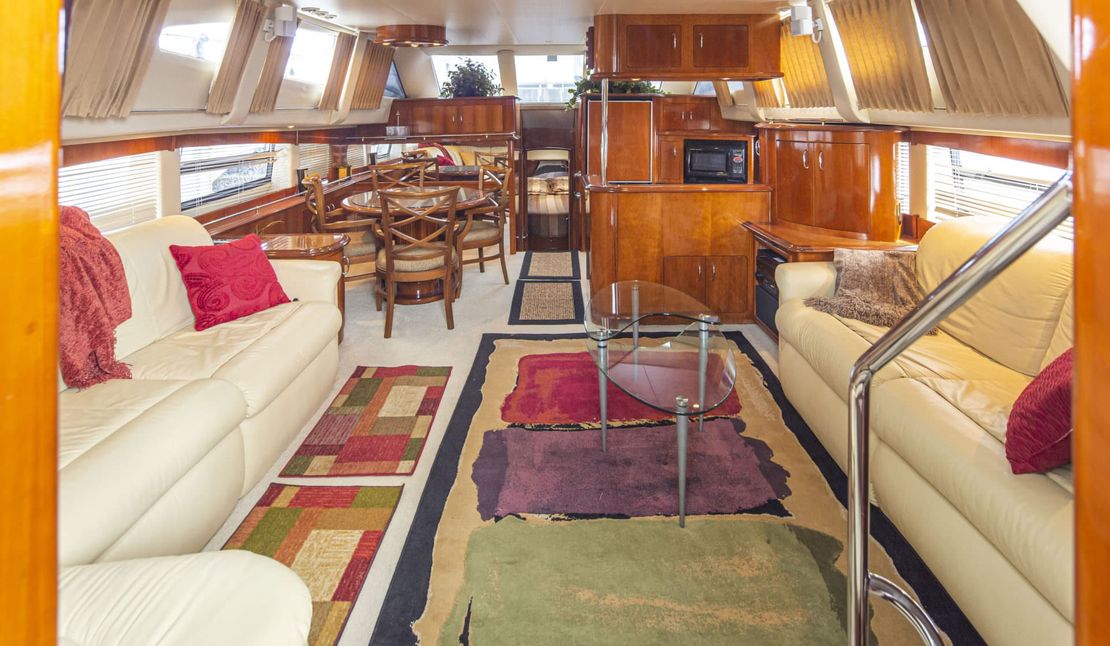

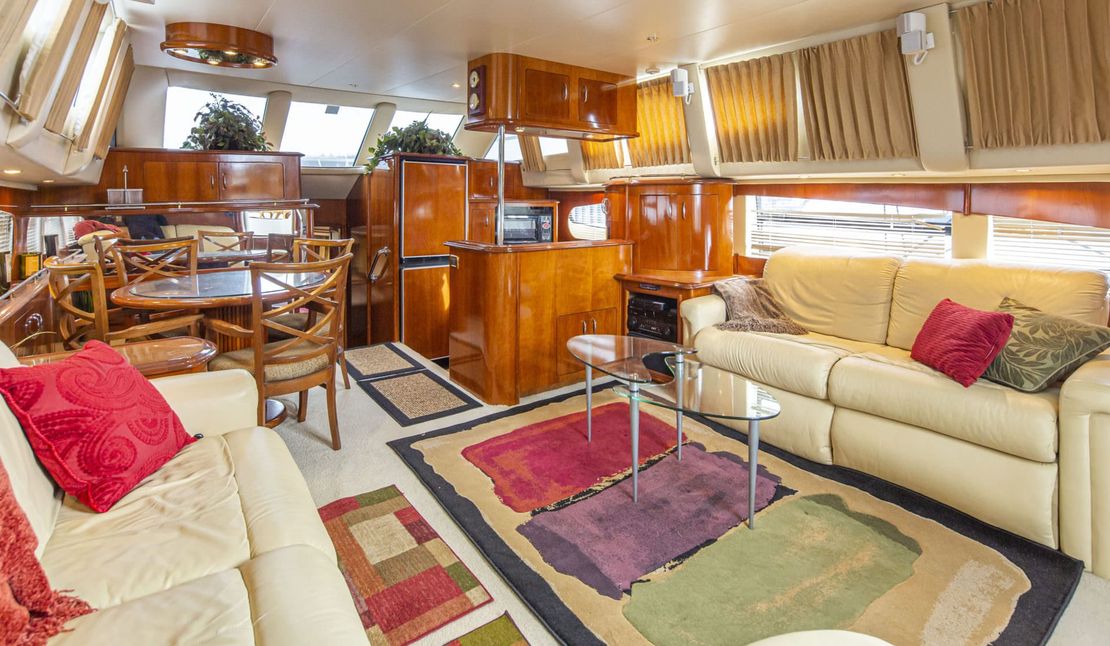

Salon
  • 110V outlets GFCI protected
  • AC and DC distribution panels
  • Cabin stairway-hinged to pivot into salon to provide access to engine room, supported by gas shocks
  • Counter tops are sapele pommele inlay with cherry wood trim
  • Curtains -décor-matched
  • Designer décor
  • Dry bar cabinet-2 doors, integral bottle holders, mirrored interior
  • Entertainment group 52' TV, 110V component stereo including AM/FM receiver, 5-disc DVD changer, satellite radio system
  • Entrance door-translucent acrylic, curved, sliding, handle lock, with interior screen
  • Fresh air system-passive, with controllable over head vents Hardware highlights-brass/ chrome
  • Lights halogen, overhead, recessed
  • Lights halogen, over windows, recessed
  • Lounge-Flexsteel, with double incliners and extension
  • Master stateroom stairway- integral,with stainless steel handrail
  • Mini blinds -décor-matched
  • Rocker lights witches
  • Sofa-Flexsteel, with storage beneath
  • Storage cabinets
  • Telephone connector
  • Window vents
  • Central Vacuum System
  • Stereo - Standard & Surround sound system
  • Show more
Galley
  • 110V outlets(2)-GFCI protected
  • Coffeemaker
  • Counter tops- work area is granite, other is sapele pommele inlay with cherry wood trim
  • Curtains -décor-matched
  • Designer décor
  • Flooring-granite tile
  • Freezer
  • Lights(2)-halogen, overhead, recessed
  • Lights(2)-halogen, over counter top, recessed
  • Microwave/convection oven-built- in
  • Mini blinds -décor-matched
  • Mirrored surface on bottom of overhead cabinet
  • Oven -electric
  • Range-electric,3-burner, smooth top
  • Refrigerator
  • Rocker light switches
  • Sink-double-basin,under mounted
  • Storage cabinets
  • Storage drawers
  • Show more
Dining Area
  • Counter tops-sapele pommele inlay with cherry wood trim
  • Curtains -décor-matched
  • Designer décor
  • Dining chairs solid wood frame and arms, with upholstered seat
  • Hardware highlights-brass/ chrome
  • Lights halogen, overhead in circular cherry wood soffit with mirrored bottom, recessed
  • Mini blinds -décor-matched
  • Mirrored forward bulkhead
  • Storage cabinets
  • Table-cherry wood top and base, free-standing
  • Show more

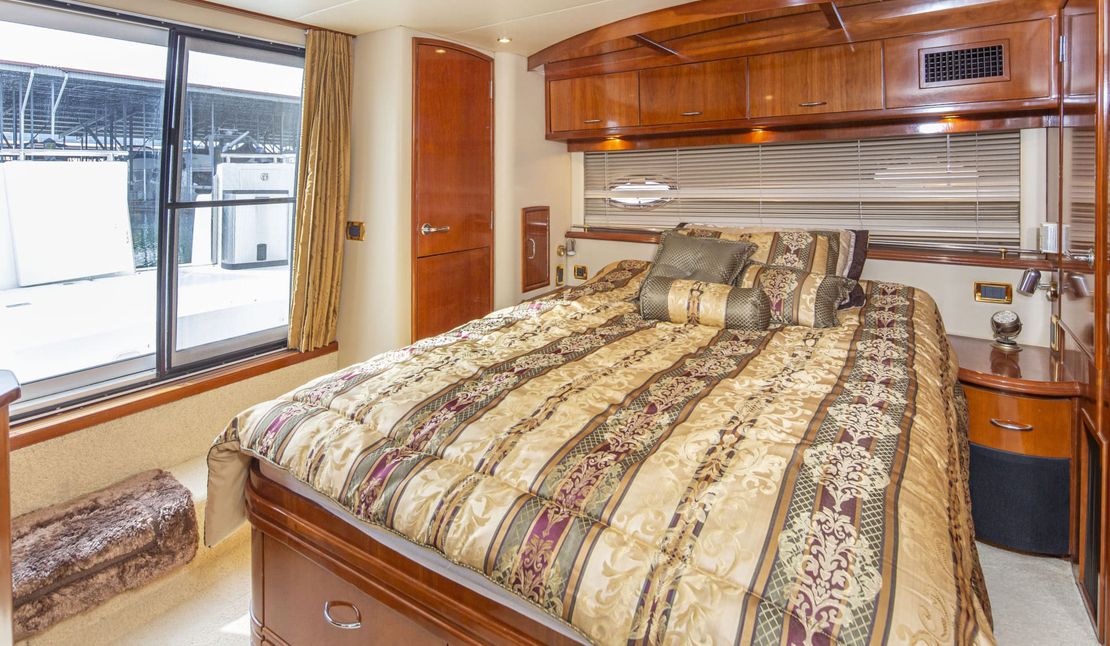

Master Stateroom
  • 110V outlets GFCI protected
  • Berth-queen,inner-spring mattress, offset island
  • Berth end tables sapele pommele inlay with cherry wood trim
  • Cockpit door tinted glass in aluminum frame, sliding, locking latch, inside dead bolt with flush-mounted handle, sliding interior screen
  • Curtains -décor-matched
  • Designer décor
  • Entranced door-2-panel, solid cherry wood frame with sapele pommele panels exterior, cherry wood panels interior, secures open and closed, stain less steel hardware
  • Hanging lockers cedar-lined, automatic light
  • Hardware highlights-brass/ chrome
  • Lights halogen, sconces, directable reading lights halogen, over berth
  • Mirrored ceiling over berth head
  • Port lights with screen
  • Rocker light switches
  • Sheet set-embroidered, fitted sheet, flat sheet, two pillow cases
  • Stereo speakers
  • Storage cabinets
  • Storage drawers
  • Telephone connector
  • Show more
Master Head
  • Hardware highlights-brass/ chrome
  • Rocker light switches
  • Towel set-bath towel, hand towel, and washcloth
Vanity Area
  • 110V outlets (2)-GFCI protected
  • Carpet-tufted cut pile, 65oz., crush-resistant, 100%nylon
  • Lights halogen, overhead, recessed
  • Medicine cabinets 3 shelves each
  • Mirror-above vanity
  • Mirrored ceiling
  • Nonskid sole
  • Soap dish-solid glass, wall- mounted
  • Vanity-solid surface top and back splash, integral sink, 2 shelves beneath with 2 doors
  • Show more
Water Closet
  • Entrance door-cherry wood with frosted glass and Queen Ann grill, secures closed, stainless steel hardware
  • Head fan
  • Light-halogen, overhead, recessed
  • Non skid sole
  • Port light-privacy glass, with screen
  • Shelf-solid surface with restraining rail
  • Toilet-vacuum flush, pedestal
  • Toilet paper holder
  • Towel bar
  • Show more
Shower Tub/Stall
  • Bench seat-integral
  • Designer waterfall tub spigot
  • Entrance door-cherry wood with frosted glass and Queen Ann grill, secures open and closed, stainless steel hardware
  • Hand shower-retractable, wall- mounted holding bracket
  • Lights - halogen, overhead, recessed
  • Non skid sole
  • Port light- privacy glass, with screen
  • Shower curtain-décor-matched
  • Towel bars(2)
  • Show more
VIP Stateroom
  • 110V outlets (2)- GFCI protected
  • Berth-queen, island
  • Berth step-ups carpeted
  • Curtains -décor-matched
  • Designer décor
  • Entrance door-2-panel, solid cherry wood frame with sapele pommele panels exterior, cherry wood panels interior, secures open and closed, stainless steel hardware
  • Hanging lockers cedar-lined, automatic light
  • Ledge tops-cherry wood
  • Lights halogen, overhead, direct able for reading
  • Lights halogen, overhead, recessed
  • Overhead hatch-translucent, lockable, inside screen
  • Port lights with screen
  • Rocker light switches
  • Stereo speakers with volume control
  • Storage drawers
  • Telephone connector
  • Show more
VIP Head
  • 110V outlet-GFCI protected
  • Entrance door-2 panel cherry wood, secures closed, integral doorstop, stain less steel hardware
  • Hardware highlights-brass/ chrome
  • Head fan
  • Lights halogen, over vanity, recessed
  • Linen locker - cherry wood door, 3 shelves with cherry wood restraining bolster on each, hanging bar
  • Medicine cabinet - mirrored door, 3 shelves
  • Mirrored ceiling over vanity
  • Non skid sole
  • Rocker light switches
  • Skylight
  • Soap dish-solid glass,wall- mounted
  • Toilet-vacu-flush,pedestal
  • Toilet paper holder
  • Towel ring
  • Vanity solid surface top and back splash, under mounted sink, 2 shelves beneath with 2 doors
  • Show more
Shower Stall
  • Bench seat-integral
  • Entrance door- textured acrylic in aluminum frame, bi-fold, secures open and closed
  • Light-halogen, overhead, recessed
  • Non skid sole
  • Portlight-privacy glass, with screen
  • Shower head- adjustable height detachable for use as hand-shower
  • Towel bar
  • Show more
Guest Stateroom
  • 110V outlets (2) - GFCI protected
  • Berth-queen(twins with filler), berth covers
  • Counter tops-cherry wood
  • Curtains -décor-matched
  • Designer décor
  • Entrance door-2-panel, solid cherry wood frame with sapele pommele panels exterior, cherry wood panels interior, secures closed, stainless steel hardware
  • Hanging locker- cedar- lined, automatic light
  • Lights halogen, sconces, directable for reading
  • Lights halogen,overhead, recessed
  • Mirrored aft bulkhead
  • Padded bulkheads
  • Portlight-with screen
  • Rocker light switches
  • Skylight
  • Storage-beneath berth
  • Storage cabinets
  • Storage drawers
  • Show more
Guest/Day Head
  • 110V outlet- GFCI protected
  • Entrance door- 2- panel cherry wood, secures closed, stainless steel hardware
  • Hardware highlights - brass/ chrome
  • Head fan
  • Light-halogen, overhead, recessed
  • Lights(2)-halogen, over vanity, recessed
  • Medicine cabinets (2)- 2 shelves
  • Mirrored ceiling over vanity
  • Non skid sole
  • Port light - privacy glass, with screen
  • Rocker light switch
  • Shower curtain-décor-matched, with matching tie-back
  • Soap dish-ceramic,wall-mounted
  • Storage cabinet - mirrored doors and fascia
  • Toilet-vacuum flush, pedestal
  • Toilet paper holder-mounted under vanity
  • Towel bar
  • Vanity-solid surface top and back splash, integral sink, 2 shelves beneath with 2 doors, sink spigot detachable for use as hand shower
  • Show more
Recent Upgrades
  • KVH TV5 satellite antenna installed 2 years ago
  • New Garmin, 12” touch screen chart plotter w/integrated depth sounder
  • Simrad 24 mile radar and combo chart plotter radar display installed 2016
  • Webasto diesel fired furnace with 6 zones
  • Sea Wise hydraulic davit
  • New Carpet
  • House batteries replaced in 2018
  • Complete service of engines & transmissions in last calendar year
  • Cell phone booster installed in 2018
  • Wireless Yacht Controller
  • Show more
Disclaimer
  • Exclusions:
  • All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.
  • Disclaimer:
  • The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
  • Show more

Ready to make your yacht dreams a reality?
