NEW IN STOCK

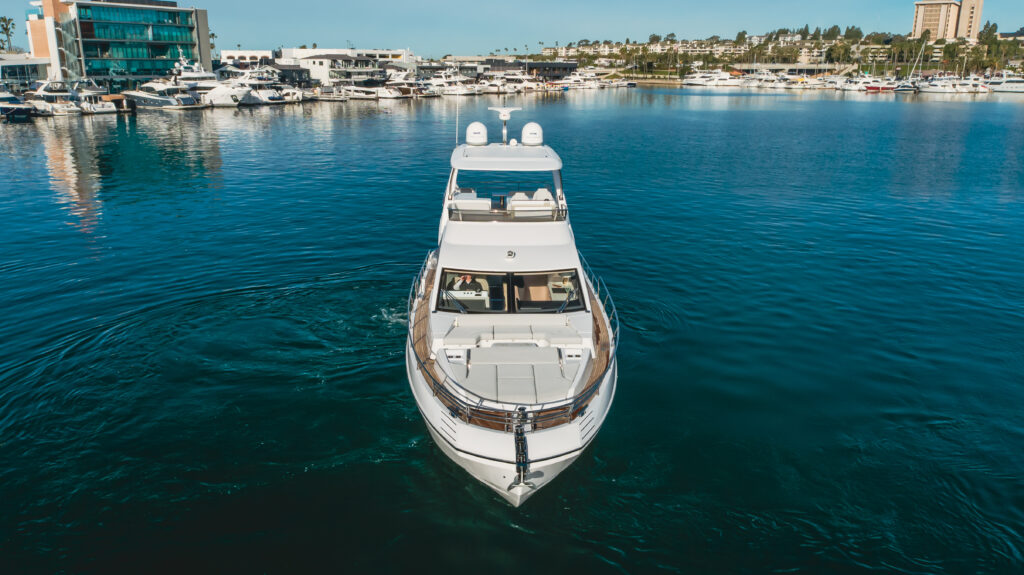

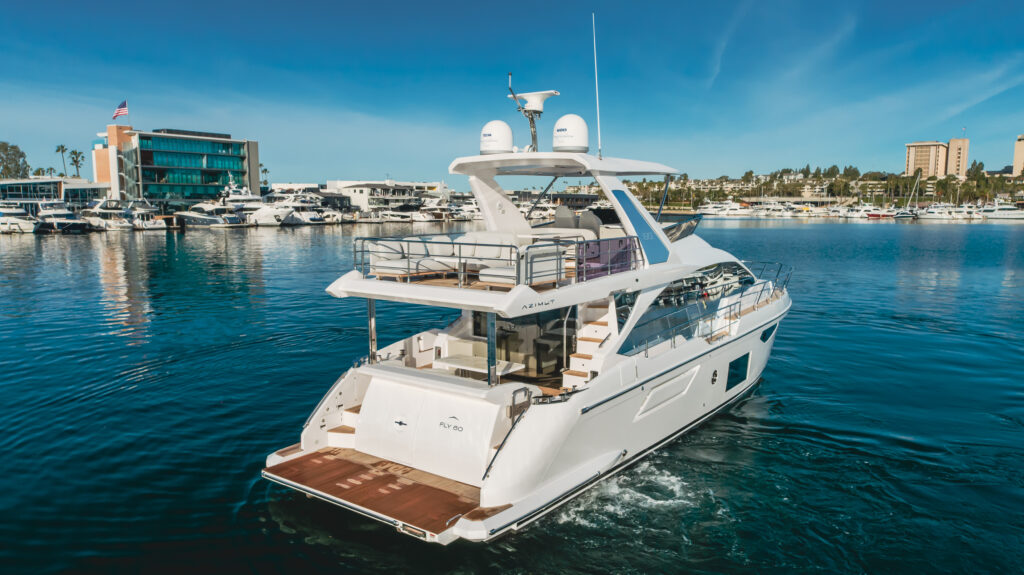

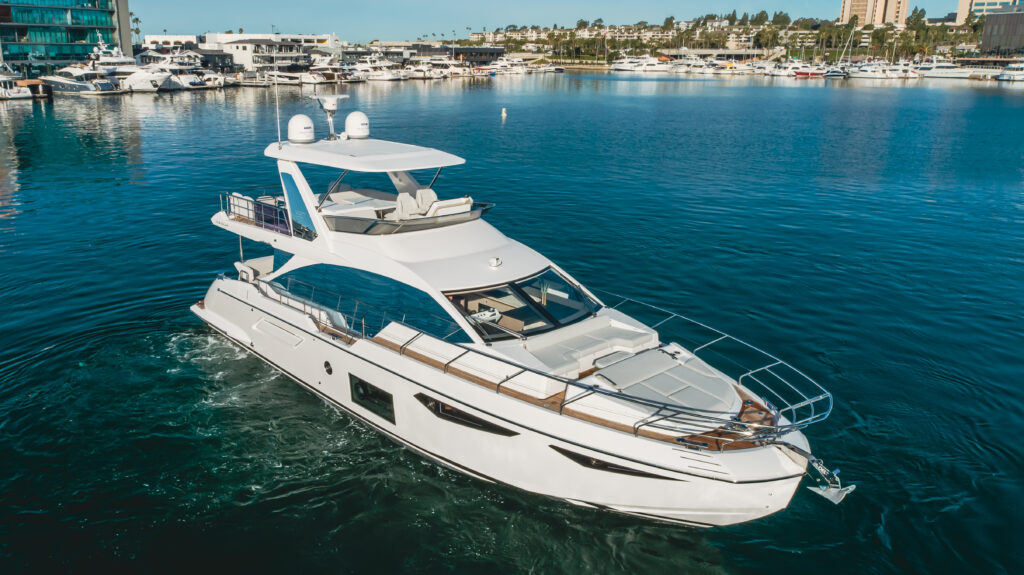

![60′ 2023 Azimut Flybridge]()
LOA
59'10"
CABINS
4
BEAM
16'7"
MAX DRAFT
4'9"
FUEL CAPACITY
740
Description & Details
Elegance, space, agility, and light flooding through large windows. The yachts of the Flybridge Collection break down all visual barriers, allowing you to truly contemplate the sea, right before your eyes. The Azimut Yachts collection boasts the widest product range in the world, with models measuring from 42 to 88 feet. The yachts offer a unique experience of wind and light, lulled by the comfort of welcoming environments and the finest Italian materials, for a true sense of wellbeing.
SISTER SHIP PHOTOS (HULL COLOR IS WHITE)
Highlighted Details & Specifications

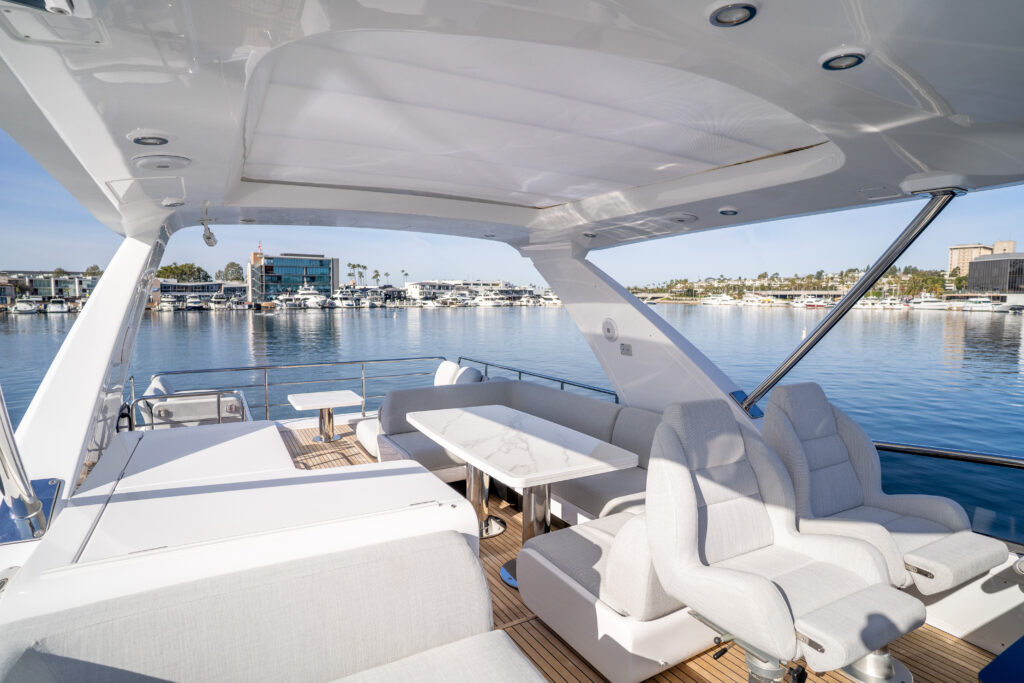

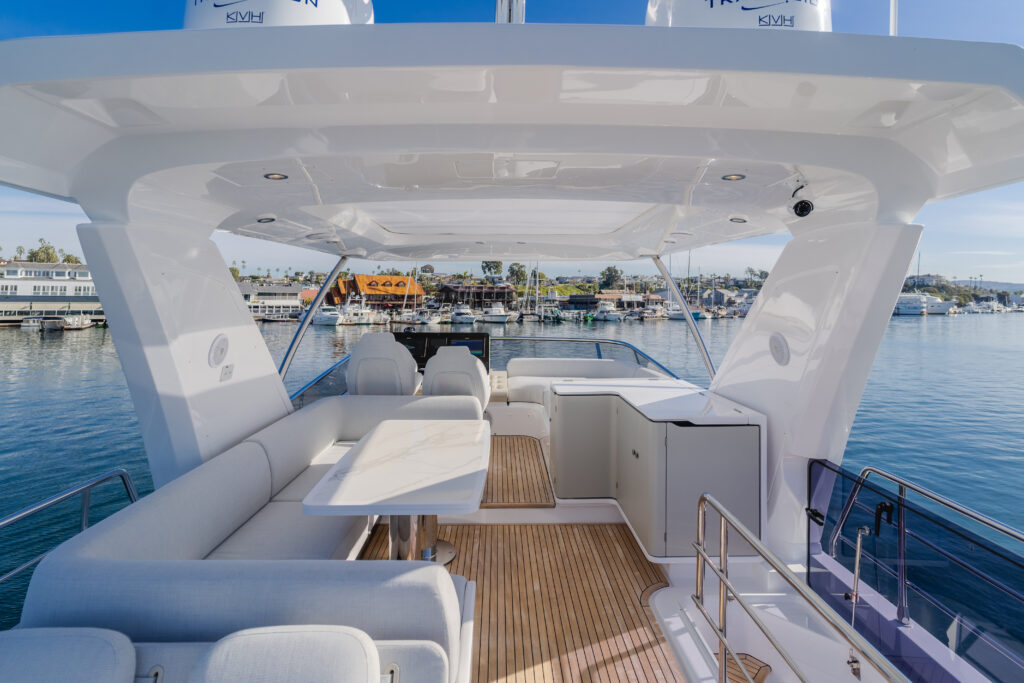

Flybridge
- Access via flybridge ladder in GRP, with teak steps
- Anti-slip treatment on flybridge flooring
- Aluminum hatchway (hinged opening in plex)
- Front flybridge screen in smokey Plexi-glas and stainless steel
- "C"-shaped sofa for six people on portside, with teak table
- "L"-shaped cabinet on starboard side with fridge and ice-maker
- GRP roll bar with blind windows on the external sides
- Stainless steel handrails
- Helm seat with pedestal and hight and horizontal adjustment
- Stainless steel steering wheel painted white, and height-adjustable steering system
- The wheelhouse equipment includes:
- Raymarine Bronze Package
- Engine display
- Thruster control
- Rudder
- Chain meter counter
- Engine levers
- Panel with main control switches - VHF
- Show more
Bow/Walk Arounds
- Anchor chain housing
- 32 kg (70.5 lb) anchor with chain L 75 m (246' 3⁄4"), Ø 10 mm (0.39 in), on bow roller
- 2000 W, 24 V winch with 10 mm (0.39 in) gipsy
- Pulpit
- Two bow cleats
- Two electric windscreen wipers / wind- shield washers
- PVC rub-rail with knurled stainless steel section
- GRP walk arounds with non-slip treatment
- Anchor locker
- Flat windows in toughened glass in the
- GRP (mirror finish) Seating area with cushions
- Two midship cleats
- Navigation lights
- Side wording
- Two refueling plugs with protection cover
- One fresh water filling on starboard side (anchor locker area)
- One black water outlet on port side
- Side hatches
- Bow lockers
- Show more
Cockpit & Platform
- Integrated stainless steel aft chocks
- Two stern cleats
- Saloon access door in black-painted stainless steel and tempered glass, with three panels
- Crew cabin access door (optional) from the transom
- Swimming ladder in stainless steel and teak that can be opened under the hatch
- Shore power socket(s)
- Shower
- Cockpit in teak
- Teak platform
- Cockpit bench lockers
- Cockpit lights with dimmer
- Locker with access from hatch on platform
- Show more
Wheelhouse
- Adjustable helm seat for one person
- Height-adjustable steering system
- Electrically openable wheelhouse window
- The wheelhouse equipment includes:
- - Raymarine Bronze Package
- - Compass
- - Engine display
- - Engine starting buttons
- - Thruster control
- - Rudder
- - Engine levers
- - Panel with main control switches
- - VHF
- Show more
Saloon/Dinette/Galley
- Saloon:
- Sofa for six people on port side
- Carpet
- LED lighting
- two seater sofa on starboard side
- Saloon door curtain in fabric
- Roman-type curtains in fabric
- Radio CD with remote control and two loudspeakers
- Provision for TV system
- Dinette:
- Dining zone with two opposed sofas
- Hardwood
- LED lighting
- Table with fixed plane (from Serial No.)
- Galley:
- Ceramic glass four-hob range, 50/60 Hz
- 20 l (0.71 cu.ft) microwave oven + grill
- Quartz countertop
- Hood above the range
- 185 l (6.53 cu.ft) fridge, 44 l (1.55 cu.ft) freezer
- Wood essence floor
- Cabins:
- Located midship
- Double bed with locker accessed from above
- Mattress, pillows and bedspread
- Chest of drawers
- Carpet
- Wooden Venetian blinds
- Doors and frames in wood essence
- Direct access to owner's head
- Reading lights
- Suitable for TV installation
- Large hull windows with built-in portlight
- Owner's Head:
- Access from owner's cabin
- Separate shower
- Shower column with soap dish and mixer taps
- Washbasin with top
- Synthetic teak floor
- TECMA toilet
- Round portlight
- Wooden Venetian blinds
- Head accessories
- Wall unit above washbasin with mirror
- Large storage area behind toilet
- Air extractor
- Guest Cabin:
- Located on starboard side
- Fixed single beds
- Central bedside table
- Wardrobe on bulwark
- Carpet
- Wooden Venetian blinds
- Fix window with openable round portlight
- Reading light
- Guest/Day Head:
- Access from corridor
- Shower with panel
- Shower column and mixer taps
- Washbasin with top
- Round portlight
- Synthetic teak floor
- TECMA toilet
- Roller-type curtains
- Head accessories
- Wall unit above washbasin with mirror
- VIP cabin:
- Located at the bow, it is accessed via the central corridor
- Openable double bed
- Mattress, pillows and bedspread
- Wall units
- One wardrobe per side
- Suitable for TV installation
- Panoramic windows with openable portlights
- Wooden Venetian blinds
- Hatchway
- Reading lights
- Doors and frames in wood essence
- Direct access to head
- VIP head:
- Access from VIP cabin
- Shower with panel
- Shower column and mixer taps
- Washbasin with top
- Round portlight
- Synthetic teak floor
- TECMA toilet
- Roller-type curtains
- Head accessories
- Wall unit above washbasin with mirror
- Corridor:
- Fabric wall upholstery
- Carpeted floor
- LED lighting
- Crew room (OPT)
- Crew cabin:
- Access from transom, via manually moved door
- One single bed (version with two beds instead of aft storage is available Mattresses, pillows and bedspreads
- Cabinet with electric panel
- Wooden Venetian blinds
- LED spotlights
- Laminated furniture
- Crew head:
- TECMA toilet
- Sink
- Mixer tap with pull-out shower head
- Head accessories
- Shower curtain
- Shower
- Mirror
- Show more

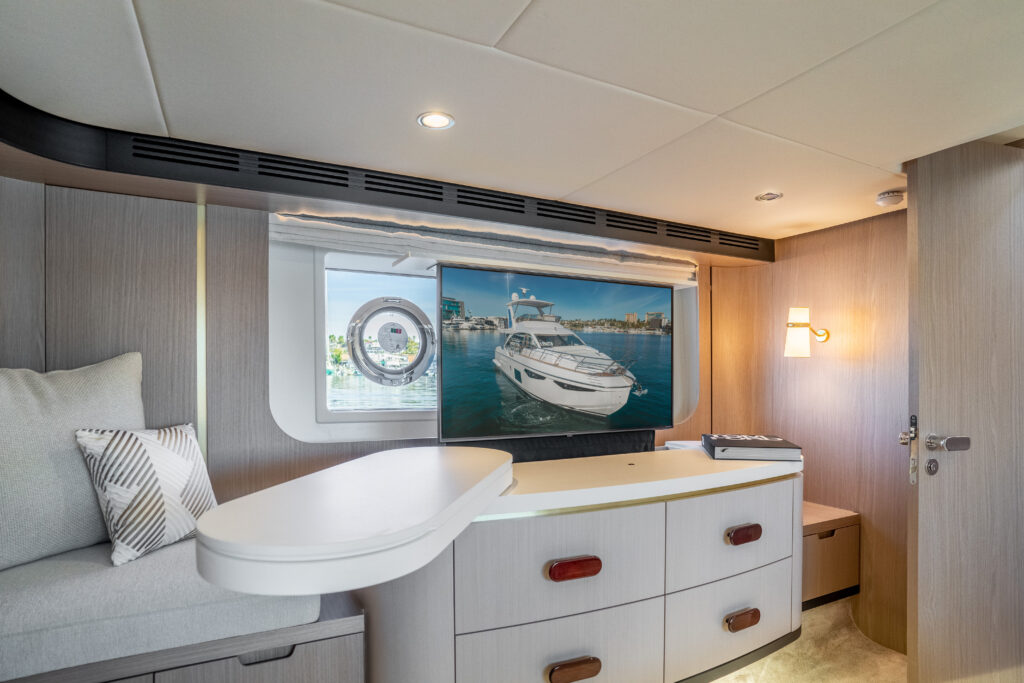

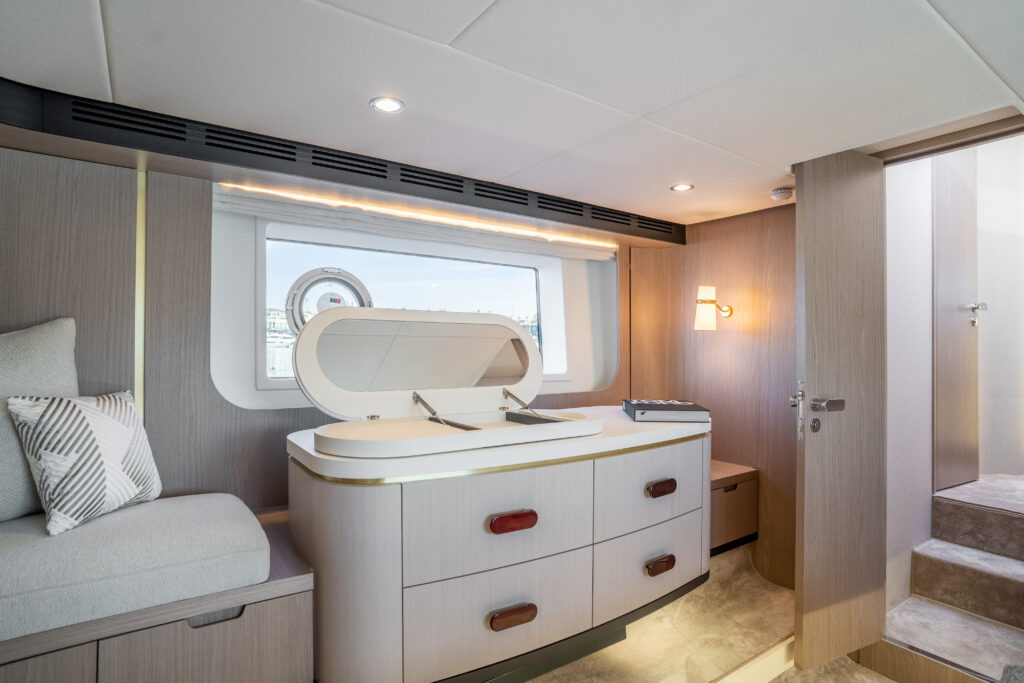

Cabins
- Master:
- Located midship
- Double bed with locker accessed from above
- Mattress, pillows and bedspread
- Chest of drawers
- Carpet
- Wooden Venetian blinds
- Doors and frames in wood essence
- Direct access to owner's head
- Reading lights
- Suitable for TV installation
- Large hull windows with built-in portlight
- Owner's Head:
- Access from owner's cabin
- Separate shower
- Shower column with soap dish and mixer taps
- Washbasin with top
- Synthetic teak floor
- TECMA toilet
- Round portlight
- Venetian blinds
- Head accessories
- Wall unit above washbasin with mirror
- Large storage area behind toilet
- Air extractor
- Guest Cabin:
- Located on starboard side
- Fixed single beds
- Central bedside table
- Wardrobe on bulwark
- Carpet
- Wooden Venetian blinds
- Fix window with openable round portlight
- Reading light
- Guest/Day Head:
- Access from corridor
- Shower with panel
- Shower column and mixer taps
- Washbasin with top
- Round portlight
- Synthetic teak floor
- TECMA toilet
- Roller-type curtains
- Head accessories
- Wall unit above washbasin with mirror
- VIP cabin:
- Located at the bow, it is accessed via the central corridor
- Openable double bed
- Mattress, pillows and bedspread
- Wall units
- One wardrobe per side
- Suitable for TV installation
- Panoramic windows with openable portlights
- Wooden Venetian blinds
- Hatchway
- Reading lights
- Doors and frames in wood essence
- Direct access to head
- VIP head:
- Access from VIP cabin
- Shower with panel
- Shower column and mixer taps
- Washbasin with top
- Round portlight
- Synthetic teak floor
- TECMA toilet
- Roller-type curtains
- Head accessories
- Wall unit above washbasin with mirror
- Corridor:
- Fabric wall upholstery
- Carpeted floor
- LED lighting
- Crew room (OPT)
- Crew cabin:
- Access from transom, via manually moved door
- Two single beds
- Mattresses, pillows and bedspreads
- Cabinet with electric panel
- Wooden Venetian blinds
- LED spotlights
- Laminated furniture
- Crew head:
- TECMA toilet
- Sink
- Mixer tap with pull-out shower head
- Head accessories
- Shower door
- Shower
- Mirror
- Show more
Electrical
- Electric system:
- Voltage levels on board
- -220 V AC systems, 50 Hz
- -24 V DC systems power supply
- -24 V DC motor systems power supply
- -24 V DC from battery sets
- -12 V DC through voltage reducer
- -specific power supply for VHF
- Galvanic current insulation:
- Zinc anodes
- Generator:
- 21.5 kW -50 Hz generator Shore power sockets
- One shore power socket 220 V - 50 A
- Batteries:
- Six batteries for service utilities 90 Ah - 24V-270Ah
- Eight batteries for engine start-up 90 Ah - 24V-270Ah
- One battery for generator 70 Ah - 12 V
- All the sets are controlled via battery cutout switches
- Battery charging:
- One electronic battery charger 24 V - 80 A for start-up and service sets
- One electronic battery charger 12 V - 10 A for generator
- Electric panels:
- Two main DC boards, one in the engine room and the other in the saloon
- Two AC boards, one in the saloon and the other in the crew cabin
- Emergency panel in cockpit (with boat cut-off controls)
- Power circuit breakers with fuses for protecting the utilities
- Lighting:
- LED spotlights
- Electronic instruments:
- For a detailed list of alternative/additional equipment available, please refer to the optionals price list
- Show more
Bilge Systems
- Bilge system:
- Three automatic 24 V electric pumps - flow rate 224 l/min (59.17 US.liq.gal./min) - with possibility of manual control, located in crew cabin, engine room, owner's cabin. Each pump has a double high-level switch connected to an optical/acoustic alarm in the wheelhouse
- Two manual pumps - flow rate 49 l/min (12.94 US.liq.gal./min) - which suck from the three watertight compartments through a flow deviator: one located in the cockpit, it sucks from crew cabin and engine room, one located in the crew cabin
- Emergency system for engine room bilge drainage via derivation from engine cooling pump - capacity 334 l/min (88.23
- Fire extinguishing system:
- Controlled from emergency panel in cockpit
- Engine battery cut-out
- Closure of fuel delivery solenoid valves
- Extractor stop
- One dry chemical cylinder in the engine room
- Fuel system:
- Two tanks, 1400 l (369.84 US.liq.gal.) each, total capacity 2800 l (739.68 US.liq.gal.), in aluminum
- Refueling plugs with cover
- Two fuel fills on deck walk arounds, and two vents on bulwark
- Tanks linked by a 1” crossover, and manual valves
- Optical level gage on starboard tank
- Status level gage on port tank
- Fuel delivery shut-off via 1” 24 V solenoid valves with remote control, or local manual valves
- Water/diesel separators for engines (single type)
- Diesel filter for generator (single type)
- Fresh water system:
- One 750 l (198.1 US.liq.gal.) polypropy- lene tank
- One water fill cap on starboard walk around and a vent on port side bulwark
- Pressure pump
- One 60-liter (15.84 US. liq.gal.) water heater with 220 V (or 110 V) electric heating System that can be isolated by ACORN manifolds
- Hot and cold water line in the galley and all the heads, via single control mixer taps Cold water line in engine room, on flybridge, and on stern platform
- Black water system:
- TECMA toilet
- Toilet flushing system with fresh water
- Black water outlets
- Macerator pump
- Discharge into tank
- One 175 l (46.2 US.liq.gal.) polyethylene tank
- Tank drainage also via suction point on deck walk around
- Gray water system:
- One 175 l (46.2 US.liq.gal.) polyethylene tank
- Head sink discharge into tank
- Galley discharge into tank
- 24 V loading pump, of the membrane type with control in the wheelhouse
- Engine room exhaust system:
- Two engine underwater exhausts with GRP structural ducts
- Minimum bypass on bulwark
- Stainless steel manifolds (insulated)
- Seawater system:
- Two 3" engine seawater intakes, with shut-off valve and metal mesh filter
- Two seawater intakes, 1” for auxiliary services (generator and A/C), with shut- off valve and metal mesh filter
- Ventilation/extraction:
- Two air intakes with separator filters
- Two 24 V extractors
- Engine room:
- Access from cockpit
- Engines assembled on a silent block
- Sound-proofing
- Other systems:
- One electric steering system
- Two 24 V automatic trim controllers (intruder)
- Air conditioning system (OPT):
- CONDARIA type - 220 V - 50 Hz
- World version 72,000 BTU (+ 6200 BTU for crew cabin, OPT): - One compressor, 72,000 Btu (with inverter)
- Equipment:
- One telescopic boat hook
- Five mooring lines
- Fender lines: 24 m (78' 9")
- One anchor chain stopper
- Eight fenders
- Eight black fender covers
- One flybridge instruments cover
- One Owner's manual
- One AZIMUT document folder
- One AZIMUT warranty service booklet
- One set of stainless steel cutlery
- One set of porcelain plates
- One set of glasses
- Four floating keyrings
- One large bag with logo for manuals
- One remote control holder with logo
- One shower pipe storage bag
- One stainless steel scheduled maintenance kit
- One pin wrench for locking stainless steel pins
- Show more
Included Options
- Advanced Package:
- Additional control for electric searchlight
- Chaincounter in main helm
- Decor upgrade
- Double racor filters
- Electric winches
- Manouvering Joystick
- Mesh covers for windows
- Miele Appliances (upgrade for oven and cooktop)
- Predisposition for watermaker (salt water - fresh water - electrical)
- Spare conduits
- Additional Seakeeper control station on fly Motorized shore power cord reel Seakeeper stabilizers 9
- Stern thruster 6.5 kw
- Cockpit furniture with refrigerator
- Cockpit table with Corian frame and synthetic marble insert
- Compass on fly
- Co-pilot seat on fly
- Electric awning in cockpit
- Flagpole
- Foredeck lounge with convertible bench/sunbed in simil leather Olympus & table with synthetic marble insert
- Hard Top
- Lounging on aft fly: L shaped sofas plus love seat and coffee table
- Painted boot stripe
- Spreader lights on aft fly (n.6)
- Stern teak steps
- Sun shade sail on bow with removable poles
- Underwater lights (n.2)
- Coffee table in salon
- Co-pilot seat in main helm
- Crew cabin with two beds (with air conditioning)
- Deluxe lighting package
- Extendable dinette hi-lo table (automatic)
- Fabric curtains in cabins
- Mosquito nets for portholes
- Nightstands Jewelry Boxes - by Achille Salvagni (specify if blue or bronze color) Safe in master cabin
- Set of cooking pans
- Set of linen for cabins
- Set of linen for crew cabin (two beds)
- Set of towels for one person with Azimut logo
- Toilet with bidet faucet feature (Specify quantity and position)
- Vanity furniture in master cabin
- Wooden floor in dinette (colour varies depending upon main furniture wood selection)
- Wooden floor in salon (colour varies depending upon main furniture wood selection)
- Barbecue on fly
- Icemaker on fly
- Washerdryer (combo unit)
- Winecooler in galley
- Raymarine Platinum Package
- Raymarine Videocameras (3)
- Audio/Video Package with Antenna SAT HD7 USA and decoders (hi-lo system for TV in salon included)
- USB port in helm
- USB port in flybridge
- Handrail in stairs with simil leather insert Simil leather insert on main deck ceiling Upgrade all galley tops to quartz
- Show more
Disclaimer
- Exclusions:
- All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.
- Disclaimer:
- The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Additional Photos & Video
ADDITIONAL OPPORTUNITIES
Seattle, WA
49' 2020 Tiara
This vessel has been owned and operated by and experienced yachtsman and fully maintained by professionals. Her beautiful lines and shimmering hull will delight …
San Diego, CA
- $300,000
54' 1995 Mediterranean
A remarkable fishing vessel with a range of impressive features. The cockpit controls, bow thruster, bow and cockpit live bait tanks, outriggers, and …
Newport Beach, CA
- $1,300,000
45' 2015 Palm Beach
A simply magnificent vessel, whose Palm Beach heritage is respected and sought after world wide, offering the smoothest ride on the water and extremel …
Fort Lauderdale, FL
- $777,000
42' 2019 Boston Whaler
A gorgeous 2019 42 Boston Whaler Outrage in outstanding condition located in Boca Raton. The vessel is captain maintained with an "open checkbook" min …
