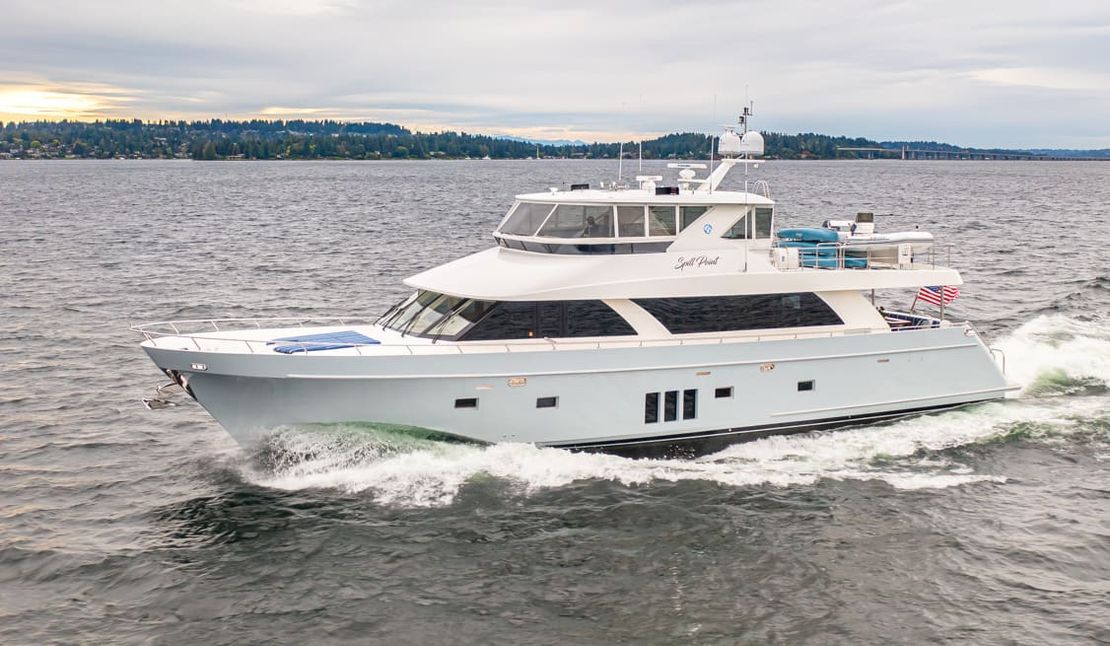

GORGEOUS 2012 85′ Ocean Alexander – NEWLY LISTED
Be among the very first to view this sensational 85′ Ocean Alexander Motor Yacht. Locally owned and professionally maintained, she will exceed your expectations in almost every way. The highly regarded Ocean Alexander brand is widely known for exceptional and robust build quality, sustainability and high value at time of re-sale. SPILL POINT exudes this and with her recent upgraded hull paint, her complete Garmin electronics suite addition.
THE REPRESENTATION
- HOMETOWN
- COLUMBUS, OHIO
- FAVORITE BOATING DESTINATION
- ROCHE HARBOR, WASHINGTON
- FIRST BOAT SOLD
- 21' BOSTON WHALER

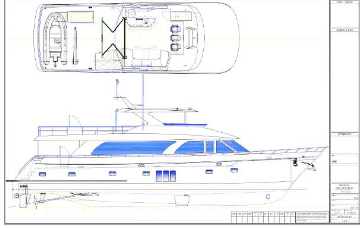

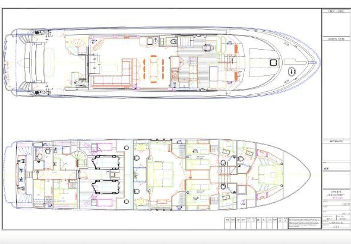

LAYOUT & VESSEL DIAGRAMS
Highlighted Details & Specifications
Construction
- General:
- Vinylester resin
- Carbon fiber-infused composite hull and decks
- Airex® C70.90 PVC foam construction above waterline
- Extra storage in bilge elongation in its class for great impact strength. Sound and temperature isolation w/ self extinguishing properties)
- Longitudinal and lateral fiberglass stringers filled with high density foam
- Sea chest for raw water intakes
- Reinforced collision bulkhead
- Fiberglass with infusion and “vacuum bag technology”
- White gelcoat on exterior expect PU hull
- Frameless window
- All exterior hardware to be S/S 316 or better and to manufacturer requirements
- Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. ultimately resulting in vibration/sound levels that are industry leading and at times 1/2 to 1/10 of ISO-6954 requirements.
- Extra storage in bilge
- Sconces ( MSR : Boyd 9893(2) ; 3 Guest cabins : Boyd 10028(4) ; Heads : Boyd 10138(10) ; Salon : Lighting designs 700WSHUD2WS(2))
- Flexible Ribbon LED strip throughout
- Sapelli paneling and cabinetry
- Soft vinyl headliners
- Designed pull handles for drawers & cupboards
- Wood for window frames and bull-nose
- Majilite Fabric for lower walkway walls
- Concealed hinges throughout interior cabinets w/ auto soft-closing function that prevents a kitchen cabinet door from slamming, as it slowly and silently brings the door to a closed position
- Mattresses for berths (independent his/her construction allowing for disturb free movement during sleep)
- S/S hardware
- Hull/Bottom:
- Black boot top stripe
- Interior structural components all bonded to hull
- Two coats of Seahawk primer, hi-build epoxy barrier coat and covered with three coats of Seahawk self-polishing bottom paint
- Bronze through-hull fittings
- Deck/Pilothouse:
- White non-skid fiberglass decks
- Deck, superstructure and fly bridge with aluminum I-beam reinforcements
- Fiberglass settee with oval teak sliding table on aft deck
- Swimming ladder
- Sunbrella® fabric (8521-0000) on outside cushions
- Covers for outside cushions, barbecue and FB dash
- Black mesh for front windows
- Show more
Mechanical
- Main Engines:
- MTU® 10V2000 1600HP engines
- Two control stations: FB & PH, with complete engine-instrumentation with lighted, modern switches
- Engine hour meter
- Electric engine control
- Engine alarm system (oil and temperature)
- Full Delta-T computer system with auto shutdown & auto computer control suction & exhaust fans
- Wet exhaust and including water temperature, oil pressure, hour meter and start/stop controls in engine room and remote start/stop controls in the pilothouse
- Propeller shaft Aqua 22 HS. 22 HS is a high grade austenitic alloy stainless steel that provides superior corrosion resistance along with excellent toughness and high strength. A no compromise approach adopted by navies around the world
- Underwater exhaust system
- S/S rail on side of engine
- Oil changing system for both engines and gensets
- Generator:
- 2 ea. Kohler 32 KW gen sets (approx. 1000 hrs each)
- Generator exhausts are water drop type
- Generator sets are resiliently mounted and installed with sound shields
- Generators with gas/water separators
- Bronze through-hull fitting
- Windlass/Mooring:
- Hydraulic windlass, Maxwell® VWC4000C
- Stainless steel plow type anchor 125 lbs w/ 300ft anchor chain (3/8" HT) & chain stopper
- Chain counter
- Two Maxwell® VC2500 vertical electric rope winches for aft deck
- Thruster/Stabilizers:
- ABT® hydraulic bow thruster 25HP, stern 25HP
- ABT® hydraulic stabilizers ( 9 Sq. ft. x 2 ) with one monitor in pilot house
- Second stabilizer monitor on Flybridge
- Steering/Control:
- Hydraulic steering system by Hynautic/Teleflex power steering system
- S/S rudders
- Bronze struts w/ cutlass bearing
- High performance, computer-designed and machined class “S” propellers
- Zincs on rudders, shafts
- Steering wheel inside & FB
- 3 valves in steering system for autopilot
- Stidd® Electric helm chair in PH
- 3 ea. Stidd® Mechanical helm seats in FB
- Dripless engine shaft seal logs
- Dripless seal for rudder post
- Third control in aft deck (engine and thruster)
- Other:
- Spare conduit running from engine room to PH, engine room to FB and engine room to FB overhang (under)
- Color-coded piping for fuel, water and hydraulic system
- Nautical Structures Hydraulic davit
- Fire BoyTM Fire extinguisher system with engine-
- shutdown feature
- Heavy-duty Kahlenberg® dual air horn
- All engine room and machinery spaces shall be prime and top coated with polyurethane paint system
- Aluminum diamond plate flooring in engine room
- Hepworth® heavy-duty commercial grade pantograph windshield wipers & washers w/ intermittent function
- Detailed stringers in engine room and lazarette
- S/S cap on transverse stringers in central walkway
- 2HP air compressor in engine room w/ multiple quick disconnect outlets
- Humphree® Interceptor with automatic trim optimization system (ATOS)
- GulfcoastTM Fuel polishing system based on US Military Abrahams-M1 Tank design
- SeagullTM water purifier (ADEX design award winner w/ filtration to 0.1 microns & EPA certification for microbiological purification)
- Show more
Plumbing
- Fresh Water System:
- HeadhunterTM pressure fresh-water system
- 2mm thickness 316 S/S water tank w/ sight gauge
- Fresh water outlet with hose for engines & generators
- Fresh water wash down, at bow & stern & boat deck
- Hot Water Heater:
- 2 ea. 40-gallon water heater with high density fiberglass insulation w/ high efficiency heating element
- Fuel System:
- 4.5mm thickness 5052 Aluminum fuel tanks with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system
- Dual Racor® fuel/water separator with Y-valves for engine & generator
- Sewage Treatment System:
- Lighted bilge
- Holding tank gauge in PH
- Bilge/Discharge:
- Common drainage system for sink, shower, bilge & exterior deck
- Bilge pump in forward and aft of engine room
- Automatic bilge pump - The vessel shall be outfitted with automatic bilge pump with manual and automatic switches in each space as divided by watertight bulkheads. High water alarms will be mounted in each of these bilge zones.
- 24V shower sump pumps
- One manual bilge pump
- Dry bilge area arrangement in center of engine room
- Deck/Flybridge:
- Dockside water connection
- Both side fillers for water and fuel tanks
- Show more
Electrical
- Generator:
- 2 ea. Kohler 32 KW generators (approx. (1000 hrs ea)
- Battery:
- Heavy-duty batteries (house banks: 825 AH , engine batteries: 550AH, genset batteries: 490AH)
- Battery paralleling system with control switch
- Service battery switch
- New AGM house batteries (2020)
- Air Conditioning:
- Cruisair® compressors for central air conditioner, 6 units, total 146K BTU ( Reverse Cycle capable for operation down to 40)
- Refrigerant type is accepted worldwide under the Montreal Protocols
- Cruisair® remote and self-contained air conditioner w/ECU controls (Reverse Cycle)
- AC/DC System:
- AC outlets throughout
- Octoplex NEMA 2000 electrical control system. Based on military technology for remote activation and status reporting of all AC and DC breakers. Monitors all power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication, dimming and usage information with touch screen monitors that is user reconfigurable. Brown-out configurable control through auto load shedding is included where operator designated equipment (eg navigation and other essential systems) remains powered-on while automatically switching other systems off. Octoplex NEMA 2000 Vessel system monitor system. Provides main access doors, tank level, bilge level and battery monitoring of current, voltage and temp.
- Octoplex® system with AC/ DC distribution panels in PH & Crew
- Additional Octoplex® screen in MSR
- All primary AC & DC electrical wiring is appropriately labeled throughout the yacht
- GFI (110V) AC outlet with SmartLock feature for operation error protection which exceeds UL requirements
- Extra outlet on FB bar side elevation
- 24 Volt system
- Engine battery isolation switches
- Discover AGM Batteries with 40 degree to 140 degree operating temp and industry leading low self discharge rates 1 to 3%
- Shore Power Connector:
- 2 ea. Shore power receptacle 100+100AMP in transom w/115ft cable master & isobooster
- Lighting:
- 24V lights in all compartments
- 24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander that last over 100,000+ hours)
- AC/ DC lights with anti-explosion type in engine room
- Bonding System:
- Bonding system throughout
- The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers and pump bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent
- Convenience lights, lower deck and FB
- International navigation lights
- Inverter/Charger(s):
- Inverter/Charger w/upgraded 60AMP charger (3000W/70AMP). Allowing for “silent night/no generator ? inverting from DC Batteries to AC circuits (refrigeration, water pumps, select AC outlets, Audio/Video) + automatic switch for when AC power is available set to by-pass inverter
- • Battery charger (engine: 24V/60A , genset: 12V/25A )
- • Marine-grade, tinned copper wiring
- • Phone jacks at MSR & salon & PH
- • VimarTM switches and outlets
- • NEMA2000
- • Underwater lights(three)
- • ACR searchlight (RCL100D/24V) with 2 remotes FB
- Show more
Audio/Visual
- TV's/Audio:
- 22" TV above after deck bar
- Salon; LCD 40” TV with professional A/V system with IRrepeater and subwoofer
- Primary Stateroom; LCD 32” TV with professional A/V system with IR repeater and subwoofer.
- Guest Stateroom; LCD 22” TV & Blu-Ray disc player
- Audio stereo and video system with IR repeater
- Show more
Accommodations
- INTERIOR DÉĆCOR:
- Sconces ( MSR : Boyd 9893(2) ; 3 Guest cabins : Boyd0028(4) ; Heads : Boyd
- 10138(10) ;
- Salon : Lighting designs 700WSHUD2WS(2))
- Natural interior finish
- Wood flooring in PH and Galley, carpet flooring for salon, VIP, guest state rooms and MSR.
- Hanging lockers with dual-locking mechanism
- MaytagTM 2400A WW stacked washer/ dryer (Commercial quality, Energy star washer/dryer w/generous 2.4 cu. ft. capacity)
- Custom decor package

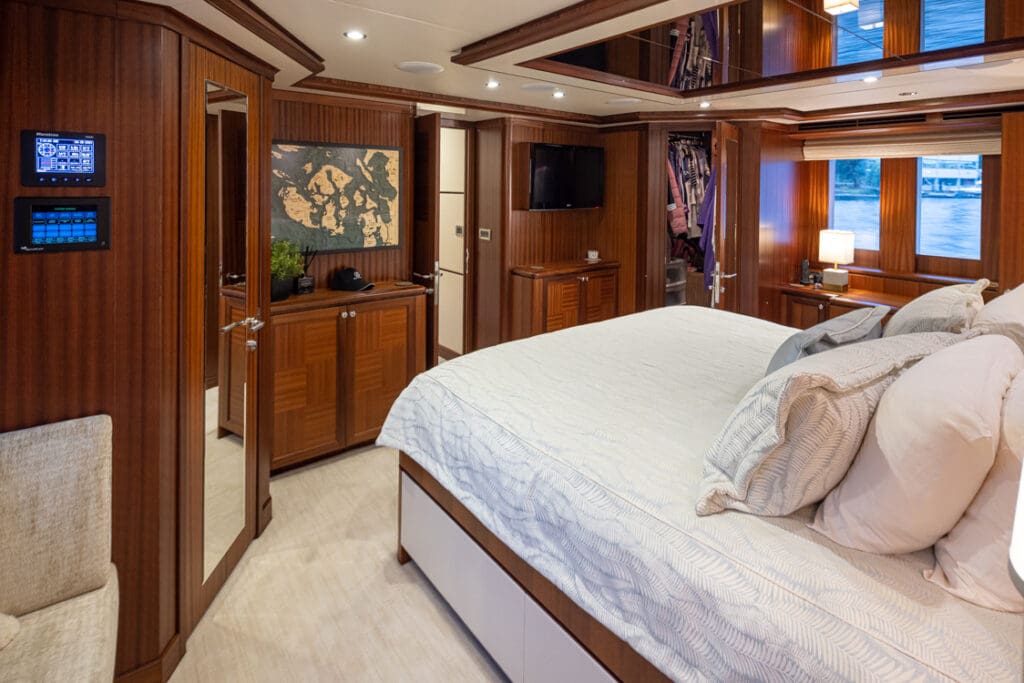

- PRIMARY SUITE w/King-sized berth
- Two nightstands with countertop
- Ultra-leather headboard
- Bureau and vanity on stbd. Side
- Safe in hanging locker
- Fixed windows on hull side
- Full-height, cedar-lined hanging lockers with automatic
- Dressing mirror
- Twin heads in two sides of shower
- Carpeted floor

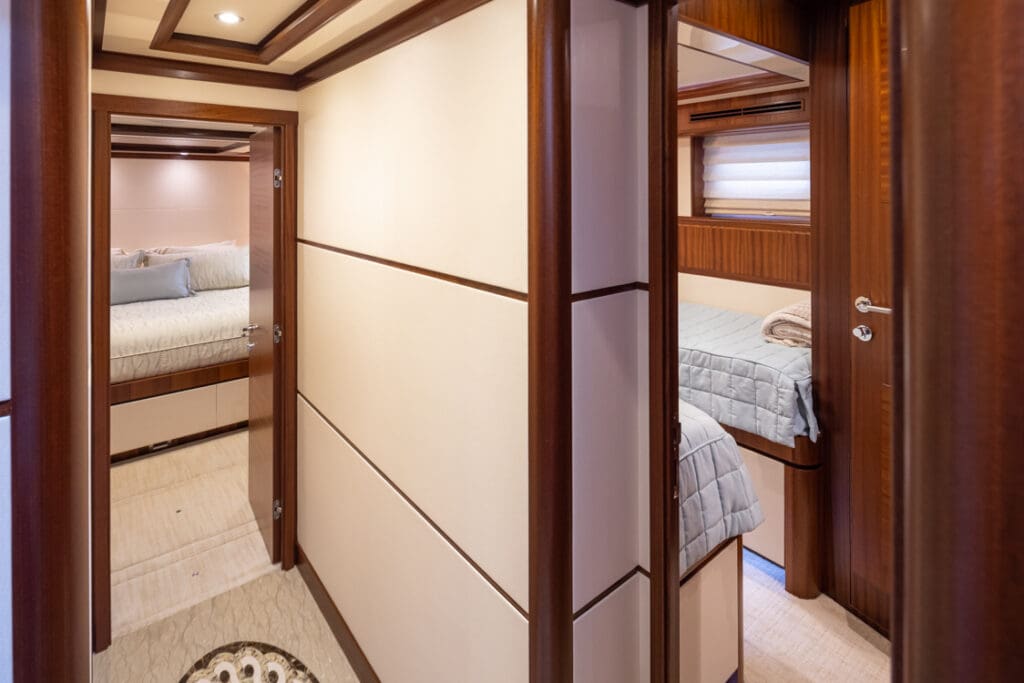

- VIP Suite wQueen-sized berth
- Side-by-side lower berths, fabric covered (Port guest stateroom)
- Dressing mirror
- Cedar-lined hanging lockers with automatic lighting
- S/S rectangular port light w/ privacy screen
- Head opposite starboard with stall shower (Port guest stateroom)
- Carpeted floor

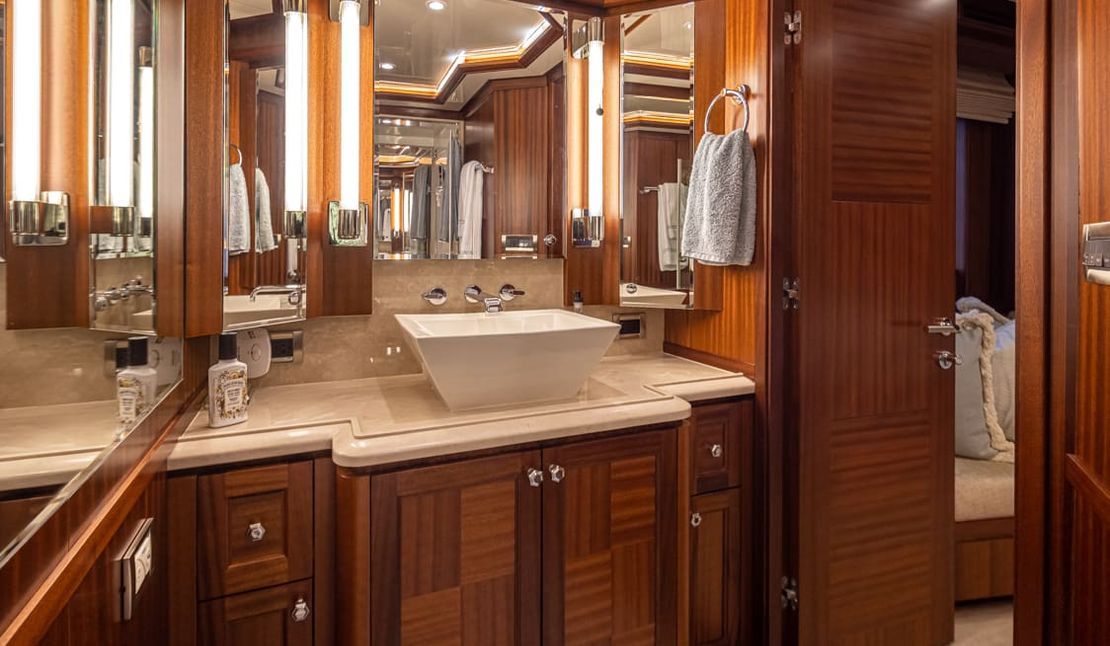

- Granite floor for heads(except CREW)
- Heated granite floors in PSR & VIP bathroom
- Wood walls & cabinets with customer selected granite or marble countertops
- China sinks
- CifalTM faucets for sink
- Kohler sinks in primary stateroom head
- Deca sinks in heads except master stateroom & crew heads
- Custom bathroom hardware
- Custom bathroom fixtures
- Air extraction in each head shall be by low noise extraction fans, switched separately from lights. Fans to discharge air outside
- One medicine cabinet
- TecmaTM toilet system
- Vent blower
- Seamless fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provide long term protection against moisture, water intrusion behind the shower panels - leading to foul odors and water damage
- S/S rectangular port light w/ screen
- Granite or Marble in shower floor and shower seat
- Crew Quarters shower door with Granite or Marble frame
- Mirrored cabinet door under head port light
- Day head on Main deck
- Show more
Main Deck/Flybridge
- Hardtop w/ dual hatches for ventilation and light
- 2” elliptical 316 Stainless steel handrails on main deck
- 1-1/2” 316 Stainless steel rails on FB
- S/S cleats & hawse holes
- S/S anchor roller
- S/S anchor light bracket
- Tempered dark tinted window glass ( 1/2” in Fwd PH ,3/8” other areas). Glass is Low-E glass which increase energy efficiency by 25%+ and is UV stabilized for reduction of fading and degradation of a yacht's interior and health of occupants due to harmful UV rays
- Fiberglass staircase from cockpit to FB
- Wet bar with sink and bar refrigerator on aft deck
- Pilot house w/L-shape dinette

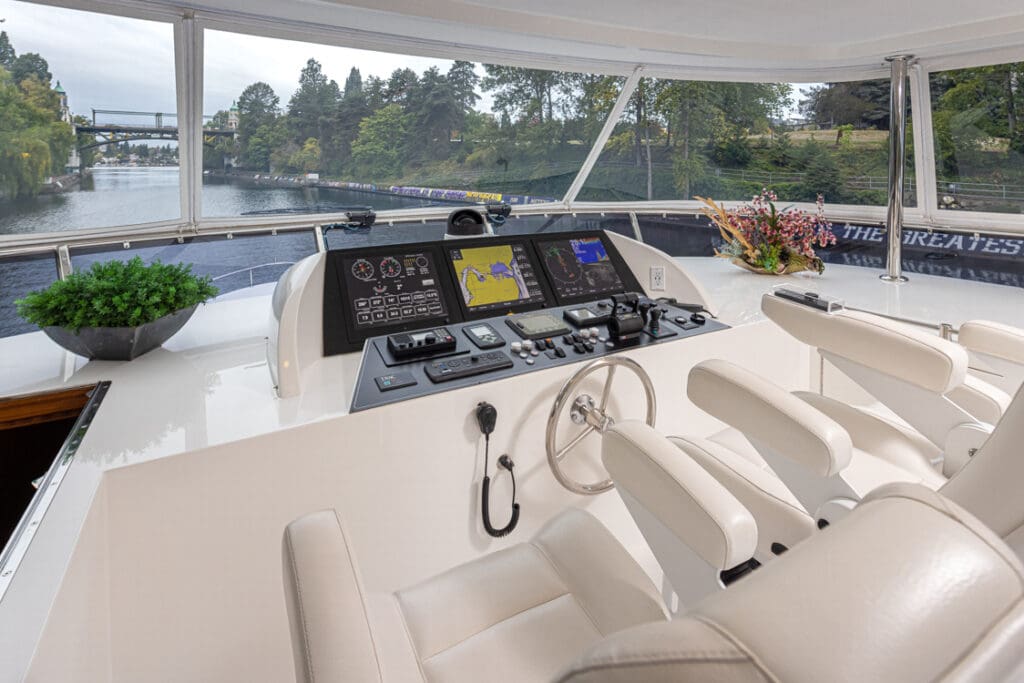

- Sunken and extended dash with instrumentation
- FB seat w/ storage underneath
- Water tight doors at PH
- Four U-shaped rails on swim step
- Boat deck sliding hatch
- Side boarding gates at aft deck
- Bar with grill, refrigerator & sink on FB
- Custom strength FB internal structure
- Custom sun pad in bow & FB
- Electric awning in hardtop
- Teak swim plateform w/ teak steps
- Teak deck for cockpit and side walkway to midship
- S/S transom gates for pets/children protection
- Wood tabletop
- Windshield defrosters
- Full EZ2C FB enclosure w/sliding panels and windscreen with 2 ea. ws wipers/ washers.
- 6 Person life raft
- Life Sling
- 15' Novurania RIB w/70 hp Yamaha ob
- S/S kayak rack system
- 1750 lb Nautical Structures davit w/power rotation
- 2 ea. CAL deck docking stations
- Show more
Pilot House/Galley

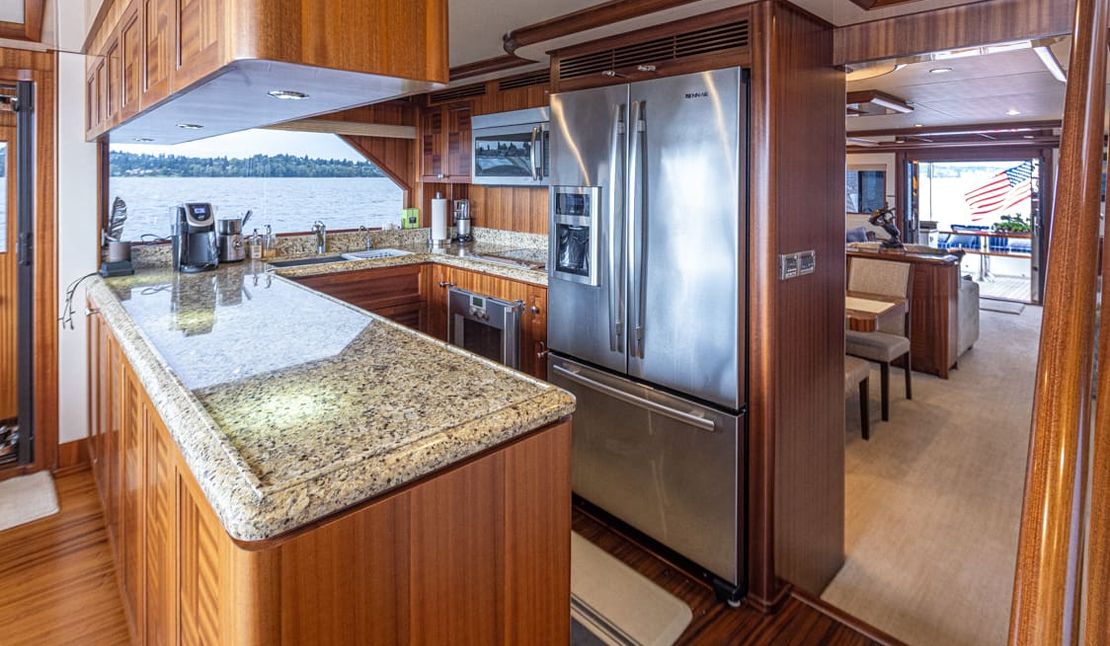

- GALLEY:
- Customer selected granite or marble for galley countertops
- Wood cabinetry
- Storage cabinets
- Custom plate holder drawers
- Appropriately sized (or over-sized) silverware and Cutlery drawers FrankeTM Double sink with pull out faucet
- “Drawer type” shelves in large galley cabinet
- Overhead dish locker fwd
- Overhang cabinet in galley
- WhirlpoolTM garbage disposal
- 36” JennAirTM Custom Panel French DoorTM Refrigerator
- 30" JennAir Over-the Range Microwave with Speed-Cook Convection
- 30” JennAirTM electric cook top
- JennAir TM/ Gaggeneau electric oven
- 15” WhirlpoolTM trash compactor
- 24” Fisher/ Paykel TM dishwasher
- Custom S/S pot holder for cooktop
- Show more

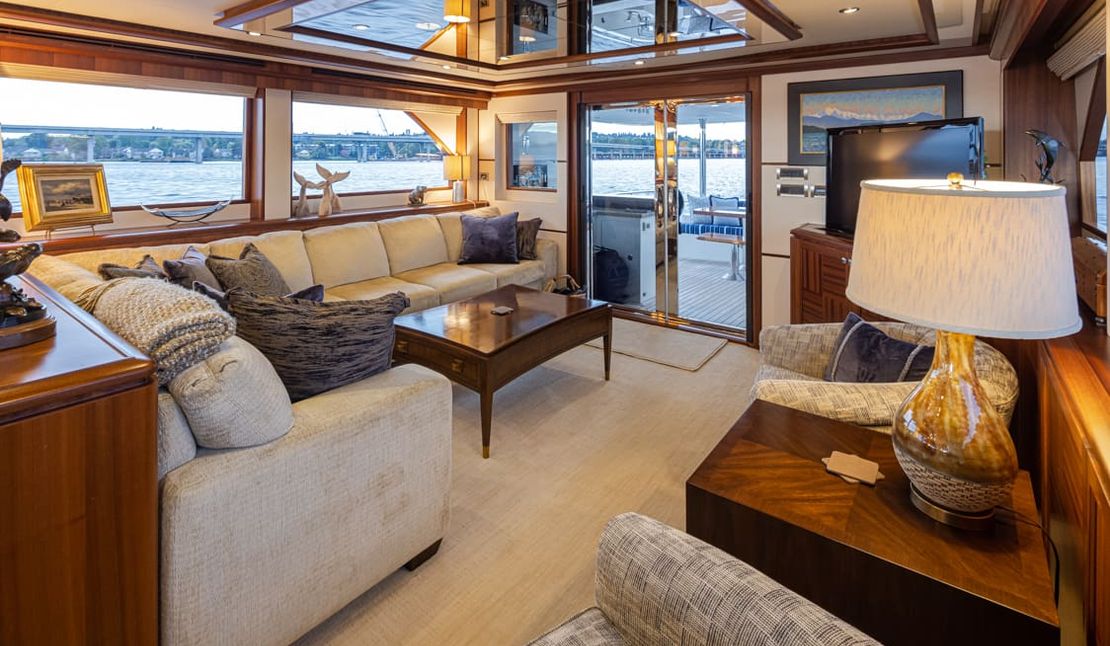

Salon
- Loose end tables
- Phantom screen (for insects & pollen protection) with dedicated wood box for door
- 24V LED lights (Aerospace quality , specially tuned color temperature for Ocean Alexander that last over 100,000+ hours)
- Salon table
- Salon sofa
- Carpeted floor
- Wood paneling and cabinetry
- Sub Zero wine cooler
- Show more
Optional Equipment
- Full Delta-T computer system w/auto shutdown & auto computer control suction & exhaust fans
- Two 100 amp shore power cords w/Glenndinning cable master, includes isoboosters.
- Gulfcoast fuel polishing system
- Seagull water purifier
- Inverter pkg w/60 amp charger
- Electric awning in hardtop for sundeck
- 3rd Stidd helm chair
- Teak swim platform
- Teak deck for CAL deck and side decks to midships
- S/S transom gates
- 3 ea. underwater lights
- ARC searchlight (RCL100D/24V)
- Spreader lights under mast wing
- 22" TV above CAL deck bar
- 2 ea. Maxwell VC2500 24vdc warping winches aft
- Extra outlet at flybridge bar
- Additional Octoplex screen (PSR)
- Granite floors in (PSR, PG, SG, VIP, day head)
- Heated granite floors in head (PSR, VIP)
- 2nd stabilizer monitor on Flybridge
- Sub Zero 315W/S wine cooler
- Sconces in sleeping cabins
- Upgrade to Cifal faucets in heads
- Upgrade to Deca and Kohler sinks in heads
- Danze bar faucet in lieu of Grohe
- 24" Magic Chef electric BBQ on FB deck
- Electric Stidd helm chair in PH
- Extra bilge storage
- Interior Design/Decor pkg.
- Show more
Recent Additions & Upgrades
- New Garmin 8700 black box electronics suite w/4 ea. 19" Seatronic sunlight screens
- New Garmin 4' open array radar
- New Garmin depth sounder
- New Furuno SC33 Satellite compass
- Upgrade Maetron/Octoplex monitoring system(s)
- New Fire/CO detection system
- New Garmin Echomap plotter/sounder for tender
- New custom s/s kayak racks on flybridge and transom step
- Light grey hull paint at Platypus Marine (12/19) w/custom non-skid applied to the bridge deck
- Recent bottom paint
- Mechanical services (5/21)
- New Meile w/d in guest companionway forward
- New inner spring mattresses in all cabins (2019)
- New carpets (2019)
- Added 2nd 40 gallon hot water heater
- New Jennair refer/freezer in galley
- New Life Line AGM batteries (2020)
- New high pressure anchor chain wash down system
- Show more
Disclaimer
- Exclusions:
- All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.
- Disclaimer:
- The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
- Show more
Additional Photos & Video
ADDITIONAL OPPORTUNITIES
Seattle, WA
- $2,795,000
78' 2012 Ocean Alexander
Take Five is a wonderfully well cared for Ocean Alexander 78' Sport Bridge. It is being offered by experienced owner operator who was only the second …
Newport Beach, CA
- $1,950,000
75' 2007 Johnson
Owned in a Single Asset Transferable LLC Newport Beach main channel slip may be available to buyer if approved by marina. Avalon Mooring ma …
San Diego, CA
- $2,200,000
105' 1996 Nordlund
Here's your chance to own a custom yacht fisherman ready to go! Fully loaded and captain maintained makes this an ideal yacht for anyone serious a …
Newport Beach, CA
2024 Ocean Alexander 27 Revolution 27R04
Ocean Alexander and Evan K. Marshall have once again partnered together to masterfully combine world-class engineering with extraordinary design. Introd …
