Description & Details

With the 85 Ocean Alexander, the motoryacht has been redefined, combining classic semi-displacement hull design with contemporary elegance. Equally perfect for a family sport weekend or a private escape to sea and sun, the 85’s genius is in the details.

Her interiors offer an abundance of light, space and luxury. Finishes and fittings are the same as those in exclusive residences throughout the world. Large windows let the sun spill in and create dramatic panoramas wherever you go. The 85 supplies ample room for guests to roam at parties, and quiet below decks when you need a break from all the activity.

While the 85 Ocean Alexander marks a new era in design, it still brings Ocean Alexander’s acknowledged heritage of engineering for safety, performance and comfort.

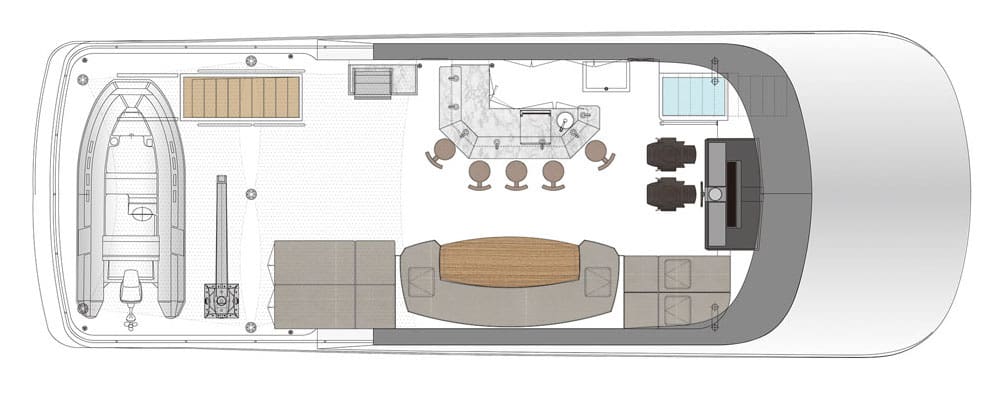

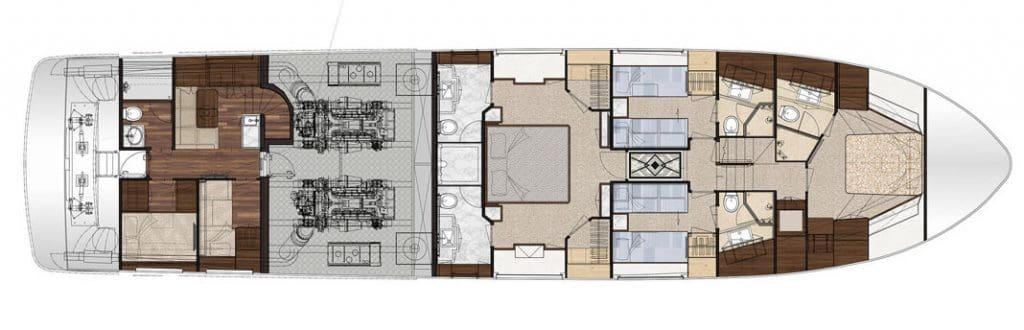

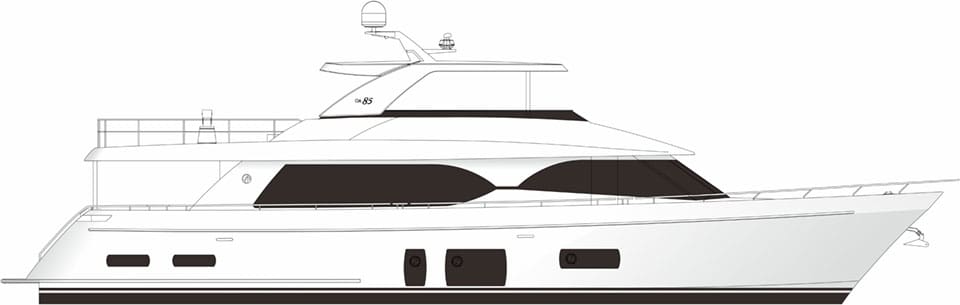

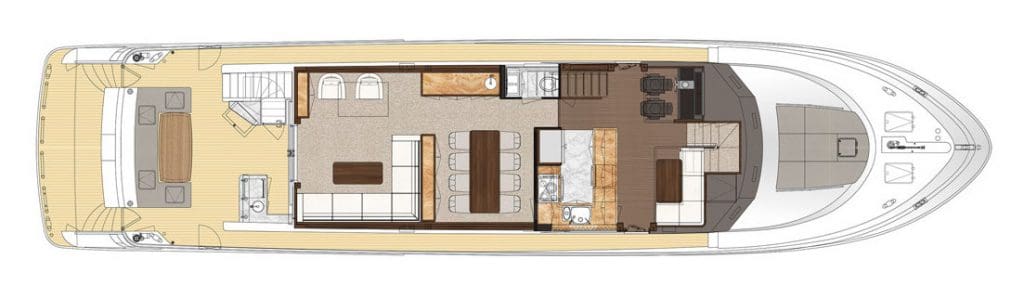

LAYOUT & VESSEL DIAGRAMS

85 Ocean Alexander Motoryacht
85 Ocean Alexander Motoryacht
85 Ocean Alexander Motoryacht
85 Ocean Alexander Motoryacht
Construction
  • GENERAL:
  • • Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting in vibration/ sounds levels that are industry leading and at times 1/2 to 1/10 of ISO-6954 requirements (Unique OA feature)
  • • Longitudinal and lateral fiberglass stringers filled with high density foam
  • • All exterior hardware to be S/S 316 or to manufacturer requirements
  • • Fiberglass with infusion lamination manufacturing technology
  • • Frameless window
  • • Vinylester resin with high-density structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. (Usually only found in vessels 100’+)
  • • Reinforced collision bulkhead
  • • Weather-tight bulkheads with further sound and temperature insulation
  • • Painted exterior surface with professional grade Alexseal polyurethane paint and epoxy based primers. Highest gloss and color retention compared with gelcoat or other paint brands. Guarantee color match by Alexseal.
  • No fading, yellowing and minimum maintenance with no annual compounded necessary on exterior paint. For first 3 years just use soap and water (Unique OA standard feature, not an optional upcharge like competitors).
  • • Marine grade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and “abrasive” sounds while underway. Also allows for one of the largest uninterrupted
  • glass/window spans in the industry. (Unique OA feature)
  • • Use of cross-knit directional carbon fiber in high stress area for added structural integrity and torsional strength
  • • Fiberglass staircase from cockpit to FB w/teak steps
  • HULL / BOTTOM:
  • • Black boot top stripe
  • • Interior structural components all bonded to hull
  • • Three coats of Seahawk primer, hi-build epoxy barrier coat and covered with three coats of Seahawk selfpolishing bottom paint (Unique OA feature, optional on competitors)
  • • Bronze through-hull fittings
  • Show more
Mechanical
  • MAIN ENGINES:
  • • MTU® 10V2000 1600HP engine includes 2-year warranty
  • • Two control stations: FB & PH, with complete engine instrumentation with lighted, modern switches.
  • • Delta-T Intake/ exhaust fans with demister to eliminate moister from the intake air flow to keep machinery spaces dry.
  • • Manually controlled adjustable/reversible Delta-T® fans for engine exhaust located on superstructure instead of hull side. Maximizes water protection and salt spray, resulting in safer and lower maintenance ownership (Unique OA feature)
  • • Stabilizer with power take-off from both engines to provide redundancy (Unique OA feature)
  • • Engine hour meter
  • • Electric engine control
  • • Engine alarm system (oil and temperature)
  • • Complete engine instrumentation, two stations
  • • S/S rail on side of engine
  • • Wet exhaust and including water temperature, oil pressure, hour meter and start/stop controls in engine room and remote start/stop controls in the pilot house
  • • Dripless engine shaft seal logs
  • • Dripless seal for rudder post
  • • Ocean Alexander employs aerospace grade “autoclave” to make “hard coat” exhaust with AL-6XN alloys (used in Saturn V rocket nozzle). Ocean Alexander is unique in utilizing Military standards that ensures optimum and sustained performance in its exhaust system.
  • GENERATOR:
  • • Kohler® 32 KW genset includes 2-year warranty (2x)
  • • Generator exhausts to be water-drop type per “Centek”, “Marine Exhaust Co.” or equal. Reduces noise & vibration
  • • Generator set resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature)
  • • Generators with gas/ water separator
  • WINDLASS / MOORING:
  • • Hydraulic windlass, VWCLP4000
  • • Stainless steel plow type anchor 125 lbs. w/150’ anchor chain (3/8" HT) & chain stopper
  • • Chain counter
  • • Two vertical electric rope winches for Aft Deck (Standard versus competitors’ optional)
  • • Hands-free anchor chain wash system – allows for cleaning of chain during anchor operation (Unique OA feature)
  • STEERING / CONTROL:
  • • Hydraulic steering system
  • • S/S rudders
  • • Bronze struts w/ cutlass bearing
  • • High performance, computer-designed and machined propellers
  • • Zincs on rudders, shafts
  • • Interior steering wheel, Ultraleather wrap, exterior stainless steering wheel on FB
  • • Stidd® Mechanical helm chair in PH x2
  • • Two Stidd® Mechanical helm seats in FB
  • • Propeller shaft Aqua 22HS. 22HS is a high-grade austenitic alloy stainless steel that provides superior corrosion resistance (comparable to Aqua 22) along with excellent toughness and high strength (comparable with Aqua 17). A no compromised approach adopted by the navies around the world
  • OTHER:
  • • Stainless steel rails on side of engine and stainless steel engine mounting plates (Unique Ocean Alexander engineering affords industry leading torsional rigidity and engine alignment assurance. Further reducing vibration
  • and high torque pressures)
  • • Hydraulic 1750lbs davit
  • • Fire extinguisher system with engine-shutdown feature
  • • Oil change system for both engines and genset
  • • All engine room and bilge spaces shall be primed and top coated with polyurethane paint system
  • • Heavy-duty commercial grade pantograph windshield wipers & washers w/ intermittent function
  • • Color-coded piping for fuel, water and hydraulic system
  • • Heavy-duty Buell® air horn
  • • Aluminum diamond plate flooring in engine room
  • • Detailed stringers in engine room and lazarette
  • • Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free. Any moisture from condensation is evacuated outside the yacht to keep a clean and healthy cruising environment.
  • • Ocean Alexander design in oversized shafts, rudder and other drive train systems typically one-class larger than competition. Superior handling, longevity is ensured with Ocean Alexander drive-train systems.
  • Show more
Plumbing
  • FRESH WATER SYSTEM:
  • • Headhunter pressure fresh-water system
  • • 2mm thickness 316 S/S water tank w/ sight gauge
  • • Fresh water wash down, at bow & stern & boat deck
  • • Dockside water connection
  • • Two 40-gallon water heater with high density fiberglass insulation w/ dual high efficiency heating element that speeds heating by 50%
  • FUEL SYSTEM:
  • • 4.5mm thickness 5052 Aluminum fuel tanks with sight gauges and tested to International Standards 33CFR 510(a) w/ high and low fuel level alarm system
  • • Dual Racor® fuel/water separator with Y-valves for generator
  • • Filler for fuel tanks on both sides. (Unlike others where fueling is only possible on 1 side. This unique OA feature allows for concurrent and faster fueling & negates need to move boat to complete fueling)
  • • Fuel system with venting and “catchment system” designed for burps or overflow accidents (Unique OA feature. Often ignored by competitors which can lead to high fines and insurance cancellation)
  • BILGE / DISCHARGE:
  • • Common drainage system for bar sink, shower, bilge & exterior deck
  • • Bilge pump in forward and aft of engine room
  • • Automatic bilge pump - The vessel shall be outfitted with automatic bilge pump with manual and automatic switches in each space as divided by weather-tight bulkheads. High water alarms will be mounted in each of these bilge zones
  • • 24V shower sump pumps
  • • Dry bilge area arrangement in center of engine room
  • • Lighted bilge with built-in (when necessary) S/S ladder (Unique OA Feature)
  • Show more
Electrical
  • BATTERY:
  • • Heavy-duty AGM Batteries with 40F to 140F operating temp and industry leading low self-discharge rates 1 to 3%
  • • 100 AMP Charger
  • • Battery paralleling system with control switch
  • • Service battery switch
  • • Engine battery isolation switches
  • AC / DC SYSTEM:
  • • AC outlets throughout
  • • All primary AC & DC electrical wiring is appropriately labeled throughout the yacht
  • • GFI (110V) AC outlet in potential “wet” areas. In addition, entire boat is dual protected via ELCI Octoplex breakers. (OA is unique in the industry to provide dual protection
  • GFCI & ELCI)
  • • 24 Volt system
  • • Engine battery isolation switches
  • • Octoplex NMEA 2000 Network electrical control system. Based on aerospace technology for remote activation, control and status reporting of AC and DC breakers. Monitors power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication,
  • dimming and usage information with touch screen monitor that is user reconfigurable. Brown-out configurable control through auto load shedding is included where operator designated equipment (e.g. navigation and other essential systems) remains powered-on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitor system. Provides main access doors, tank level, bilge level and battery monitoring of current, voltage and temp. (Unique OA standard feature, not an optional upcharge like competitors)
  • • Shore power receptacle with Iso-Boost (2x) 100 AMP in transom with cable master (OA is unique in making this a standard vs. optional. Cleans & boosts questionable shore power to better protect sensitive equipment onboard.)
  • AIR CONDITIONING:
  • • Dometic® systems throughout, rated for “Extreme Tropical Climates” (with reverse cycle for operation down to 40°F water temp)
  • • Refrigerant type is accepted worldwide under the Montreal Protocols
  • • Where possible A/C exits from custom made ceiling panels hidden from view. Shortens A/C ducting thus improving efficiency and speed of cooling by over 20%. Also reduces dB reading by over 7 dB (Design cues from 135)
  • • Air-conditioning rated for Extreme Tropical climates (OA standard equipment, not an optional upcharge like competitors)
  • NAVIGATION PACKAGE (Standard versus competitors’ optional, savings valued at $100,000+):
  • • Garmin 8600 Series Black Box with 24” Touch screen (Two screens lower station, Two screens upper station)
  • • Garmin GRID remote input device installed on helm chair
  • • Garmin 25KW Open Array Radar
  • • Garmin Autopilot GHC20
  • • Garmin VHF and Card Reader
  • • Garmin Blackbox sounder
  • • Garmin AIS with NMEA GPS
  • • Garmin Marine Camera (2 in engine room and 1 aft deck)
  • • Triband HD7 with DIRECTTV® receivers
  • • Ritchie Compass 5"
  • • iPad with built-in Garmin App for navigational control/viewing via iPad
  • • Navigational electronics standard versus optional with competitors
  • N2KVIEW SAFETY & SECURITY MONITORING PKG:
  • • These security/safety automatic monitoring and alert abilities include using Apple iPad or Android for wireless access to operate, view, and alarm Octoplex data and navigation system with a fully customizable screen layout, and remote notification (cell phone) capability.
  • • These monitoring abilities include: Main Engines and Generators, AC Monitoring, DC House Bank Battery Monitoring, Engine Room Weather-tight Bulkhead Doors, Tank Levels, Fire System, Bilge Level (High-water), Exterior
  • Door Sensors (Unique OA standard feature, not an optional upcharge like competitors)
  • LIGHTING:
  • • 24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander)
  • • International navigation lights
  • BONDING SYSTEM:
  • • Bonding system throughout
  • • The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump
  • bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent
  • OTHER:
  • • Iso-Boost on (2x) 100 AMP Shorepower
  • • Iso-Boost Package for both shorepowers. ISO boosting isolates and boosts the boat’s AC electrical system against potentially dangerous shore power fluctuations. Eliminates needs for polarity alarm and galvanic isolators. (Standard versus optional with competitors)
  • Show more
Accommodations/Interiors, Audio/Video
  • SALON:
  • • Phantom screen (for insects + pollen protection) with dedicated wood box for door
  • • Evan K Marshall custom design salon furniture and sofa. Sofa includes concealed drawers for intelligence use of space and increase storage
  • • Custom-designed salon table
  • • 14” Sunpentown wine cooler inside cabinet
  • • Wood paneling and cabinetry in diamond wood grain pattern (where possible)
  • • Stone countertop at wet-bar and cabinets
  • • Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse. Incorporate (where possible) A/C outlet from ceiling, provides unobstructed view to outside (Design cues from 135, improved for 2016)
  • MASTER STATEROOM:
  • • King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement. Unique Ocean Alexander Feature)
  • • Two nightstands with stone countertop
  • • Stone countertop at TV cabinet and port/STBD cabinets
  • • Built-in vanity on starboard side and sofa on port side
  • • Safe in hanging locker
  • • Full-height, cedar-lined hanging lockers with automatic lighting
  • • Enlarged Master bathroom window with updated cabinetry to take advantage of additional 320% additional window visibility vs. previous port light
  • • Dual-sink head with shower and dimmable LED vanity mirror
  • GUEST STATEROOM/ VIP:
  • • Queen-sized berth
  • • Two single-sized berths w/sliding bunk
  • • Dressing mirror
  • • Cedar-lined hanging lockers with automatic lighting
  • • Head with stall shower
  • CREW QUARTERS:
  • • Largest crew quarters in its class with Ocean Alexander’s unique design, the crew quarters doubles as a Cabana. Allows for day head and rest/eat area for swimming/out of water activities without needing to access salon/main deck interiors.
  • • Cedar-lined hanging locker with automatic lighting
  • • Kitchenette (sink, microwave and refrigerator/icemaker)
  • • Storage locker
  • • Drawers under bunk
  • • Snap-on tool chest under work bench/Pullman berth
  • • Lazarette space increased by 28% via opening space under aft decking seating for additional storage. Shelf and sea-rails included.
  • HEADS:
  • • Wood walls & cabinets with stone countertops
  • • China sink
  • • Tecma™ toilet system throughout with unique Ocean Alexander proprietary “Toilet lock out” system. Provides “lock out” of flushing when holding tank is full. Prevents accidental spillage or “blow back” often found on competitor yachts. Tankage status and alarm is standard via N2KView monitoring system.
  • • Seamless fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrusion behind the shower (Unique OA feature)
  • • Shower door shall use “crystal clear” glass custom made for Ocean Alexander. Providing superior transparency and reflectiveness. Together with custom made for Ocean Alexander “minimalist and transparent water strips” provides a unique Ocean Alexander proprietary “Crystal Shower”
  • • Custom faucets for sink and shower
  • • Custom bathroom hardware
  • • Custom bathroom fixtures
  • • Air extraction in each head shall be by low noise extraction fans
  • • Stone flooring
  • GALLEY:
  • • New galley layout with cabinetry storage under stairs
  • • Stone countertops
  • • Wood panel and cabinetry with positive-latch doors or proprietary drop-lock drawers. Provides containment of stored objects while underway (Std. feature often ignore by competitor)
  • • Wood flooring
  • • Storage cabinets
  • • Elkay™ Double sinks with pull out faucet
  • • Overhead dish locker forward
  • • Overhang cabinet in galley
  • • Whirlpool™ garbage disposal
  • • 36” Jenn-Air™ Refrigerator
  • • 30" Jenn-Air Over-the Range Microwave
  • • 30” Jenn-Air™ electric cook top
  • • 30” Jenn-Air™ electric oven
  • • 15” Whirlpool™ trash compactor
  • • Jenn-Air™ dishwasher
  • INTERIOR DÉCOR:
  • • Wood paneling and cabinetry in diamond wood grain pattern (where possible)
  • • Interior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look. (Design cues from 135)
  • • Evan Marshall designed interior pilot station and display pod. With matching wood/Ultraleather and “floating” display pod. Ergonomically designed and laid out to enhance pilot experience/performance. (Design cues from 135)
  • • Windshield defrosters
  • • Weather-tight doors to side deck
  • • Phantom screen (for insects + pollen protection) with dedicated wood box for door
  • • Dedicated freezer forward of Dinette (Increase food storage for extended cruising ability)
  • • Pantograph doors in Pilothouse
  • • Carbon monoxide and smoke detectors
  • • Designer pull handles for drawers & cupboards
  • • Satin varnish for interior finish
  • • Fabric covered walls for lower walkway walls
  • • Concealed hinges throughout interior cabinets
  • • Hanging lockers with dual-locking mechanism
  • • Washer/ dryer (Commercial quality, Energy star washer/dryer)
  • • Concealed Chest Freezer in front of Dinette
  • • $50,000 décor allowance for carpet, bed spreads, and soft goods
  • • S/S hardware
  • • Flip-up additional storage fwd of dinette/under windshield
  • • USB power plug at lower helm and inside MSR nightstand
  • • Dedicated oversized drawer for golf club/sport rackets/bulky items storage under fwd stateroom berth
  • • Custom stone and S/S accent floor in foyer to MSR (Inspired by OA 135)
  • EXTERIOR:
  • • Hardtop with dedicated custom S/S ladder to navigational electronics (Standard versus optional with competitors)
  • • Removable ceiling panels on hardtop and main deck for ease of service.
  • • 2” elliptical 316L Stainless steel handrails on main deck, 1-1/2” on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater “grip strength” for safety and comfort (Unique OA feature)
  • • S/S anchor roller
  • • Fiberglass staircase from cockpit to FB
  • • Wet bar with sink, bar refrigerator-icemaker on FB or Aft Deck
  • • FB seat w/ storage underneath and high gloss table
  • • Teak deck for aft deck and walkway to midship
  • • Teak swim platform w/ teak steps
  • • Elec. S/S salon door to Aft Deck with safety light curtain that senses obstruction and protect for grandkids/pets. Also includes “foot-kick button” control for operation when both hands with full food trays/other items.
  • • Largest flybridge area in its class with Ocean Alexander’s “cab-fwd” design, the flybridge steering station is moved fwd to allow for better visibility and lengths the total flybridge area available for entertaining.
  • • Stainless steel bow and stern staffs
  • • Lighted OA logo
  • • Aft Deck shower, dockside water inlet
  • • Four U-shaped rails on swim step
  • • Side boarding gates at Aft Deck
  • • Sunpad on fwd deck
  • • Flybridge deck outboard storage increased by 54% via additional storage lockers on port and starboard where possible
  • • Anchor chute cover for added safety while anchor is not in use and increases usable surface area (Unique OA feature)
  • • Custom designed fender storage in lazarette
  • TURN KEY:
  • • Safety first aid kit
  • • Fenders, lines, flare kit, throw ring, fire extinguishers, bell
  • • Wheel Puller for ship propellers
  • • Chocks
  • • 10-man life raft
  • • 2sets of bed linens on all berths with pillows and towels
  • • Dinner china including dinner/salad/dessert plates, soup bowls, tea cup and saucers, casserole dish, salt & pepper shakers
  • • Flatware including steak knife, dinner knife, fork, spoon and dessert/teaspoon, salad forks, serving spoons & fork
  • • Table placemats, napkins, water/white/red/champagne wine glasses
  • • Galley cookware/pans.
  • • Toaster, electric mixer, measuring cup, rubber/metal/ plastic spatulas, mixing bowls, chef knives, cutting boards, coffee machine, iron
  • VESSEL SUPPORT (Unique OA Standard feature):
  • • Orientation: Prior to deliver, the owner and/or captain is provided with dockside orientation on the operation of vessel systems by Ocean Alexander personnel.
  • • Customer Support: OA customer support is on-call 24/7 to support owner and crew.
  • Show more
Disclaimer & Exclusions
  • DISCLAIMER:
  • The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
  • EXCLUSIONS:
  • “All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.”
  • Show more

Ready to make your yacht dreams a reality?
