Description & Details

Elegance, comfort, space… the Ocean Alexander 100 Motoryacht is measurably larger than other yachts in its class. Right down to the galley — specified to satisfy demanding charter requirements — you’ll see and feel the 100’s generosity and precision everywhere.

We use inventive aluminum-beam engineering to bring you the most massive window views of any yacht this size. We’ve scaled living space upward in the 100 using strategies usually found only in megayachts. With increased spaces in the galley and crew area, this yacht is perfect for private ownership or charter.

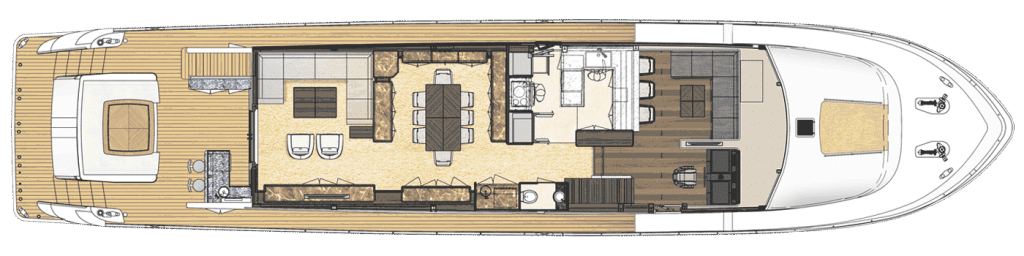

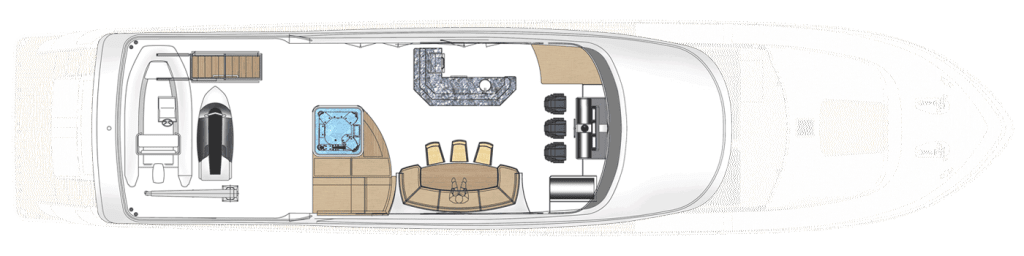

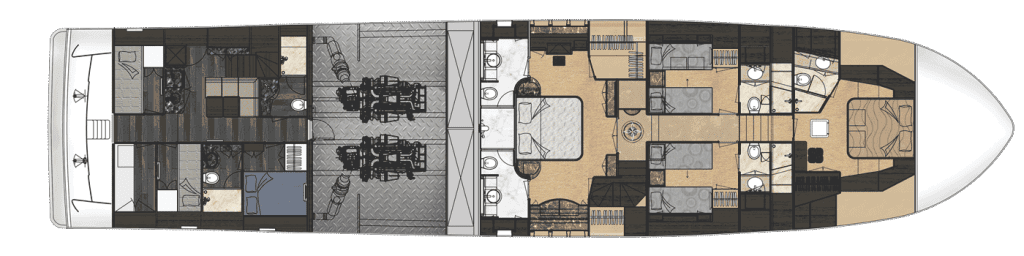

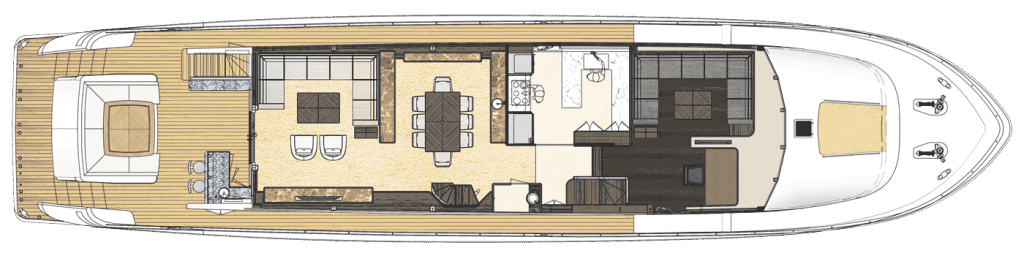

LAYOUT & VESSEL DIAGRAMS

Ocean Alexander 100 Motoryacht
Ocean Alexander 100 Motoryacht
Ocean Alexander 100 Motoryacht
Ocean Alexander 100 Motoryacht
Ocean Alexander 100 Motoryacht
CONSTRUCTION
  • GENERAL:
  • • Vinylester resin with high-density structural foam. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation. (Usually only found in vessels 100’+)
  • • Longitudinal and lateral fiberglass stringers filled with high-density foam
  • • Ocean Alexander employs various techniques to reduce sound and vibration. Focusing on providing a quiet and comfortable yachting environment through various proprietary techniques of controlling sound and noise transmission. Some of these techniques include, multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible and isolation mounts. Ultimately resulting in vibration/sounds levels that are industry leading and at times 1/2 to 1/10 of ISO-6954 requirements (Unique OA feature)
  • • Sylomer floating floor system (Unique OA standard, usually found on 130’+ vessels)
  • • Fiberglass with infusion lamination manufacturing technology
  • • Reinforced collision bulkhead
  • • Frameless window
  • • All exterior hardware to be S/S 316 or to manufacturer requirements
  • • Painted exterior surface with professional grade Alexseal polyurethane paint and epoxy based primers. Highest gloss and color retention compared with gelcoat or other paint brands. Guarantee color match by Alexseal. No fading, yellowing and minimum maintenance with no annual compounded necessary on exterior paint. For first 3 years just use soap and water (Unique OA standard feature, not an optional upcharge like competitors).
  • • Weather-tight bulkheads with further sound and temperature insulation
  • • Marine grade aluminum beams for floors, walls and ceiling. Provides greater rigidity and monolithic structure. Reduces movements and “abrasive” sounds while underway. Also allows for one of the largest uninterrupted glass/window spans in the industry. (Unique OA feature)
  • • Use of cross-knit directional carbon fiber in high stress area for added structural integrity and torsional strength
  • • Fiberglass staircase from cockpit to FB
  • • Engine Foundation: Main engine stringer/foundation will be constructed from S/S plates custom formed to encapsulate over engine structural stringers. Allows for industry leading high support, high level and isolation. King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement. (Unique Ocean Alexander Feature)
  • HULL / BOTTOM:
  • • Black boot top stripe
  • • Interior structural components all bonded to hull
  • • Three coats of Seahawk™ primer, hi-build epoxy barrier coat and covered with three coats of Seahawks selfpolishing polishing bottom paint (Unique OA feature, optional on competitors)
  • • Fiberglass rub rail w/ S/S striking plate
  • • Bronze through-hull fitting
  • Show more
MECHANICAL
  • MAIN ENGINES:
  • • MTU® 12V2000 1920HP engine includes 24-month warranty
  • • Engine alarm system, for low oil pressure and high water temperature
  • • S/S engine beds
  • • Lube oil change system for engines/generators with approximately 45-gallon lube tank. Allows for oil change during cruise w/o need to stop & locate oil change service centers. (Normally found on 135’+ yachts, unique OA feature)
  • • Automated computerized Delta-T® intake/exhaust fans with variable frequency drives shall be mounted to
  • • Stabilizer with power take-off from both engines to provide redundancy (Unique OA feature)
  • • Two control stations: FB & PH, with complete engine instrumentation with lighted, modern switches.
  • • Ocean Alexander employs aerospace grade “autoclave” to make “hard coat” exhaust with AL-6XN alloys (used in Saturn V rocket nozzle). Ocean Alexander is unique in utilizing Military standards that ensures optimum and sustained performance in its exhaust system.)
  • • Engine raw water cooling using cupronickel 90.10 which offers superior corrosion resistance and inherent bioantifouling. (Unique OA Standard Feature, usually found on 150’+ yachts)
  • STEERING / CONTROL:
  • • Hydraulic steering system
  • • Steering control station with complete instrumentation
  • • S/S rudders w/integrated zinc plates
  • • Dripless seal for rudder post
  • • High performance computer designed and machined Nibral propeller
  • • Interior steering wheel, Ultraleather insert, exterior stainless steering wheel on FB
  • • Maintenance free “dripless” seals for engine shaft packing glands
  • • Propeller shaft Aqua 22HS. 22HS is a high-grade austenitic alloy stainless steel that provides superior corrosion resistance (comparable to Aqua 22) along with excellent toughness and high strength (comparable with Aqua 17). A no-compromised approach adopted by navies around the world
  • • Stidd® mechanical helm seats
  • GENERATOR:
  • • Kohler® 55KW genset includes 2-year warranty (2x)
  • • Generator exhausts to be water-drop type per “Centek”, “Marine Exhaust Co.” or equal. Reduces noise & vibration
  • • Generator set resiliently mounted and installed with sound shield & vibration dampener (Unique OA feature)
  • WINDLASS / MOORING:
  • • Dual Hydraulic windlasses, VWCLP4000
  • • Dual stainless steel anchors 350 lbs. from hull sides w/ 250ft anchor chain (1/2" HT) & chain stoppers.
  • • Integral roller and chain stopper with anchor winch
  • • Two vertical electric rope winches for Aft Deck (Standard
  • versus competitors’ optional)
  • • Reinforced anchor platform and anchoring system
  • • Chain counter
  • • Hands-free anchor chain wash system – allows for cleaning of chain during anchor operation (Unique OA feature)
  • • Stainless steel rails on side of engine and stainless steel engine mounting plates (Unique Ocean Alexander engineering affords industry leading torsional rigidity and engine alignment assurance. Further reducing vibration and high torque pressures)
  • • Color-coded piping system for easy identification
  • • Hydraulic 2500 lbs. yacht crane
  • • Fire extinguisher system with engine-shutdown feature
  • • Sea Recovery 1400G/Day water maker w/auto fresh water flush operation, PH Neutralizer, UV sterilizer and Commercial Pre-filter (US Coast Guard 14-person unit, Standard versus competitors’ optional)
  • • Buell™ heavy-duty horn
  • • All engine room and bilge spaces shall be primed and top coated with polyurethane paint system.
  • • Heavy-duty commercial grade pantograph windshield wipers & washers w/ intermittent function
  • • Detailed stringers in engine room & lazarette
  • • Ocean Alexander proprietary “dry bilge ventilation system” with dedicated bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free. Any moisture from condensation is evacuated outside the yacht to keep a clean and healthy cruising environment.
  • • Ocean Alexander design in oversized shafts, rudder and other drive train systems typically one-class larger than competition. Superior handling, longevity is ensured with Ocean Alexander drive-train systems.
  • Show more
PLUMBING
  • FRESH WATER SYSTEM:
  • • 2mm thickness 316 S/S water tank w/ sight gauge
  • • Headhunter™ pressure fresh-water system
  • • Fresh-water outlet with hose for engines & generator
  • • Cold fresh-water wash down at bow, stern and boat deck
  • • Dockside water connection
  • • Dual Racor® fuel/water separator with Y-valves for generator
  • • Gulfcoast™ Fuel polishing system based on US Military Abrahams-M1 Tank design (Standard versus competitors’ optional)
  • • Dual MTU® fuel filter w/ remote readout of filter performance. (Unique OA standard, usually found on 150’+ vessels)
  • • Filler for fuel tanks on both sides with individual tank vents (Unlike others where fueling is only possible on 1 side. This unique OA feature allows for concurrent and faster fueling & negates need to move boat to complete fueling)
  • • Fuel system with venting and “catchment system” designed for burps or overflow accidents (Unique OA feature. Often ignored by competitors which can lead to high fines and insurance cancellation)
  • HOLDING TANK SYSTEM:
  • • ECOmar™ waste treatment system (600Gal/day)
  • BILGE / DISCHARGE:
  • • Oversized drains to overboard
  • • Automatic bilge pump - The vessel shall be outfitted with automatic bilge pump with manual and automatic switches in each space as divided by weather-tight bulkheads. High water alarms will be mounted in each of these bilge zones
  • • High water bilge alarm at every Rule® bilge pump station
  • • Dry bilge area arrangement in center engine room
  • • Lighted bilge with built-in (when necessary) S/S ladder (Unique OA Feature)
  • Show more
ELECTRICAL
  • AC / DC SYSTEM:
  • • AC outlets throughout
  • • All primary AC & DC electrical wiring is appropriately labeled throughout the yacht
  • • GFI (110V) AC outlet in potential “wet” areas. In addition, entire boat is dual protected via ELCI Octoplex breakers. (OA is unique in the industry to provide dual protection GFCI & ELCI)
  • • 24 Volt system
  • • Engine battery isolation switches
  • • AGM Batteries with 40°F to 140°F operating temp and industry leading low self-discharge rates 1 to 3% Octoplex NMEA 2000 Monitor Network electrical control system
  • • Based on aerospace technology for remote activation, control and status reporting of AC and DC breakers. Monitors power sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication, dimming and usage information with touch screen monitor that is user reconfigurable. Brown-out configurable control through auto load shedding is included where operator designated equipment (e.g. navigation and other essential systems) remains powered-on while automatically switching other systems off. Octoplex NMEA 2000 Vessel system monitor system. Provides main access doors, tank level, bilge level and battery monitoring of current, voltage and temp. (Unique OA standard feature, not an optional uncharge like competitors)
  • LIGHTING:
  • • 24V LED lights (Aerospace quality, specially tuned color temperature for Ocean Alexander
  • • Convenience lights
  • • International navigation lights NAVIGATION PACKAGE (Standard versus competitors’ optional, savings valued at $100,000+):
  • • Garmin 8600 Series Black Box with 24” Touch screen (Two screens lower station, Two screens upper station)
  • • Garmin GRID remote input device installed on helm chair
  • • Garmin 25KW Open Array Radar
  • • Garmin Autopilot GHC20
  • • Garmin VHF and Card Reader
  • • Garmin Blackbox sounder
  • • Garmin AIS with NMEA GPS
  • • Garmin Marine Camera (2 in engine room and 1 aft deck)
  • • Triband HD7 with DIRECTTV® receivers
  • • Ritchie Compass 5"
  • • iPad with built-in Garmin App for navigational control/viewing via iPad
  • • Shore power receptacle with Iso-Boost 2 x 100 AMP in transom w/cable master (OA is unique in making this a standard vs. optional. Cleans & boosts questionable shore power to better protect sensitive equipment onboard.)
  • • 100 AMP Chargers
  • • Heavy-duty batteries
  • • Battery paralleling system w/ control switch
  • • Service battery switch
  • • Bonding system throughout
  • • The vessel's bonding and grounding systems shall include copper straps secured to the hull and running the full length of the vessel parallel to centerline. Engines, generators, metallic through hulls, strainers, and pump bodies shall be connected to the bonding strap using 8 AWG wire minimum or equivalent
  • AIR CONDITIONING:
  • • Dometic® chilled water system air conditioning system, rated for “Extreme Tropical Climates” with reverse cycle for operation down to 40°F water temp (OA standard equipment, not an optional upcharge like competitors)
  • • Refrigerant type is accepted worldwide under the Montreal Protocols
  • • Dedicated engine room air conditioning
  • • Where possible A/C exits from custom made ceiling panels hidden from view. Shortens A/C ducting thus improving efficiency and speed of cooling by over 20%. Also reduces dB reading by over 7 dB (Design cues from 135)
  • • Navigational electronics standard versus optional with
  • competitors N2KVIEW SAFETY & SECURITY MONITORING PKG:
  • • These security/safety automatic monitoring and alert abilities include using Apple iPad or Android for wireless access to operate, view, and alarm Octoplex data and navigation system with a fully customizable screen layout, and remote notification (cell phone) capability.
  • • These monitoring abilities include: Main Engines and Generators, AC Monitoring, DC House Bank Battery Monitoring, Engine Room Weather-tight Bulkhead Doors, Tank Levels, Fire System, Bilge Level (High-water), Exterior
  • Door Sensors
  • • Unique OA standard feature, not an optional uncharge like competitors
  • OTHER:
  • • Onboard intranet, driven by commercial-grade 4G SIM card capable Wi-Fi router. Allows outside 4G Internet card and/or internal intranet net connection via supplied iPad to Systems monitoring, Garmin and other onboard equipment apps. (Unique OA feature)
  • • Vimar™ switches and outlets
  • Show more
ACCOMMODATIONS/INTERIOR, AUDIO/VIDEO
  • • King-sized berth (with independently coiled his & her sections to ensure minimal transfer of movement. Unique Ocean Alexander Feature)
  • • Two nightstands with stone countertops
  • • Stone countertop at TV cabinet and port/STBD cabinets (Design cues from 135)
  • • Hidden safe in hanging locker
  • • Sylomer floating floor
  • • Walk-in closet on port side.
  • • Hanging closet space on STBD
  • • Enlarged windows with custom engineered solution incorporating aluminum beams and “sandwiched glass” construction technique from classed vessels. Allows of 28% greater visibility and incoming light
  • • Custom headboard with recessed indirect lighting
  • • Cedar-lined, twin full-height hanging locker with automatic lighting
  • • Enlarged Master bathroom window with updated cabinetry to take advantage of additional 320% additional window visibility vs. previous port light Incorporate (where possible) A/C outlet from ceiling, provides unobstructed view to outside (Design cues from 135, improved for 2016)
  • • Sylomer floating floor and wall
  • • Sub Zero™ refrigerator
  • CREW QUARTERS:
  • • Largest crew quarters in its class with Ocean Alexander’s unique design, the crew quarters doubles as a Cabana. Allows for day head and rest/eat area for swimming/out of water activities without needing to access salon/main deck interiors.
  • • Cedar-lined hanging locker with automatic lighting
  • • Kitchenette (sink, microwave, cooktop and refrigerator/icemaker)
  • • Storage locker
  • • Drawers under bunk
  • • Microwave Oven
  • • Captain quarters includes desk with storage and N2KView linked Apple IPad for systems diagnostics/alerts/settings. Full height hanging closet and queen size berth with storage under
  • • Dedicated stainless work bench with vice and Snap-on tool chest. Also includes a wet locker (with ventilation and separate water drain) and storage compartment. All staterooms fully air-conditioned
  • INTERIOR DÉCOR:
  • • Wood paneling and cabinetry in semi-gloss
  • • Interior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look. (Design cues from 135)
  • • Evan Marshall designed interior pilot station and display pod. With matching wood/Ultraleather and “floating” display pod. Ergonomically designed and laid out to enhance pilot experience/performance. (Design cues from 135)
  • • Custom designed and water jet cut stone with stainless steel insert in lower foyer and master bathrooms. (Design cues from 135)
  • • Carbon monoxide and smoke detectors
  • • High quality European door locks
  • • Cedar-lined, hanging locker with auto lighting
  • • Fabric covered walls for lower walkway walls
  • • Concealed hinges throughout interior cabinets
  • • Ergonomically designed mattresses and settees
  • • Washer/ dryer (Commercial quality, Energy star washer/dryer) in lower foyer
  • • Refrigerator in lower foyer
  • • Port/Star staterooms side-by-side berths can slide together and convert to single queen berth.
  • SKYLOUNGE (OPTION):
  • • Cabinet including wet bar, Sub Zero™ wine cooler w/ solid panel door and storage (Skylounge)
  • • Wood valance board
  • • Wood table
  • • Settee with table
  • • Day head
  • • Chart locker
  • SALON:
  • • Wood paneling and cabinetry
  • • Evan K Marshall custom design salon furniture and sofa. Sofa includes concealed drawers for intelligence use of space and increase storage
  • • Stone countertop at wet bar, TV cabinet, and dining room divider cabinet
  • • Custom designed window mullion
  • • Decorative ceiling treatment
  • • Phantom screen (for insects + pollen protection) with dedicated wood box for door
  • • Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse.
  • SALON:
  • • Wood paneling and cabinetry
  • • Evan K Marshall custom design salon furniture and sofa. Sofa includes concealed drawers for intelligence use of space and increase storage
  • • Stone countertop at wet bar, TV cabinet, and dining room divider cabinet
  • • Custom designed window mullion
  • • Decorative ceiling treatment
  • • Phantom screen (for insects + pollen protection) with dedicated wood box for door
  • • Enlarged windows in salon with custom engineered solution incorporation marine grade aluminum beams allowing for industry leading window expanse.
  • GALLEY:
  • • Wood panel and cabinetry with positive-latch doors or proprietary drop-lock drawers. Provides containment of stored objects while underway (Std. feature often ignore by competitor)
  • • Galley storage cabinetry w/hidden hinges
  • • Stone countertops
  • • Stone floor in galley
  • • Elkay™ professional series kitchen sink w/ pull out tap
  • • Exhaust blower
  • • Overhead dish locker fwd & aft
  • • 30” Thermador™ electric cook top
  • • 30” Thermador™ electric oven
  • • Sub-Zero® Refrigerator/ freezer
  • • Sub-Zero® ice maker
  • • Sub-Zero® wine cooler
  • • Whirlpool™ garbage disposal
  • • 30" Viking™ Over-the Range Microwave with exhaust blower
  • • Jenn-Air™ dishwasher
  • • 15” Whirlpool™ trash compactor
  • • Seagull™ water purifier (ADEX design award winner w/ filtration to 0.1 microns & EPA certification for microbiological purification)
  • HEADS:
  • • Wood paneling and cabinetry
  • • Stone countertops with china sink
  • • Seamless fiberglass stall shower w/ one-piece glass door. Industry leading seamless one-piece shower stall design provides long term protection against moisture, water intrusion behind the shower panels - leading to foul odors and water damage (Unique OA feature)
  • • Shower door shall use “crystal clear” glass custom made for Ocean Alexander. Providing superior transparency and reflectiveness. Together with custom made for Ocean Alexander “minimalist and transparent water strips” provides a unique Ocean Alexander proprietary “Crystal Shower”
  • • Cabinet with mirror door above sink
  • • Air extraction in each head shall be by low noise extraction fans
  • • Tecma™ toilet system throughout with unique Ocean Alexander proprietary “Toilet lock out” system. Provides “lock out” of flushing when holding tank is full. Prevents accidental spillage or “blow back” often found on competitor yachts. Tankage status and alarm is standard via N2KView monitoring system.
  • • Custom bathroom fixtures
  • • Stone countertops and back splash in heads with china sink
  • • Crew quarters w/private head, shower and refrigerator
  • EXTERIOR:
  • • Evan Marshall designed exterior pilot console and display pod - with contrasting metallic dark grey and metallic silver and “floating” display pod. Ergonomically designed and laid out to enhance pilot experience/performance (Design cues from 135)
  • • Hardtop with dedicated custom S/S ladder to navigational electronics (Standard versus optional with competitors)
  • • 2” elliptical 316L Stainless steel handrails & stanchions, main deck 1-1/2” on FB. Elliptical conforms better to human grip than traditional round rails. Provides greater “grip strength” for safety and comfort (Unique OA feature)
  • • 316 stainless-steel cleats
  • • Elec. stainless-steel sliding doors for salon and sky lounge with safety light curtain that senses obstruction and protect for grandkids/pets. Also includes “foot-kick button” control for operation when both hands with full food trays/other items.
  • • Largest flybridge area in its class with Ocean Alexander’s “cab-fwd” design, the flybridge steering station is moved fwd to allow for better visibility and lengths the total flybridge area available for entertaining.
  • • Two S/S flag poles, fore and aft.
  • • Teak and stainless swim ladder, foldable
  • • Weather-tight door on transom for access to engine room/ crew quarters
  • • White non-skid fly bridge decks
  • • 32” Electri-Chef™ electric barbecue custom-made for OA using 316 S/S, versus competitors’ 304 materials.
  • • Flybridge seat w/storage underneath and high gloss table
  • • High bulwark w/ flush-mounted deck lights
  • • Side boarding gates in cockpit
  • • Sunpad at bow
  • • Flybridge deck outboard storage increased by 54% via additional storage lockers on port and starboard where possible
  • • Exterior ceiling panels removable and finished with Diamond faceted edging. Provides a sharper and structured tailored look. Also allows for easy service of navigational electronics and plumbing runs. (Design cues from 135)
  • • Custom designed fender storage at bow/chain locker/lazarette
  • TURN KEY:
  • • Safety first aid kit
  • • Fenders, lines, flare kit, throw ring, fire extinguishers, bell
  • • Wheel Puller for ship propellers
  • • Chocks
  • • 2 x 8-man life raft in canister
  • • 2sets of bed linens on all berths with pillows and towels
  • • Dinner china including dinner/salad/dessert plates, soup bowls, tea cup and saucers, casserole dish, salt & pepper shakers
  • • Flatware including steak knife, dinner knife, fork, spoon and dessert/teaspoon, salad forks, serving spoons & fork
  • • Table placemats, napkins, water/white/red/champagne wine glasses
  • • Galley cookware/pans.
  • • Toaster, electric mixer, measuring cup, rubber/metal/ plastic spatulas, mixing bowls
  • • Chef knives, cutting boards, coffee machine, iron
  • VESSEL SUPPORT (Unique OA Standard feature):
  • • Orientation: Prior to deliver, the owner and/or captain is provided with dockside orientation on the operation of vessel systems by Ocean Alexander personnel.
  • • Customer Support: OA customer support is on-call 24/7 to support owner and crew.
  • Show more
Disclaimer & Exclusions
  • DISCLAIMER:
  • The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
  • EXCLUSIONS:
  • “All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.”

Ready to make your yacht dreams a reality?
