Description & Details
Fantastic opportunity to own a truly custom 65 Pacific Mariner; her updates began in 2008 with a new interior including cherrywood cabinetry, custom bar in salon, and granite counters. Electronics were replaced in 2017 with the latest Garmin equipment available. Too much to list here, please call for more details.
RARE OFFERING & LLC OWNED
PRELIMINARY SPECIFICATIONS AND PHOTOS
THE REPRESENTATION
Highlighted Details & Specifications

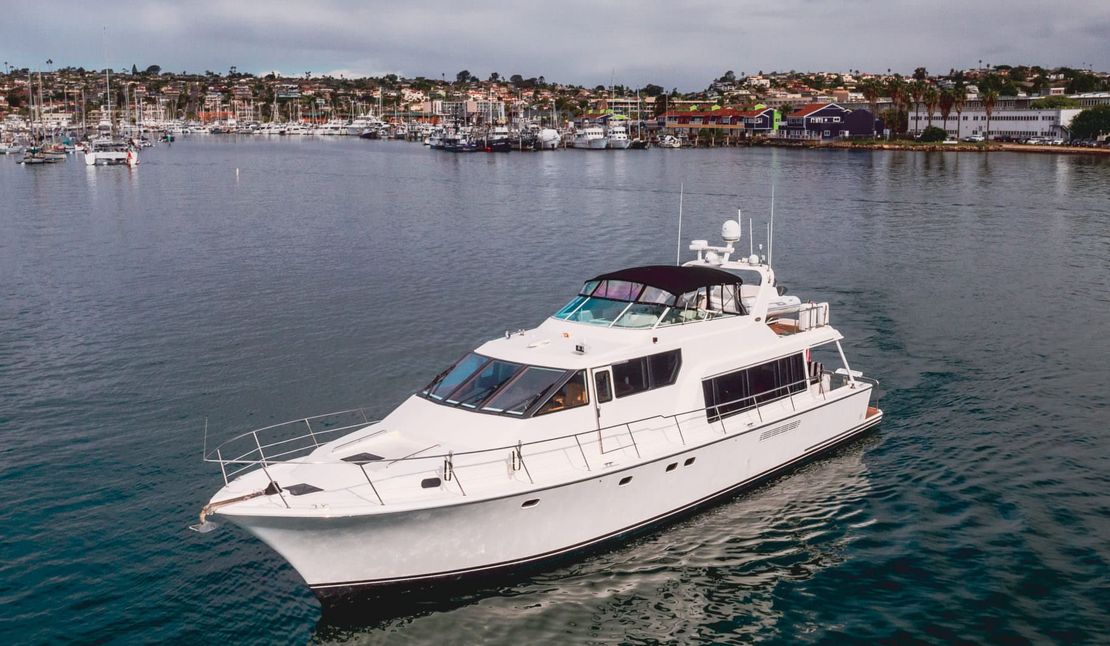

Vessel Overview
- The Pacific Mariner 65's broad windows invite the horizon into a spacious pilot house where full instrumentation and a complete electronics package reside in easy view. Sliding doors open to port and starboard decks, and teak stairs ascend to the flybridge. The intelligently equipped galley features full-sized appliances that include a side-by-side refrigerator, dishwasher, microwave, range with oven, trash compactor, and disposal. Below decks offers a layout seldom found in a 65' yacht; 3 cabins with ensuite heads!
- In the master stateroom, a king-size walkaround bed is covered in designer linens and boasts a massive ensuite head with a tub/shower. The portside guest stateroom offers twin berths with ensuite head and glass stall shower. The bow VIP cabin features a queen walkaround berth with ensuite head with separate stall shower. Creature comforts in each of the staterooms include cedar-lined, lighted, hanging lockers, individual room temperature controls, reading and accent lighting, TV's with DVD's, and opening portlights with screens. Reigning above it all is a soaring flybridge designed for easy entertainment alongside a fully equipped helm station.
Custom Interior
- Custom Interior Remodel (2008/09; $400K)
- Cherrywood Cabinetry w/ S/S Handles & Knobs
- Black/Taupe Granite Countertops (Salon, Wet Bar & Galley)
- Hunter-Douglas “Duette” non-rattle window shades throughout
- LED Lighting upgrade throughout (2016)

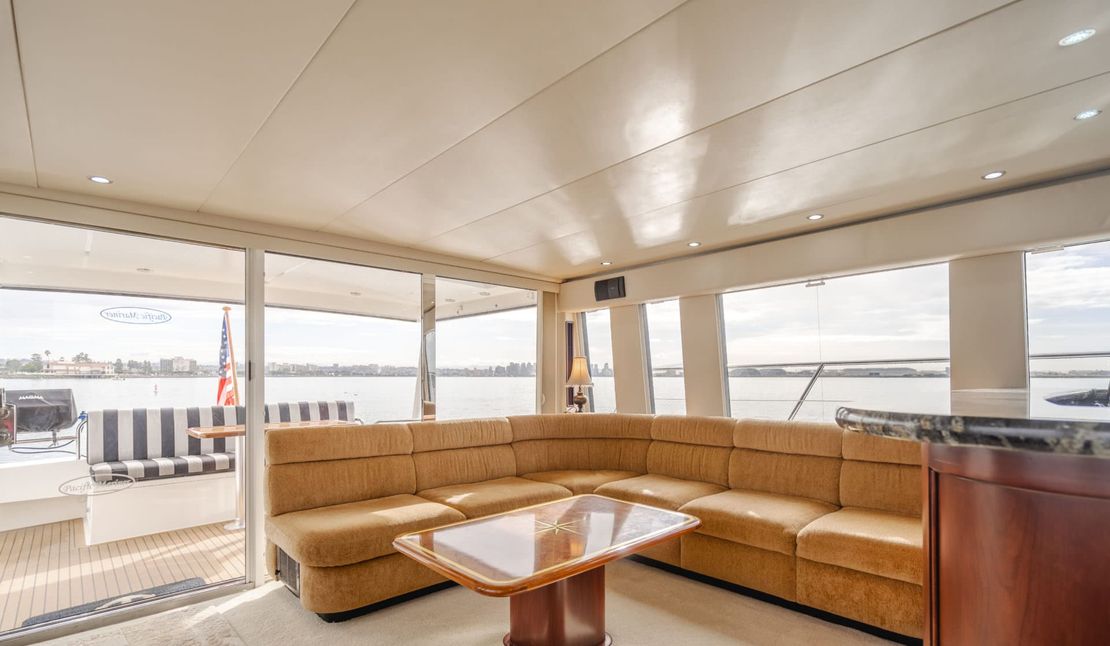

Salon with Custom Configuration
- One of a kind Custom Wet Bar w/ Granite Counter Top
- S/S Sink, U-Line Refrigerator & Ice Maker
- Lite Glassware Display Case, Wine Glass Rack & Recessed Arched Mirror
- Lite Glass Door Liquor Cabinet w/ Acrylic bottle holders
- Bar Storage Cabinet and integral Trash Bin
- Custom 4-Door Round Cabinets for Entertainment System and Ship Library
- Custom Starboard side Cabinetry with Granite Counter Top, Wine Rack and remote control Disappearing 46” Flat Screen TV w/ Granite top lid
- Bose Surround Sound Entertainment System
- Variable height Salon Coffee Table (electric)
- Full width Hunter-Douglas accordion “Duette” Shades for Patio windows
- Color coordinated protective Carpet runner in Salon walkway
- Protective Canvas carpet covers for Runner & Salon steps
- Show more
Galley
- Like the rest of the yacht, the Galley has been completely updated. The galley features full size stainless steel appliances, beautiful Cherry Cabinetry and Granite Countertops.
- Appliances
- Whirlpool 21 c.f. Side by Side Refrigerator/Freezer, Ice & Water in Door
- Whirlpool 30” Drop-in Electric Oven & Stove Top w/ S/S Backsplash
- Whirlpool 1.4 c.f. Microwave Oven
- Double S/S Sink with Garbage Disposal & S/S Spray Head Faucet
- Whirlpool Dishwasher (full size)
- Jenn-Air Trash Compactor
- A/C & Heat Digital Controls Panel
- Show more
Pilothouse
- Large Dinette with Custom wood table, seating for 6 & under cushion storage
- 2 – “Pompanette Platinum Series” Capitan’s Chairs (Pilothouse Helm)
- Twin sliding Pilothouse doors with new locks and weather seals (2017)
- 3 - Hunter-Douglas “Duette” retracting Windshield sun shade blinds (2017)
- 2 - Garmin GPS/MAP 7616 Touch Screen Plotters with Sonar & Camera Display
- Garmin Premium “BlueChart” G2 “Vision” HD Software Upgrade (2017)
- Paper “Backup” Charts (Mexico-Alaska) (2017)
- 2 - Garmin GMR-20 Displays
- ICOM M506 VHF Radio
- Twin Detroit Diesel DDEC III Digital Engine Displays
- Fully Electronic Single Lever Throttles & Transmission Controls
- ComNav P4 Autopilot with G2 Satellite Navigation Compass
- Naiad “Roll” Stabilizer Controls
- Bow Thruster Controls
- Tank-Watch III Black Water Level Indicator Panel
- Sea Recovery RO Water Maker Indicator Panel
- KVH Trac-Vision Tracking Satellite TV Dish Control Panel
- Iridium “GO” Global online Smartphone Accessed Satellite Phone (2018)
- A/C & Heat Digital Controls Panels
- 12/24vdc Circuit Breaker Panel
- Show more
Electronics
- Complete Upgrade 2017/19; $69K+
- Garmin GMR “Fantom-4” 72mi Open Array Pulse Doppler Radar (main)
- Garmin GMR 18HD 36 mi Radar (backup)
- Garmin GPSMAP 7616xsv Plotters (2 – 16” in P.H.) w/ Sonar
- Garmin GPSMAP 7612xsv Plotter (12” in F.B.) w/ Sonar
- Garmin Premium “BlueChart” G2 “Vision” HD Software Upgrade (2017)
- Mexico to Central California
- San Diego, CA to Vancouver, B.C.
- Puget Sound, WA to Dixon Entrance, B.C.
- Dixon Entrance B. C. to Wrangle, AK
- Wrangle / Juneau / Sitka, AK
- Garmin GPSMAP 5212 Plotter (F.B. Backup Camera Screen)
- Garmin GMR-20 Displays (3x – P.H., F.B. Aft Deck Patio Bulkhead)
- Garmin AIS600 (AIS Transponder/Receiver)
- Garmin N2K Heading Sensor
- Garmin GPS 19x HVS Smart GPS Antenna
- Garmin GXM53 Satellite Weather Module
- ICOM M506 VHF Radios (2x - P.H. & F.B.)
- Airmar 220WX Ultrasonic Weather Station Antenna
- 4 - KJM C55 HD Auto Day/Night Cameras (2 – Eng. Rm. & 2 –Aft Deck)
- Maretron 410 Display (F.B.)
- Maretron TLA100 Tank level Adapters (3x – Fuel 1, Fuel 2 & Water)
- Fusion MS-BB300R AM/FM/XM/BT Audio w/ Alpine Audio Speakers (F.B.; 2017)
- Polk Audio RC65i Speakers (2x - P.H. Ceiling)
- Comnav P4 Autopilot (P.H.) (2019)
- Comnav TS4 Remote (F.B.) (2019)
- Comnav G2 Satellite Navigation Compass (2019)
- Iridium “GO” Global online Smartphone Accessed Satellite Phone (2018)
- Airmar Thru-Hull Sonar Transducers (2x)
- Newmar 7 Station Intercom Phone System
- 4 - TV’s “re-wired” to view different SAT channels simultaneously (2016)
- Show more
Staterooms
- King Master with custom folding mattress to access storage (2017)
- Kenwood Am/FM/XM/BT Stereo system w/ JVC Speakers (Master; 2019)
- VIP with Queen bed completely remodeled (2019)
- Ocean-Air Hatch Shade/Screen in VIP (2019)
- Side by Side Twin beds in Guest Stateroom
- Marble Flooring in Hallway and all bathrooms
- Hidden LED step lighting at Spiral Staircase (2017)
- Custom Acrylic Banister in Spiral Staircase
- Protective Canvas Step Covers at Spiral Staircase (2018)
- Cedar Lined Closets with Door triggered LED lighting (all)
- Ship’s Electronic Safe under Guest Closet floor (2017)
- Custom upholstered Headboards in Master & VIP
- Flat Screen TV’s w/ DVD players in Staterooms (3x)
- Bug Screens for all Port Holes
- Custom Wallpaper throughout
- Custom Storage Cabinetry Port side of Master (in lieu of Setae)
- Custom Cabinetry in Master Bath in lieu of Bide
- Custom Mirror at Desk in Master
- Show more
Engines and Mechanical
- Twin Detroit Diesel 8V92TA’s with DDEC-III full electronic controls
- 760HP ea. (2,740 total hrs.)
- 1,300 hrs. SMOH in 2012 @ $60K
- Compete “Crank-up” Rebuild (Bearings, Piston/Liners, Heads, Blowers, Turbos, etc.)
- Rebuilt Heat Exchangers on Mains (2019)
- “Twin Disc” Transmissions (electronic shift, w/ mechanical backups)
- 2.5” Main Shafts w/ PSS Dripless Shaft Seals (new Shaft Seals 2019)
- 34 x 32 - 5-Blade Nibral Propellers (Re-Pitched/Balanced 2016)
- 2-Spare Propellers in custom E.R. holding cabinet
- Performance: (Actual)
- 22+ knots @ WOT (2,300 RPM)
- 15-16 knots @ 1,800 RPM @ 49-50 gph (Fast cruise)
- 11-12 knots @ 1,400 RPM @ 27-28 gph (Med. cruise)
- 10 knots @ 1,100 RPM @ 14 gph (Slow cruise)
- Range: 675-700 nm @ 10 knots w/ 15% Reserve
- Mechanical, Engine Room & Safety
- 2 - Northern Lights Generators
- 1 X M844 20 Kw 220v 4-Cylinder w/ Hydraulic PTO (2,900 hrs.)
- New fuel injection pump (2018)
- 1 X M753 8 Kw 220v 3-Cylinder (1350 hrs.)
- Accu-Steer HRP35-24 reversing Autopilot Pump (new 2018)
- Seastar Teleflex hydraulic power steering w/ Intercooler (Intercooler rebuilt 2018)F.B. Docking Station w/ Throttles, Thruster Control & Aft Camera Display Screen
- 2 Helm stations w/ full electronics (Pilothouse & Flybridge)
- 25 HP Hydraulic Bow Thruster
- 1,100 gal. Fuel, Twin 550 gal Aluminum Tanks (New Sight Gage tubes 2018)
- 2 - Engine Room Cameras (2017)
- 4 – Handheld Fire Extinguishers (Salon, Galley, Master Stateroom & Lazerette)
- Kiddie “FyreWatch” Automatic Fire Extinguisher System w/ Indicator Lights
- Fireboy Manual/Automatic E.R. Fire Extinguisher System (P.H., F.B. & Patio Controls)
- 2 - Glen-Dinning Cable Master 50 amp Power cords (75’ ea.) (Port & Starboard)
- 6 – 12v 8D WGM Batteries in series for 24vdc (4 house, 2 start) (new 2016)
- Magnum MS4024 - 4 Kw Inverter/Battery Charger (2013)
- Naiad “Roll” Stabilizers (electronic + auto centering in Reverse) (2012 upgrade)
- Sea Recovery 600 gal/day Reverse Osmosis water maker w/ Slim Line Filters (484 hrs)
- 275 Gallon Stainless Steel Fresh Water tank
- 110 Gallon Black Water Holding tank
- 30 gal Torrid S/S Hot Water Heater
- 3 - Head Hunter “Royal Flush” fresh water toilets (2009 upgrade; total rebuild 2017)
- Remote Macerator “Y”- Valve Control for easy access (2017)
- New Macerator Pump (2019)
- 2-Man “Crew Qtrs.” In Lazerette; Converted to Work Shop (2016)
- Aqua Air Reverse Cycle A/C & Heat (new Pumps & Valves 2016)
- A/C & Heat Digital Controls Panels (Salon, P.H., Galley, 3 Staterooms & Lazerette)
- 6 - 750 watt Ceramic Heaters (Salon, Galley, 3 Staterooms & Lazerette)
- 10 - Bilge Pumps w/ automatic Float Switches
- 1 – 500 gph (Shower Sump) w/ Manual control in Master Head
- 4 – 500 gph (Low Water) w/ Manual control in Pilothouse
- 5 – 2,000 gph (High Water) w/ Manual control in Pilothouse
- Show more
Lazerette
- Whirlpool “Thin-Twin” 220vac Washer/Dryer with Sink
- Whynter 3.3 c.f. Dual Voltage Freezer (12vdc &110vac) in (2017)
- Crew Quarters converted to Workshop with Workbench, Vise, Storage & LED Lighting
- Portable Wet/Dry Vacuum cleaner
- Electric Head w/ separate holding tank & Macerator (toilet removed for more storage; plumbing, etc. still intact, included)
Deck and Equipment
- White Hull w/ Black Bottom Paint & Trim (Bottom Paint 05/2109)
- Side Window Exterior Perimeters painted Gloss Black (upgrade 2013)
- Black F.B. Canvas Bimini with full Isinglass Enclosure
- 2 – “Premier” Capitan’s Chairs (Flybridge Helm)
- F.B. Helm & Docking Station Electronics Canvas Covers
- “Plas-Teak” Vinyl Teak Decking (Swim Step, Patio, F.B. & Boat Deck) (2016; $25K)
- Simpson-Lawrence V-3000 Windlass w/ Canvas Cover (new “spare” drive motor 2016; $900)
- 75# CQR Plow Anchor w/ 300’ 3/8” G4 chain rode
- 2 – Double S/S Fender Racks (in Anchor Locker) (2018)
- Salt & Fresh Water Wash-Down (in Anchor Locker)
- Spare Plow & Danforth Anchors w/ 300’ of 5/8” rode (swim step)
- 2 - Simpson-Lawrence Warping Winches on P & S aft side decks
- Magma “Catalina” BBQ w/ Spun Glass 4 gal Propane tank (Patio; 2016)
- 3 – 2” dia. Swim Step Staples
- 4 Rung S/S Telescoping Swim Ladder (2017)
- Magna “Fish Cutting” Table
- Fishing Rod Holders; Patio overhead at corners (2x)
- “Suprax” Paddle Board Rack
- Custom Wood Patio Table (2009)
- S/S & Teak Boat Deck Patio Ladder (removed, in storage)
- Show more
Tender and Safety Gear
- Viking “RescYou Pro” 6-Man Self-Righting & Self-Deploying Life Raft (2018)
- “Life-Sling” Man Overboard Harness (2017)
- Standard Horizon 6 watt VHF “Floating’ Radio (in F.B. Ditch Bag; 2018)
- 2 – Cold Water Immersion Suits (1-Lg; 1-Med.; 2018)
- 1,500# “Nautical Structures” Hydraulic Davit w/ portable remote control
- 2016 14’ AB RIB Dingy, Seats 6 ($30K)
- 20 gal Internal Fuel & 9 gal Internal Water Tanks
- 60 HP Yamaha EFI o/b (90hrs) w/ Spare Prop
- Lifting Sling
- White Bottom Paint (05/2019)

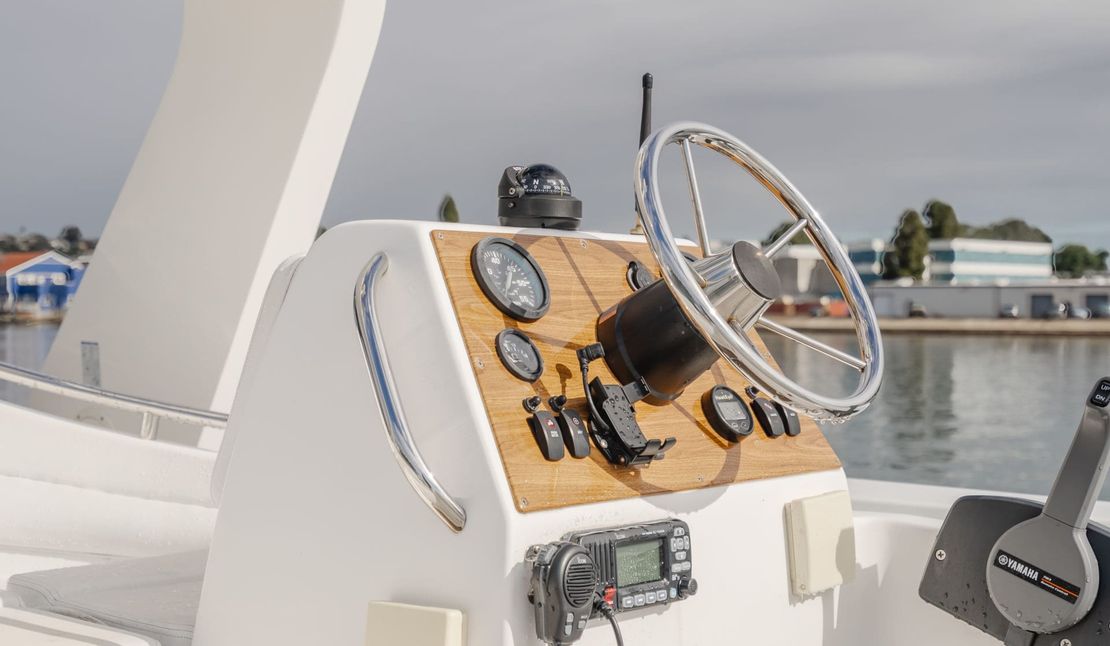

- Instrumentation: Speed, Tach, Fuel, Voltage, Depth, Compass
- Garmin GPSMAP Plotter & Mount (can be handheld)
- ICOM M424 VHF Radio
- Custom Canvas Cover
- AB RIB Deck Chocks w/ Custom Cross Braces
- Show more
Refit/Upgrades/Service History
- 2007-2009 Major Interior Custom Refit $400,000
- Cherry Cabinetry Throughout
- Granite Countertops (Salon, Bar & Galley)
- Salon Bar, w/ Sink, U-Line Frig. Mirror, Bottle & Wine Rack, Stemware Rack
- Disappearing 46” Flat Screen TV with Granite lid
- ½ Round, 4-door Cabinet in front of F.B. Stairs
- Marble floors in downstairs Hallway & Baths (3x)
- Custom Headboards (Master & VIP)
- Custom Cabinet Storage in lieu of Setae (Master)
- Head Hunter fresh water Toilet System (3x)
- Custom Wallpaper throughout
- Acrylic Spiral Staircase Handrail
- KVH Satellite TV Tracking Dish
- Custom Patio Table
- 2012-2013 Major Mechanical Refit $175,000
- Complete “crank-up” main engine rebuilt on both
- Detroit Diesel 8V92 DDEC III @1,400hrs (due to lack of use)
- Naiad Computer controlled Hydraulic Stabilizer System
- Docking “Side Controls” @ Flybridge
- 4KW Inverter/Battery Charger
- 2016-2019 Current Owners Upgrades $215,000
- (2016)
- Bottom Paint, Propellers Re-Pitched, Rudders Re-Pack, New Batteries (all)
- Exhaust Bellows Hose, Bands & fiberglass exhaust tube w/ inner bands
- Add 2016 AB 14DLX Inflatable w/ 60HP Yamaha
- Add “Plas-Teak” Decking (Patio, Swim Step & Boat Deck)
- Add Paddle Board Rack, Dock Lines, Fenders
- Propane BBQ, Mount, Tray, Cover, Tank
- Add Spare Simpson Lawrence Windlass motor (spare)
- A/C Service/Replace - New chiller pump, regulator, 2 circuit boards, rewire)
- Engine Service (Valley Power Systems)
- - Oil/Filters, Transmission Oil, Fuel Filters, Coolant change, Oil Filter Lines
- - Rebuild 7 Graco Water Strainers
- - Exhaust Bellows Hose, Bands & fiberglass exhaust tube w/ inner bands
- Replace “Raw Water” Wash down pump & add “Fresh Water” wash down
- (2017)
- Survival Gear
- Viking RescYou Pro 6-Man Life Raft (Deck Canister, Deck & Rail mount, Hydro-Release)
- Cold Water Survival Suits (2)
- Life-Sling-2 Man Overboard Sling & Line
- EPRIB
- Navigation Electronics/Equip. Upgrade (see separate list)
- Complete Garmin Navigation Electronics Suite w/ 72mi Doppler Radar
- Garmin “Vision” Navigation Software (Mexico – Alaska)
- New Autopilot Hydraulic Pump
- Iridium-Go Satellite Hotspot w/ External Antenna
- Flybridge DDEC III Engine Display Monitors (2)
- Backup Camera System w/ 12” Monitor
- Bluetooth Crew Communication Headsets
- New Jabsco Spotlight (255SL)
- Interior R/R & Upgrades
- LED Lighting Throughout
- Salon Aft Window Hunter-Douglas Blinds (Walker Interiors)
- Pilothouse Windshield Hunter Douglas Blinds (3) (Walker Interiors)
- VIP Stateroom Remodel (Ocean Beach Upholstery)
- Custom King Mattress, Folding (Master)
- Direct Sat TV Rewire (4 Rooms; each can watch any channel)
- Head Hunter Toilet System Rebuild (3x)
- Custom “Y-Valve” pump out Remote Control system
- Macerator Pump (new)
- Head Pressure Lines Replaced
- Head Hunter pump, check valves, vented loop, filters (new)
- Equipment Service/Repairs/Additions
- R/R Windshield Spray Pumps & Wiper Blades (3x)
- Sea Recovery RO Water Maker New Filters/Housings
- Swim Step Boarding Ladder
- Dual Voltage Freezer in Lazerette
- Fish Cutting Table & Mount
- Shower sump rebuild w/ Remote Switch & Indicator Light in Master
- Spare Aft Anchor & Rode (5/8” x 300’)
- (2018)
- Power Steering Intercooler R/R + new fittings
- New Canvas
- - Windlass Cover
- - Side Control Cover
- - Spiral Staircase Step Covers
- - Salon Steps & Runner Cover
- - F.B. Side Controls
- (2019)
- 20KW Generator Injector Pump Rebuild (Valley Power Systems, Inc.)
- Main 8V92 Heat Exchanger R & R Service (Miller Marine)
- ComNav P4 Autopilot w/ TS-4 Remote & G2 Satellite Compass
- Boat Yard Haulout (05/19) (Shelter Island Boat Yard)
- Bottom Paint (incl. RIB)
- New PSS Dripless Shaft Seals (Mains)
- Show more
Disclaimer
- Exclusions:
- All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.
- Disclaimer:
- The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
- Show more
Additional Photos & Video
ADDITIONAL OPPORTUNITIES
Seattle, WA
49' 2020 Tiara
This vessel has been owned and operated by and experienced yachtsman and fully maintained by professionals. Her beautiful lines and shimmering hull will delight …
San Diego, CA
- $269,000
54' 1995 Mediterranean
A remarkable fishing vessel with a range of impressive features. The cockpit controls, bow thruster, bow and cockpit live bait tanks, outriggers, and …
Newport Beach, CA
- $1,249,000
45' 2015 Palm Beach
A simply magnificent vessel, whose Palm Beach heritage is respected and sought after world wide, offering the smoothest ride on the water and extremel …
Newport Beach, CA
- $1,995,000
54' 2022 Riviera
This Yacht is a combination of pure luxury, astonishing technology, and thoughtful Riviera practicality. She is truly a masterpiece on water! Notab …
