Description & Details
For people who want to cruise further afield, without giving up the comfort and elegance of Azimut yachts, but whose real destination is the carefree frivolity of the journey itself. Magellano is always gentle and safe in navigation and has a limited fuel consumption thanks to the innovative Dual Mode hull and its wide range of cruising speeds. The interior spaces were designed for long stays on board, with welcoming living areas and spacious cabins.

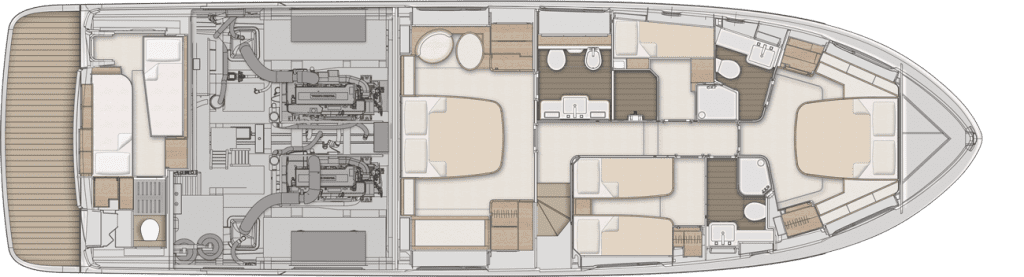

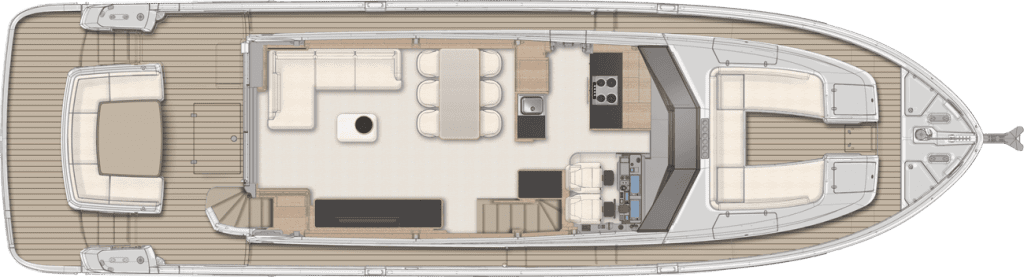

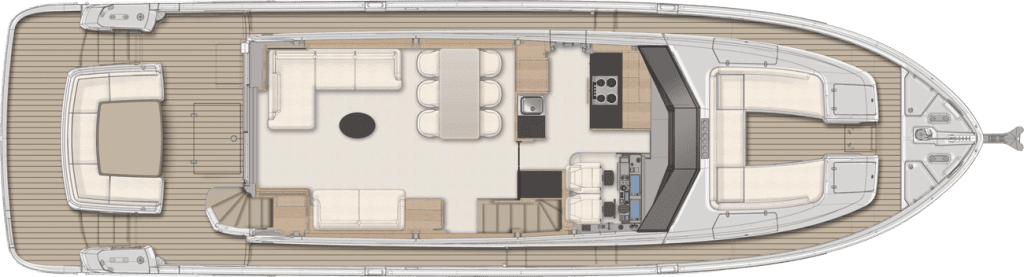

LAYOUT & VESSEL DIAGRAMS
Highlighted Details & Specifications

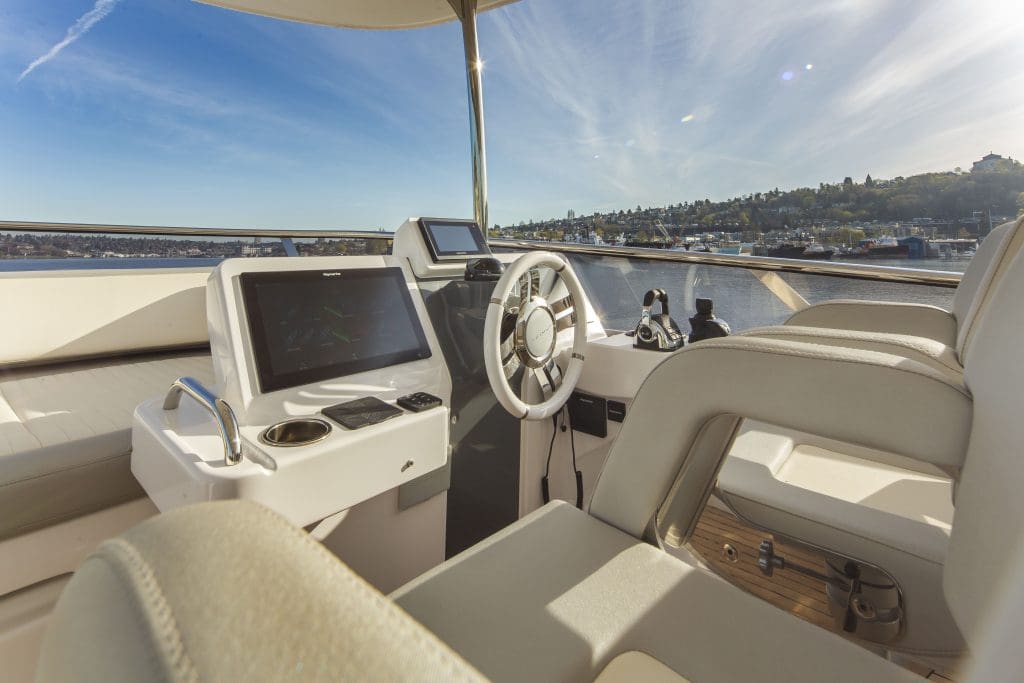

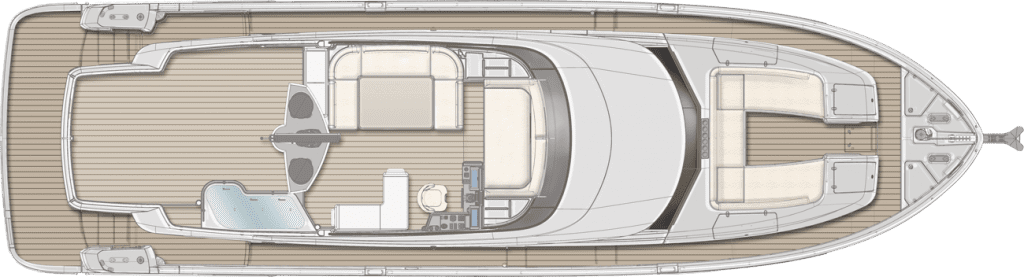

Flybridge
- Access from cockpit via a fiberglass lad- der on starboard side, with teak steps and a built-in locker
- Fore sofa/sunbed area with spacious locker
- Access door in aluminum and Plexiglas
- Handrails and pulpit in stainless steel, complying with EN-ISO and ABYC (U.S.A.) standards
- Steering system with 2 seat on starboard side.
- Steering wheel in painted aluminum and stainless steel
- Fixed table in teak, with stainless steel support, for 8 people
- Sofa, with open compartments
- Plexiglas flybridge screen with stainless steel frame
- Storage space and glass-holders created in the molding
- Fiberglass module located on the star- board side, with the sink and cold water tap, barbecue, and fridge
- Port side cupboard in GRP, with shelves suitable for housing a self-inflating life raft
- Fiberglass mast for housing:
- - navigation and riding lights
- - VHF aerial
- - electro-pneumatic horn
- - flag pole
- - shower head + shower mixer tap for hot and cold water Flybridge dashboard consisting of:
- - control levers for Volvo Penta engines/marine gears
- - Raymarine AXIOM XL series electronic navigation instruments
- - 7” multifunction display for controlling the engines (Volvo Penta)
- - Volvo Penta engine stop/start controls
- - Bow thruster controls
- - chain meter counter controls
- - general boat alarm indication integrated in the Raymarine display
- - bow winch controls
- - horn controls
- - auxiliary / spare controls
- - trim tab position indicators and controls
- - Remote Control depth searchlight, 12V
- - Magnetic compass
- Show more
Deckhouse / Bow / Walk arounds
- Deckhouse
- Windows in tempered glass, glued to the superstructure
- Set of black net window covers
- Deckhouse with front sunguard visor for better protection against sunlight and heat. Also useful in bad weather condi- tions, both when under way and when moored
- Side windows in Europa gray. Front windows in a neutral shade
- 1 horizontal sliding window (manually operated) with hermetic “flush” closure, located near the steering system
- 1 side door (with hopper window) for accessing the walk arounds, located on port side of galley area
- 3 windscreen wipers with washer
- Red/green navigation lights
- Bow chain washing pump
- Self-draining anchor chain locker and divisions for housing 8 fenders (diam. 30cm) "Delta" 40Kg galvanized steel anchor
- Galvanized steel anchor chain, diam. 3/8" x 246 Ft
- Stainless steel bow roller and bow shield
- 2300 W anchor winch
- 2 stainless steel cleats
- 2 stainless steel chocks-hawses (at the bow) Fore sofa/sunbed area with spacious lockers Walk Arounds
- 4 stainless steel amidships cleats (on gunwale) Handrails near cockpit
- Teak gunwale
- Stainless steel pulpit
- 1 fresh water refill cap (on walk around)
- 1 black water suction plug (on walk around)
- Water drainage on walk arounds
- 2 refueling plugs located on the sides of the deckhouse
- Show more
Cockpit and Platform
- Cockpit
- Cockpit floor in teak
- Flybridge access ladder in GRP, with steps in teak
- Access to platform via 2 side decks
- Stainless steel/Plexiglas gates to protect access to stern platform
- Saloon door in stainless steel with 2 sliding panels
- C-shaped cockpit sofa seating 6, with cushions; lockers underneath
- Access to the engine room from the door
- Scuppers on cockpit bulwarks (self-draining)
- 2 cleats with stainless steel chocks in the cockpit
- Switch panel (main and emergency switches) in starboard locker
- LED spotlights on cockpit ceiling, with dimmer
- Platform
- Foldaway swimming ladder (manually operated) under door
- Manual shower head with hot and cold water
- PVC rub-rail with stainless steel profile (on platform edge)
- Floor in teak
- 2 cleats at the aft hull end
- INSTALLABLE TENDER (OPT):
- - MAXIMUM DIMENSIONS OF TENDER - PLATFORM: 4.10 x 1.785m
- - LIFT PAYLOAD EXCLUDING GRP, TEAK AND LADDER: 500 kg
- Show more
Wheelhouse
- Located in forward area of starboard side on main deck, in raised position
- 2 helm seats, adjustable pilot seat (elec- trical lifting only), fixed co-pilot seat. Stainless steel handrail
- Steering wheel
- Housing for DC/AC electric panel
- Dashboard consisting of:
- - 1 Volvo Penta 7” multifunction display with diesel level indicator
- - Raymarine AXIOM XL series electronic navigation instruments
- - Volvo Penta engine start display
- - Chain washing pump controls
- - Battery parallel controls
- - Alarm mute controls
- - Steering area light controls
- - Red spotlight control for night-time navigation
- - Windscreen wiper and washer controls
- - bow winch controls
- - horn controls
- - auxiliary / spare controls
- - Trim tab position indicator and controls
- - Bow and stern thruster controls
- Control and monitoring/alarm panel integrated in the Raymarine displays:
- - bilge pump activation
- - gray water tank level
- - display for electric energy source conditions
- - timed control for draining gray water tank
- - timed control for draining holding tank
- - fresh water level gage
- - warning for tenderlift submersed with engines running
- - crew cabin door open alarm
- - high temperature of engine gas raisers
- - shore power connection active
- - engine room ventilation controls
- - navigation light and riding light controls
- Show more
Saloon / Dinette
- Saloon
- Satin-effect walnut furniture
- Saloon/dinette/galley floors all on one level
- 1 “L” shaped sofa, on aft port side
- Lounge table
- Saloon door curtain in fabric
- LED lighting, with dimmer
- Roman blinds for side windows, as far as the dinette area
- Dinette area at center of main deck
- Rectangular table with 6 chairs
- Access stair on starboard side, leading below deck
- Show more
Galley
- Located in forward part of saloon, on port side
- Low cupboard on starboard side (behind steering system) refrigerator
- Freezer with total capacity of 220 liters
- Countertop in thick black HPL slab
- Hot/cold mixer tap
- Stainless steel sink
- Extractable waste bin
- Cabinet with shelves, storage area and rubbish bin
- Ceramic glass 4-hob range and silicone pot holder
- Extraction hood
- Microwave oven
- Kitchen area floor in light oak laminate
- Show more
Corridor / Stairs
- LED walkway lights on steps
- Handrail on stairs
- Cabinet for accessories
Owner's Cabin
- Amidships, “full beam”
- Direct access to head
- Carpeted floor
- Double bed positioned longitudinally, with storage area (separate compartments) underneath accessed by lifting the bed base
- Mattress, pillows and bedspread
- Bedside tables with storage compartments
- Headboard mirror
- Vanity unit with seat positioned against port bulwark.
- Long, low cabinet with 2 drawers and 4shelves, on starboard side
- 2 large panoramic windows with openable portlights, d.250mm
- Wooden Venetian blinds
- Wardrobes with hanger bar and shelves, on port and starboard sides
- 230V AC sockets
- LED lighting
- 2 table lamps at sides of bed
- Show more
Owner's Head
- Located on port side, with direct access from cabin.
- Window with oval, openable portlight
- Wash basin and hot/cold water mixer tap
- Wash basin top in agglo marble, with storage compartments
- Mirror
- Cabinet under the washbasin with panels (towel rail) on shower side and towards the cabin Air extractor in the shower enclosure
- Walnut floor with a non-slip finish
- Separate shower enclosure with tempered glass door
- Shower support with adjustable height + shower head on ceiling, with mixer tap/flow diverter Shower compartment lighting
- Black aluminum Venetian blind
- High gray water level alarm
- Tecma toilet with control panel and visual alarm for full tank
- 230V socket
- Emergency exit (towards main deck) in ceiling
- accessory set consisting of:
- - 1 toilet brush
- - 2 hooks
- - 1 toilet roll holder
- - 3 towel rails
- - 1 soap holder
- Show more
VIP Cabin
- Located at the bow of the below deck area
- Direct access to private head, on port side
- Double bed with tip-up structure for accessing the locker below
- Mattress, pillows and bedspread
- Carpeted floor
- Cupboard with shelves (port side)
- Wardrobe with hanger bar, mirror and shelves (starboard side)
- Wall cabinets on the bulwark
- Shelf with storage compartments next to bedside table
- Headboard mirror
- 2 LED wall lights/reading lights at sides of headboard
- Windows on both sides, with openable oval portlights
- Shelves - bedside table
- Hatchway on ceiling, with foldaway mosquito net and blind
- Wooden Venetian blinds
- 230V AC sockets
- Show more
VIP Head
- Located on port side, with direct access from VIP cabin
- Washbasin top in agglo marble
- Hot/cold mixer tap
- Mirror
- Cabinet with door under the washbasin
- Wall unit
- Washbasin
- Walnut floor with a non-slip finish
- Separate shower enclosure with tempered glass door
- Shower support with adjustable height and thermostatic mixer tap
- Shower compartment lighting
- Electric air extractor in the shower enclosure
- Openable round portlight on bulwark, diam. 300mm
- Black aluminum Venetian blinds
- High gray water level alarm
- Tecma toilet with control panel (drainage/no drainage, with visual alarm for full tank) LED lighting on ceiling
- 230V AC socket
- accessory set consisting of:
- - 1 toilet brush
- - 2 hooks
- - 1 toilet roll holder
- - 1 towel-holder bar
- - 1 soap holder
- Show more

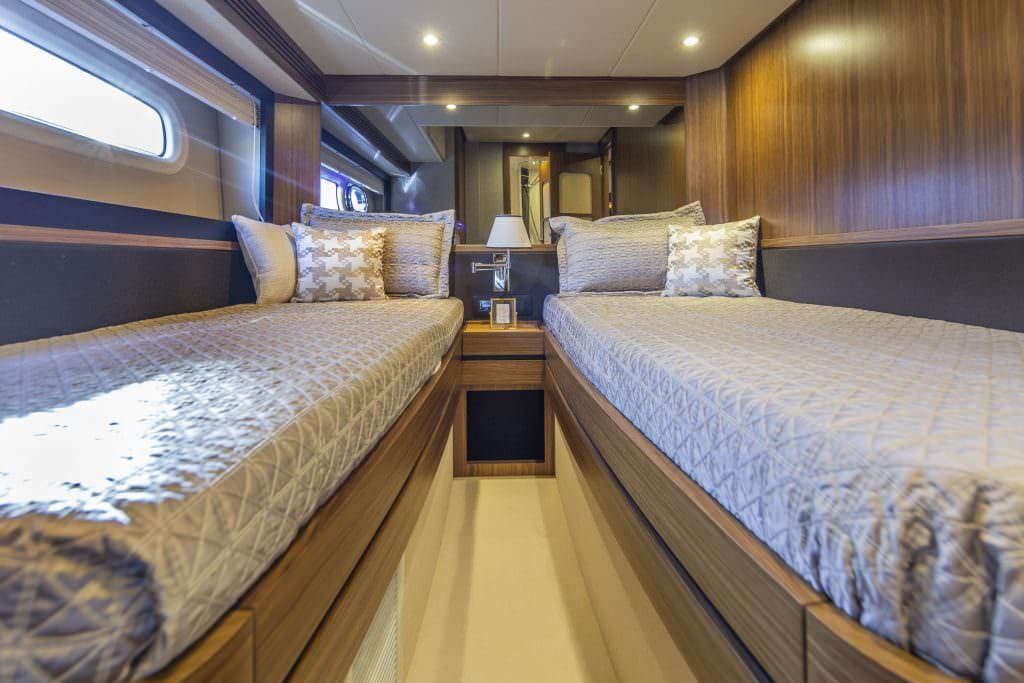

Guest Cabin (Third Cabin)
- Located on starboard side of below deck area
- Access from corridor
- 2 single beds, side-by-side
- Mattresses, pillows and bedspread
- Central bedside table (with storage compartment) between the 2 beds Window with oval, openable portlight
- Wardrobe with hanger bars, shelves (headboard mirror) Wall unit
- Overhead LED spotlights and LED reading lights
- 230V socket
- Wooden Venetian blinds
- Storage compartments beneath the beds
- Show more

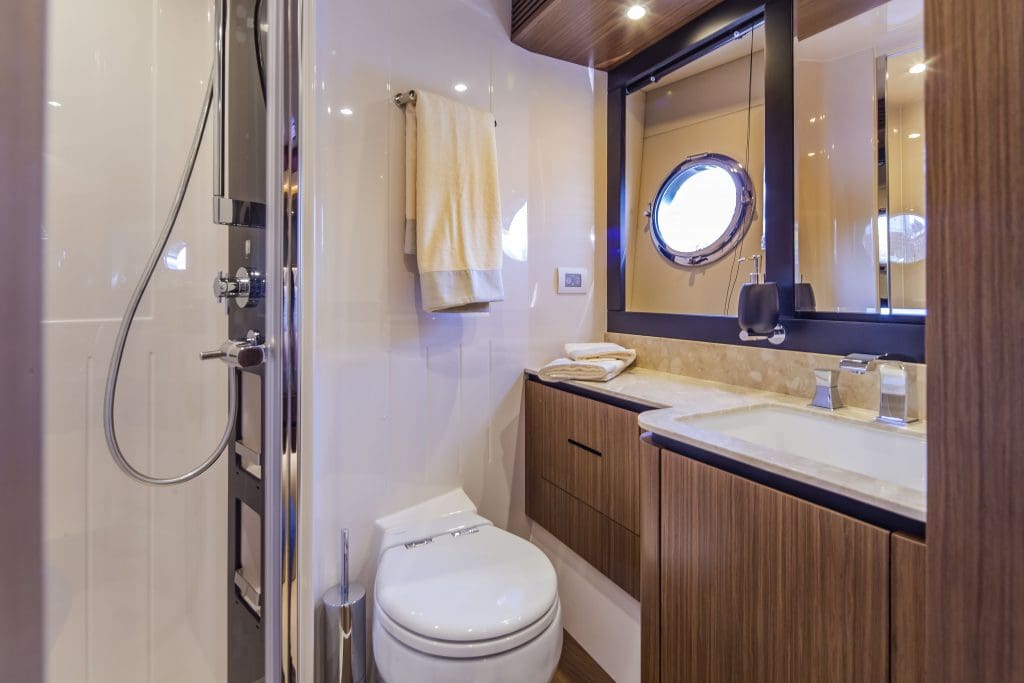

Guest Head
- Located on starboard side, with access from guest cabin and corridor Washbasin top in agglo marble
- Hot/cold mixer tap
- Mirror
- Cabinet with door under the washbasin
- Wall unit with door
- Washbasin
- Walnut floor with a non-slip finish
- Separate shower enclosure with tempered glass door
- Shower support with height adjustment and hot/cold mixer tap
- Shower compartment lighting
- Air extractor in the shower enclosure
- Openable round portlight on bulwark, diam. 300mm
- Black aluminum Venetian blinds
- High gray water level alarm
- Tecma toilet with control panel (drainage/no drainage, with visual alarm for full tank)
- 230V AC socket
- accessory set consisting of:
- - 1 toilet brush
- - 2 hooks
- - 1 toilet roll holder
- - 1 towel-holder bar
- - 1 toilet brush holder
- Show more
Fourth Cabin with 2 Beds (OPT Configuration)
- Located on port side of cabin area, accessed from the corridor
- LED lighting
- 1 round openable portlight, d. 300mm
- Wooden Venetian blinds
- Carpeted floor
- Electric and hydraulic fittings for air conditioning circuit
- 1 230V AC socket
- 2 bunk beds
- Mattresses, pillows and bedspread
- 2 LED reading lights
- 230V AC sockets
- Cupboard with shelves
- Storage compartments
- Carpeted floor
- Wooden Venetian blinds
- Show more
Crew Room
- Crew cabin
- Access via ladder with door on port side (access from platform)
- 2 single beds (1 foldaway)
- Mattresses, pillows and bedspread
- 2 cabinets with hanger bars
- Shelves
- Panoramic windows facing towards stern platform
- Cloth blind on the panoramic window
- Crew head
- Access from crew cabin
- Mirror
- Wall unit
- Washbasin with hot and cold mixer tap
- Cabinet
- Non-slip floor
- Shower compartment lighting
- Oval, openable portlight with blind X 2
- Tecma toilet with control panel (drainage/no drainage), with visual alarm for full tank 1 230V AC socket
- accessory set consisting of:
- - 1 toilet brush
- - 2 hooks
- - 1 toilet roll holder
- - 1 toothbrush holder
- Show more
Electric System
- Main characteristics
- Electricity supply powered from shore power socket or generator
- Onboard voltages:
- - 230V-50Hz AC
- - 24V DC
- - 12V DC
- Electric panels with switches and instruments in engine room, saloon, and steering area and junction boxes in the various areas
- Button for temporary parallel emergency activation of service/start battery sets
- Power circuit breakers to protect the input lines (shore and genset)
- Galvanic current insulation
- Zinc anodes
- Generator
- 1 21.5 Kw 230V generator in engine room
- Shore power sockets
- 1 shore power socket near the cockpit. They are activated by means of remote control switches.
- Batteries
- Services: 6 AGM type batteries, 90Ah 24V DC
- Engines: 4AGM type batteries,70Ah 24 DC
- Generator: 1 AGM type battery, 70Ah 12V
- Bow thruster: 24V battery set, 70Ah (4)
- 24V 80A battery charger: Services and engines / thruster
- 12V 12A battery charger: Generator
- Battery cut-out switches
- Lights and sockets
- AC sockets: Type B plug sockets, standard Italian socket. Other socket standards are available for the specific destination market.
- DC sockets: 12V cigarette lighter (flybridge)
- USB charging socket in the internal wheelhouse
- 24V lighting (LED)
- 230V socket in engine room
- LED lighting system, with STD dimmers in saloon and cockpit
- 24V watertight external lights (LED)
- Show more
Electronic Navigation Instruments
- For STD equipment, see “flybridge dashboard equipment” and “internal dashboard equipment” paragraphs
- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
Bilge System
- 1 centrifugal electric pump 24V with automatic and manual controls, located in engine room
- 1 centrifugal electric pump 24V with automatic and manual controls, located in aft compartment
- 1 low-flow rate electric pump 24V, in the cabin area
- 1 centrifugal electric pump 24V with automatic and manual controls, located in the cabin area
- Warning for pump operation and high level alarms in the monitoring system
- 1 manual pump with crossover valve (2 intake points) beneath starboard guest cabin
- 1 manual pump (activated from cockpit) with crossover valve (2 suction points) in engine room
- 1 manual pump (activated from cockpit) with crossover valve (1 suction point) in the aft area
- Emergency engine bilge drainage via intake connected to the crossover valve of the seawater cooling circuit of an engine.
- Show more
Fire Extinguishing System
- Extinguisher gas cylinder, with mechanical handle activation, in the engine room
- Emergency engine/generator switch-off control in cockpit
Fuel System
- 2 tanks in 5754 aluminum alloy (954 Gal each) in engine room
- Tank interconnection with check valves
- Single electronic level sensor on starboard tank, linked to the Volvo engine display
- Visual level gage on port tank
- 2 refueling plugs on sides of deckhouse, equipped with backflow devices
- 2 vents on bulwark
- Diesel check solenoid valves for engines and generator (with ignition switched on) with manual bypass
- Racor single separator/settling filters
- Fuel drawing tap on both tanks
- Show more
Fresh Water System
- 2 tanks (total 264 gallons)
- Pressure pump
- System shut-off via valves and manifolds
- Toilet flushing with fresh water
- 80-liter water heater with 1200W electrical resistance, with thermostatic mixer valve, to guarantee greater autonomy.
- Level gage integrated in the boat monitoring system
- Water level sensor with pressure pump blocking if there is no water.
- Hot and cold water lines in the heads, galley and cockpit.
- Cold water line in engine room
- Hot and cold water line for flybridge sink and shower on GRP mast
- Embarking point on deck walk around (starboard side)
- Show more
Black Water System
- TECMA toilet with macerator built into the base
- 132 gallon collection tank beneath cabin area
- TECMA control panels with an indicator of the operating status, system drainage interlocking indicator if the tank is full.
- Level gage integrated in the boat monitoring system
- Container drainage via intake vent on deck (port side)
- Outboard discharge via specific line, with timed electric pump on container outlet (can only be used where local legislation permits it)
- Show more
Gray Water System
- 79 gallons collection tank (for drainage from showers, washbasins and sinks) beneath cabin area
- Container drainage with automatic or manual timed control.
- Level gage and alarm integrated in the boat monitoring system
- Indicator lights and audible alarm in heads, for high gray water level
- Shower drainage pipes with drain-tap and removable filter to facilitate cleaning
- Level sensor with automatic pump and alarm control from the wheelhouse Water drainage via manifolds (24V membrane pump)
- Show more
Ventilation/Extraction
- Engine room:
- - Natural ventilation via openings on the bulwarks, with external stainless steel grids and anti- mist profiles (that trap direct water spray and vaporized water from the outside)
- - Ventilation: 2 extractors 24V, connected to engine starting keys, with automatic and manual controls
Seawater System
- Engine cooling system: includes 2 seawater intakes with filter and valve (1 per engine)
- Generator cooling system: includes 1 seawater intake with filter and valve
Other Systems
- Steering system: hydraulic power steering.
- Trim tab system: consisting of 2 AISI 316 blades, operated by a hydraulic cylinder, each controlled by a dedicated hydraulic control unit
- Engine gas exhaust system:
- - "damp" gas exhaust with cooling water injection, with thermally insulated stainless steel manifolds and structural mufflers in fiberglass.
- - submerged gas exhaust vent windows and minimum bypass on hull sides
- - acoustic and visual alarm for high exhaust gas temperature on the monitoring system Engine room (further details):
- - routine engine room access via door in cockpit
- - access to the engine room for engine removal operations via hatches below the saloon floor - soundproofing and sound-absorbing paneling
- - engine room lighting provided by fixed LED lamps and 1 portable lamp
- - through-hull fittings for propeller shaft with mechanical ring seal in graphite, PSS type
- -bronze fittings for seawater intakes and outlets beneath the waterline
- Show more
Air Conditioning System
- Water system, WORLD SPEC version
- 1 compressor in engine room (92,000 total BTU)
- 1 seawater pump with relevant intake
- Each area has its own independent control panel
- 2 adjustable and closable delivery outlets in steering area
- Fancoil also in the fourth cabin (closet)
- Show more
Equipment
- 1 telescopic boat hook
- 5 dock lines
- 24 m fender lines
- 1 anchor chain stopper
- 8 fenders
- 8 black fender covers
- 1 Owner's Manual
- 1 AZIMUT document holder
- 1 AZIMUT warranty service booklet
- 1 stainless steel cutlery service
- 1 set of china plates
- 1 set of glasses
- 1 set of stainless steel cooking pans
- 4 sets of towels (with logo)
- 1 clock with glossy brass case
- 1 barometer with glossy brass case
- 4 floating key-rings
- 1 bag (with logo) for storing the manuals 1 remote control holder (with logo)
- 1 routine maintenance kit for steel
- Show more
List of Options
- • Teak on side decks
- • Fourth cabin with 2 beds
- • Under water lights (nr.2)
- • N. 1 Seakeeper stabilizer NG16
- • Central vacuum system
- • Dishwasher in galley
- • Wooden floor in salon, galley and helm station (colour varies depending upon main furniture wood selection)
- • Additional Seakeeper control station on fly
- • Hard top on fly with electrical awning
- • Teak on flybridge
- • Salon furniture on starboard side with sofa and predisposition for hi-lo system for TV (TV and Hi-lo system not included)
- • Sofa bed in salon
- • Lounging sofas on aft flybridge (nr.2)
- • Bimini on aft flybridge with removables poles
- • Refrigerator at sight in galley
- • Winecooler in salon
- • Cockpit furniture with ice maker and sink
- • Safe in master cabin
- • Co-pilot seat on fly
- • Cockpit table
- • Extra socket for interior (price each, specify quantity and positions, 110V or 220V as per the yacht electrical system)
- • Additional set of zincs
- • Proportional stern thruster
- • Raymarine videocameras (CAM200IP in cockpit and on fly and AX08 in engine room)
- • Cockpit chair (mod. Oskar)
- • Coffee table at bow area (electrical hi-low system)
- • Set of towels for one person with Azimut logo
- • Set of linen for sofa bed
- • Set of linen for cabins
- • Set of linen for fourth cabin (two beds)
- • Washer and dryer (two separate units)
- • Ray marine AIS 700
- • Raymarine Platinum Package
- Show more
Disclaimer
- Exclusions:
- All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.
- Disclaimer:
- The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Additional Photos & Video
ADDITIONAL OPPORTUNITIES
$1,150,000
64' 2005 Ocean Alexander
"NO MATTER WHAT" is a standout example of the highly sought-after 2005 64 Ocean Alexander Pilot House Motor Yacht. This vessel has been meticulously m …
Seattle, WA
49' 2020 Tiara
This vessel has been owned and operated by and experienced yachtsman and fully maintained by professionals. Her beautiful lines and shimmering hull will delight …
San Diego, CA
- $269,000
54' 1995 Mediterranean
A remarkable fishing vessel with a range of impressive features. The cockpit controls, bow thruster, bow and cockpit live bait tanks, outriggers, and …
Newport Beach, CA
- $1,995,000
54' 2022 Riviera
This Yacht is a combination of pure luxury, astonishing technology, and thoughtful Riviera practicality. She is truly a masterpiece on water! Notab …
